Locking Element RCK 55 (Self Centring)

Name: Chiaravalli Locking Element RCK 55 (Self Centring)
Brand: Chiaravalli

Locking Elements · RCK 55

RCK 55 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for assemblies where limited overall dimensions and times are required. It operates with medium-low torque values.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Select a row to add it to your quote

Size

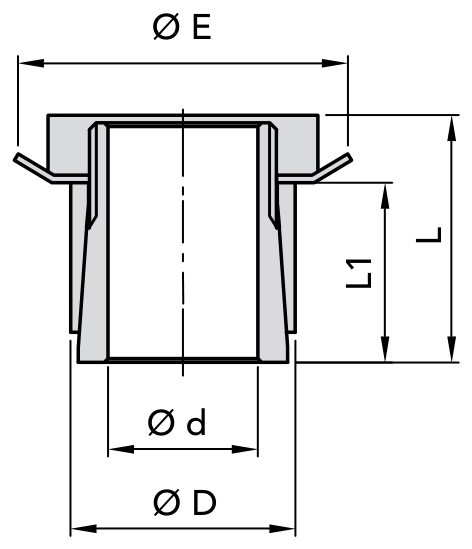

Code	Size Ød × ØD (mm)	ØE	L1	L	Weight
`06550014`	`14 × 25`	`32` mm	`23` mm	`31` mm	`0.1` kg
`06550015`	`15 × 25`	`32` mm	`23` mm	`31` mm	`0.11` kg
`06550018`	`18 × 30`	`38` mm	`24` mm	`33` mm	`0.13` kg
`06550019`	`19 × 30`	`38` mm	`24` mm	`33` mm	`0.13` kg
`06550020`	`20 × 30`	`38` mm	`24` mm	`33` mm	`0.15` kg
`06550024`	`24 × 35`	`45` mm	`29` mm	`38` mm	`0.17` kg
`06550025`	`25 × 35`	`45` mm	`29` mm	`38` mm	`0.17` kg
`06550028`	`28 × 40`	`52` mm	`34` mm	`44` mm	`0.28` kg
`06550030`	`30 × 40`	`52` mm	`34` mm	`44` mm	`0.26` kg
`06550035`	`35 × 45`	`58` mm	`34` mm	`45` mm	`0.26` kg
`06550040`	`40 × 50`	`65` mm	`35` mm	`46` mm	`0.33` kg
`06550045`	`45 × 55`	`70` mm	`35` mm	`47` mm	`0.45` kg
`06550050`	`50 × 60`	`75` mm	`36` mm	`48` mm	`0.66` kg
`06550055`	`55 × 65`	`80` mm	`36` mm	`48` mm	`0.72` kg
`06550060`	`60 × 70`	`85` mm	`36` mm	`50` mm	`0.8` kg
