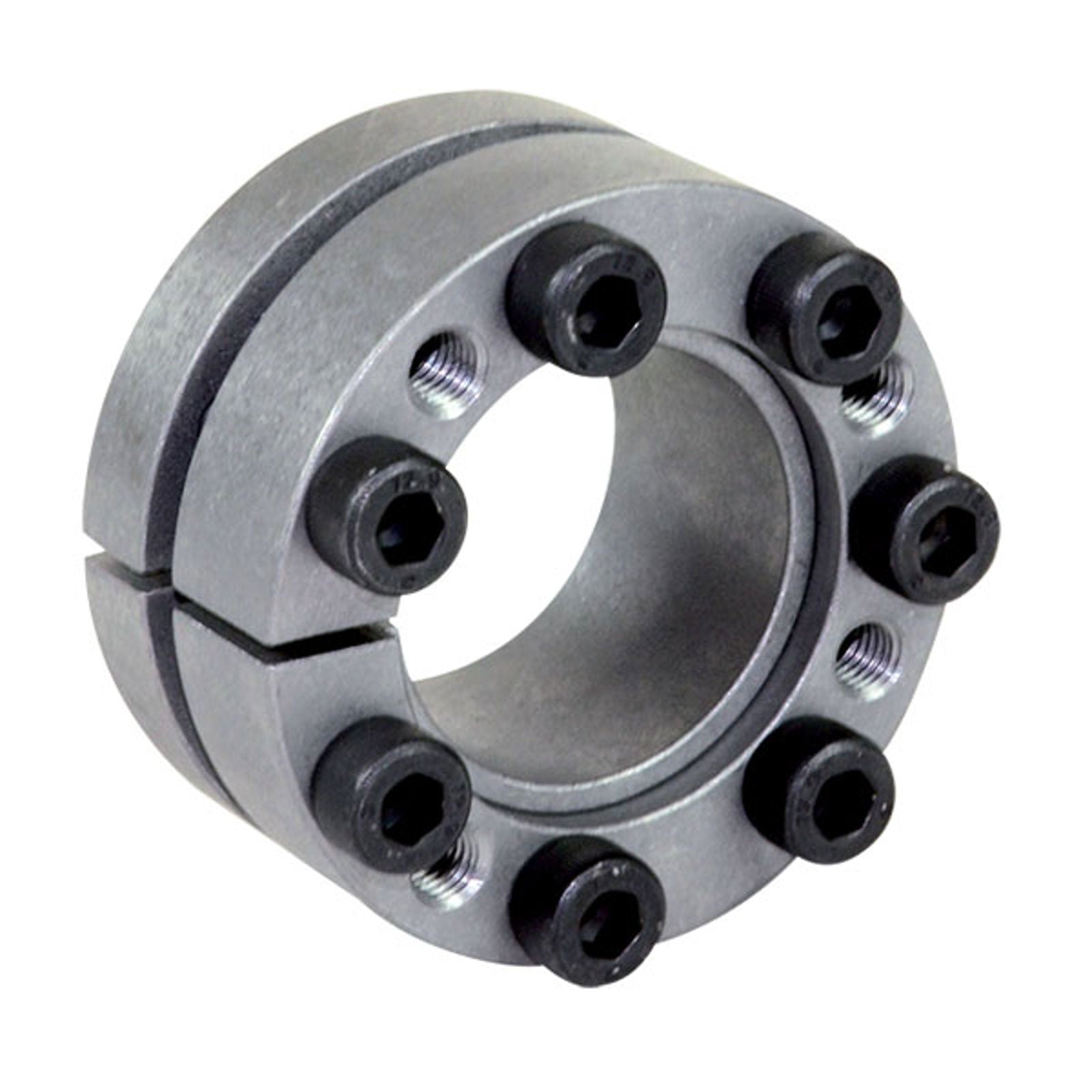

Locking Element RCK 60 (Self Centring)

Name: Chiaravalli Locking Element RCK 60 (Self Centring)
Brand: Chiaravalli

Locking Elements · RCK 60

RCK 60 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for assemblies where a medium-high twisting moment is required. It operates in the opposite mode to RCK 13.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Select a row to add it to your quote

Size

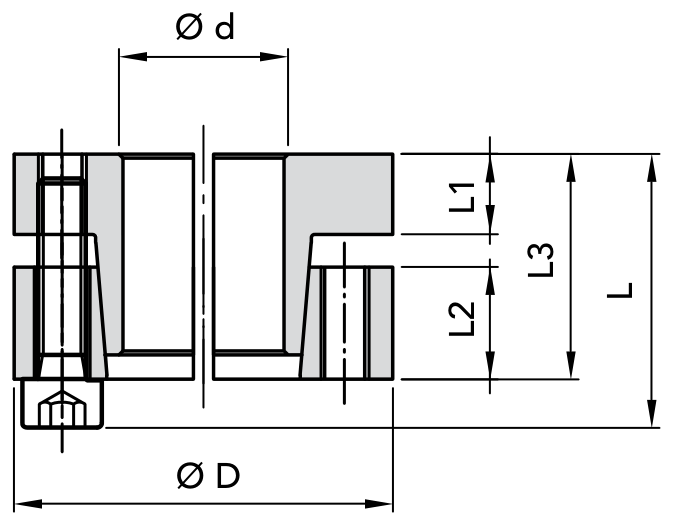

Code	Size Ød × ØD (mm)	L1	L2	L3	L	Weight
`06600020`	`20 × 47`	`10` mm	`14` mm	`28` mm	`34` mm	`0.24` kg
`06600022`	`22 × 47`	`10` mm	`14` mm	`28` mm	`34` mm	`0.23` kg
`06600024`	`24 × 50`	`10` mm	`14` mm	`28` mm	`34` mm	`0.26` kg
`06600025`	`25 × 50`	`10` mm	`14` mm	`28` mm	`34` mm	`0.25` kg
`06600030`	`30 × 55`	`10` mm	`14` mm	`28` mm	`34` mm	`0.29` kg
`06600035`	`35 × 60`	`10` mm	`14` mm	`28` mm	`34` mm	`0.32` kg
`06600038`	`38 × 65`	`10` mm	`14` mm	`28` mm	`34` mm	`0.36` kg
`06600040`	`40 × 65`	`10` mm	`14` mm	`28` mm	`34` mm	`0.34` kg
`06600042`	`42 × 75`	`12` mm	`18` mm	`35` mm	`43` mm	`0.48` kg
`06600045`	`45 × 75`	`12` mm	`18` mm	`35` mm	`43` mm	`0.57` kg
`06600050`	`50 × 80`	`12` mm	`18` mm	`35` mm	`43` mm	`0.6` kg
`06600055`	`55 × 85`	`12` mm	`18` mm	`35` mm	`43` mm	`0.63` kg
`06600060`	`60 × 90`	`12` mm	`18` mm	`35` mm	`43` mm	`0.69` kg
`06600065`	`65 × 95`	`12` mm	`18` mm	`35` mm	`43` mm	`0.73` kg
`06600070`	`70 × 110`	`16` mm	`24` mm	`46` mm	`56` mm	`1.26` kg
