Chiaravalli Locking Element RCK 61 (Self Centring)
Chiaravalli

Locking Element RCK 61 (Self Centring)

Locking Elements · RCK 61

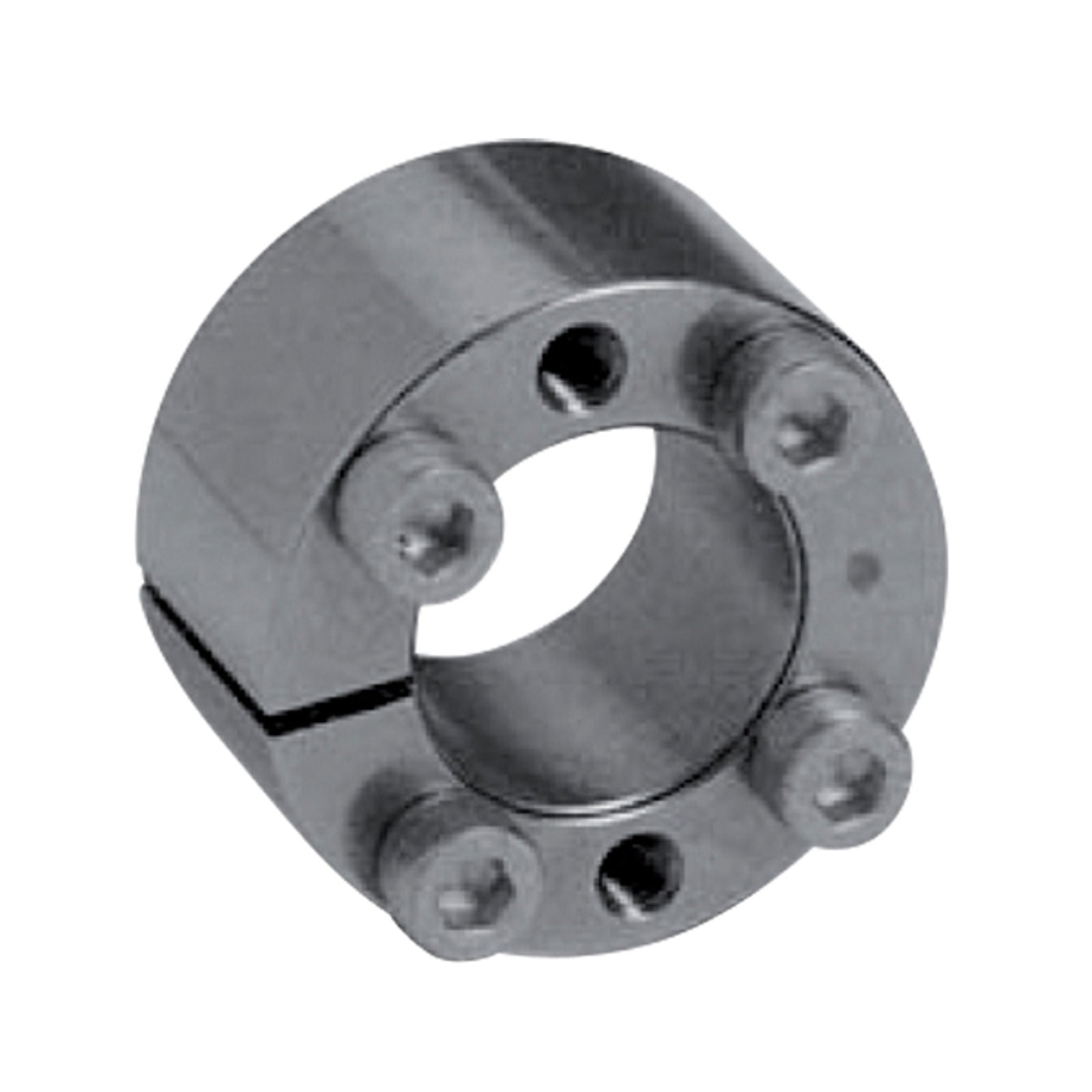

RCK 61 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Enables adjacent components to be clamped to the hub thanks to an axial force achieved during the clamping phase. It operates with medium torque values.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Product Configuration

Select a row to add it to your quote

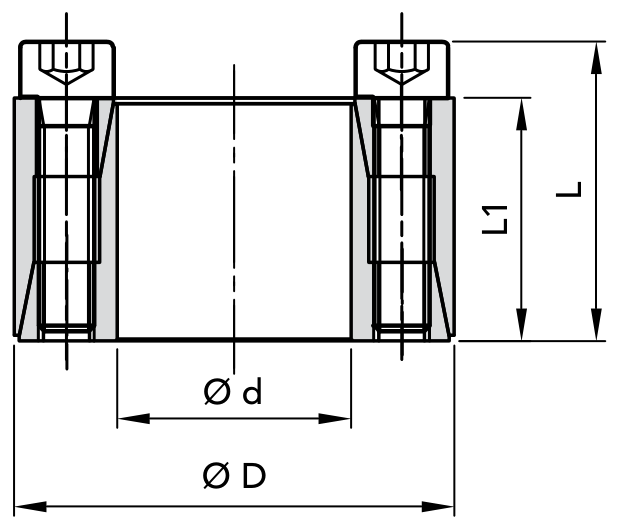

Code Size Ød × ØD (mm)L1L Weight CAD
06610010 10 × 20 13 mm 15.5 mm 0.02 kg
06610012 12 × 22 13 mm 15.5 mm 0.02 kg
06610014 14 × 26 17 mm 20 mm 0.04 kg
06610015 15 × 28 17 mm 20 mm 0.04 kg
06610016 16 × 32 17 mm 21 mm 0.07 kg
06610018 18 × 35 21 mm 25 mm 0.09 kg
06610019 19 × 35 21 mm 25 mm 0.08 kg
06610020 20 × 38 21 mm 26 mm 0.1 kg
06610022 22 × 40 21 mm 26 mm 0.11 kg
06610024 24 × 47 26 mm 32 mm 0.2 kg
06610025 25 × 47 26 mm 32 mm 0.19 kg

Product Information

Type
Self Centring locking element
Series
RCK 61
