Chiaravalli Locking Element RCK 70 (Self Centring)
Chiaravalli

Locking Element RCK 70 (Self Centring)

Locking Elements · RCK 70

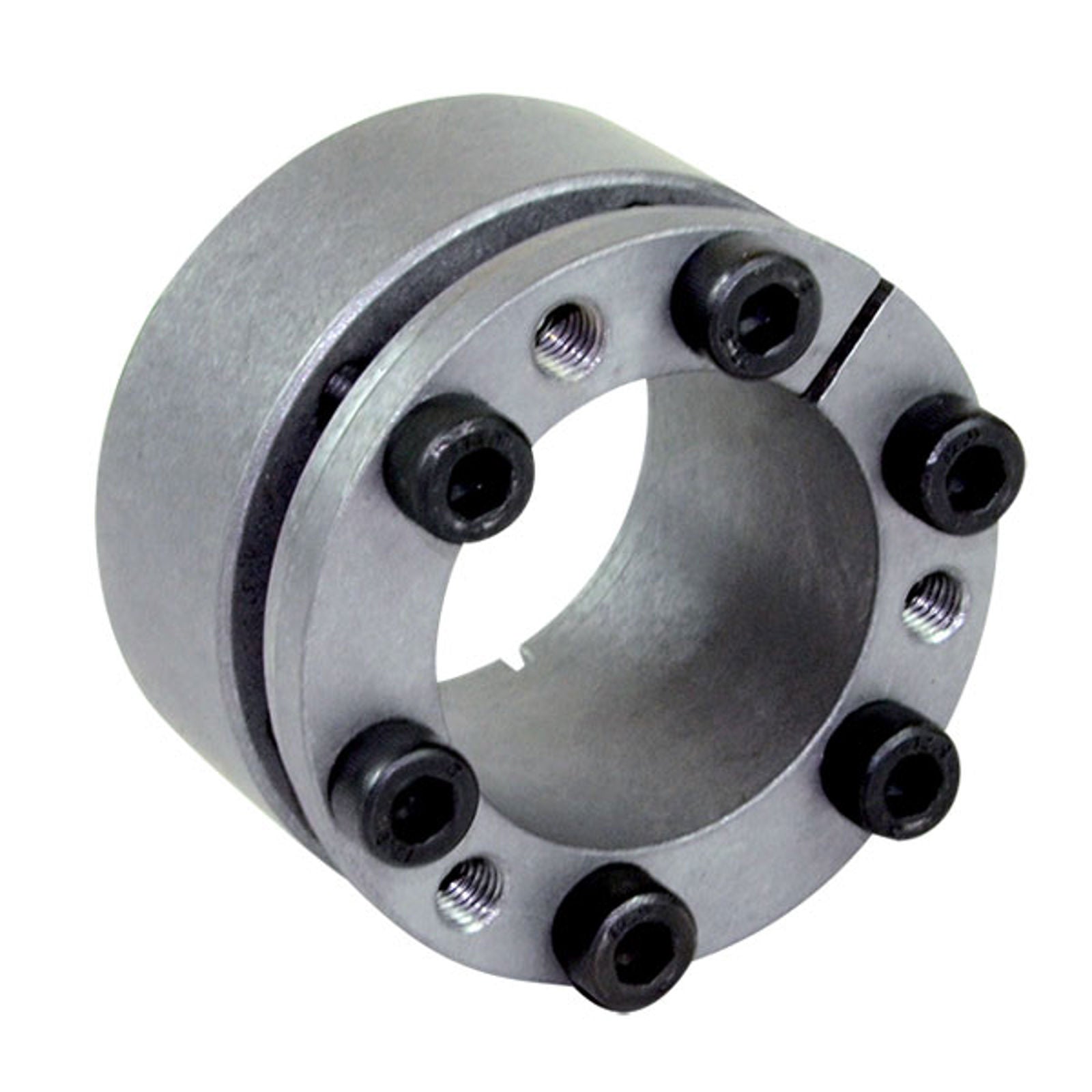

RCK 70 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for assemblies where concentricity and orthogonal positioning of the parts is required. These components operate with medium-high torque values.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Product Configuration

Select a row to add it to your quote

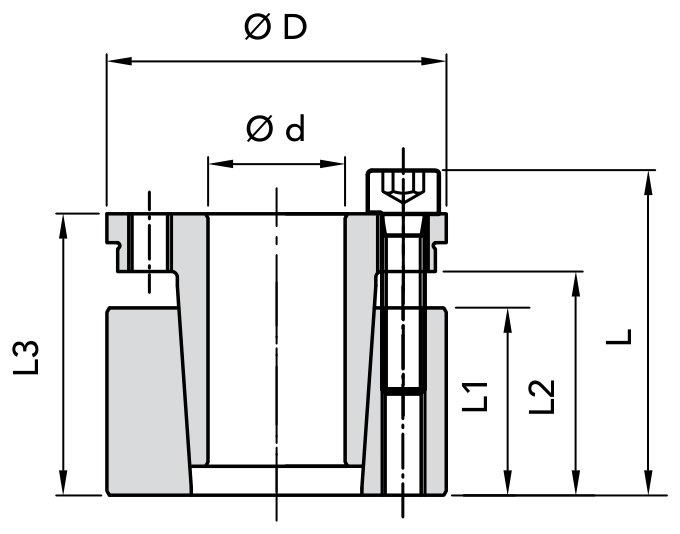

Code Size Ød × ØD (mm)L1L2L3L Weight CAD
06700019 19 × 47 26 mm 31 mm 39 mm 45 mm 0.39 kg
06700020 20 × 47 26 mm 31 mm 39 mm 45 mm 0.38 kg
06700022 22 × 47 26 mm 31 mm 39 mm 45 mm 0.37 kg
06700024 24 × 50 26 mm 31 mm 39 mm 45 mm 0.43 kg
06700025 25 × 50 26 mm 31 mm 39 mm 45 mm 0.42 kg
06700028 28 × 55 26 mm 31 mm 39 mm 45 mm 0.45 kg
06700030 30 × 55 26 mm 31 mm 39 mm 45 mm 0.45 kg
06700032 32 × 60 26 mm 31 mm 39 mm 45 mm 0.6 kg
06700035 35 × 60 26 mm 31 mm 39 mm 45 mm 0.5 kg
06700038 38 × 65 26 mm 31 mm 39 mm 45 mm 0.6 kg
06700040 40 × 65 26 mm 31 mm 39 mm 45 mm 0.6 kg
06700042 42 × 75 30 mm 36 mm 47 mm 55 mm 1.0 kg
06700045 45 × 75 30 mm 36 mm 47 mm 55 mm 1.0 kg
06700048 48 × 80 30 mm 36 mm 47 mm 55 mm 1.1 kg
06700050 50 × 80 30 mm 36 mm 47 mm 55 mm 1.0 kg
06700055 55 × 85 30 mm 36 mm 47 mm 55 mm 1.1 kg
06700060 60 × 90 30 mm 36 mm 47 mm 55 mm 1.2 kg
06700065 65 × 95 30 mm 36 mm 47 mm 55 mm 1.3 kg
06700070 70 × 110 40 mm 46 mm 57 mm 67 mm 2.2 kg
06700075 75 × 115 40 mm 46 mm 62 mm 72 mm 2.5 kg
06700080 80 × 120 40 mm 46 mm 62 mm 72 mm 2.6 kg
06700085 85 × 125 40 mm 46 mm 62 mm 72 mm 2.8 kg
06700090 90 × 130 40 mm 46 mm 62 mm 72 mm 2.7 kg
06700095 95 × 135 40 mm 46 mm 62 mm 72 mm 2.9 kg
06700100 100 × 145 46 mm 52 mm 77 mm 89 mm 3.9 kg
06700110 110 × 155 46 mm 52 mm 77 mm 89 mm 4.2 kg
06700120 120 × 165 46 mm 52 mm 77 mm 89 mm 4.8 kg
06700130 130 × 180 46 mm 52 mm 77 mm 89 mm 5.0 kg
06700140 140 × 190 51 mm 59 mm 84 mm 90 mm 6.5 kg
06700150 150 × 200 51 mm 59 mm 84 mm 90 mm 7.0 kg
06700160 160 × 210 51 mm 59 mm 84 mm 90 mm 7.0 kg
06700170 170 × 225 51 mm 59 mm 84 mm 90 mm 8.5 kg
06700180 180 × 235 51 mm 59 mm 84 mm 90 mm 9.0 kg

Product Information

Type
Self Centring locking element
Series
RCK 70
