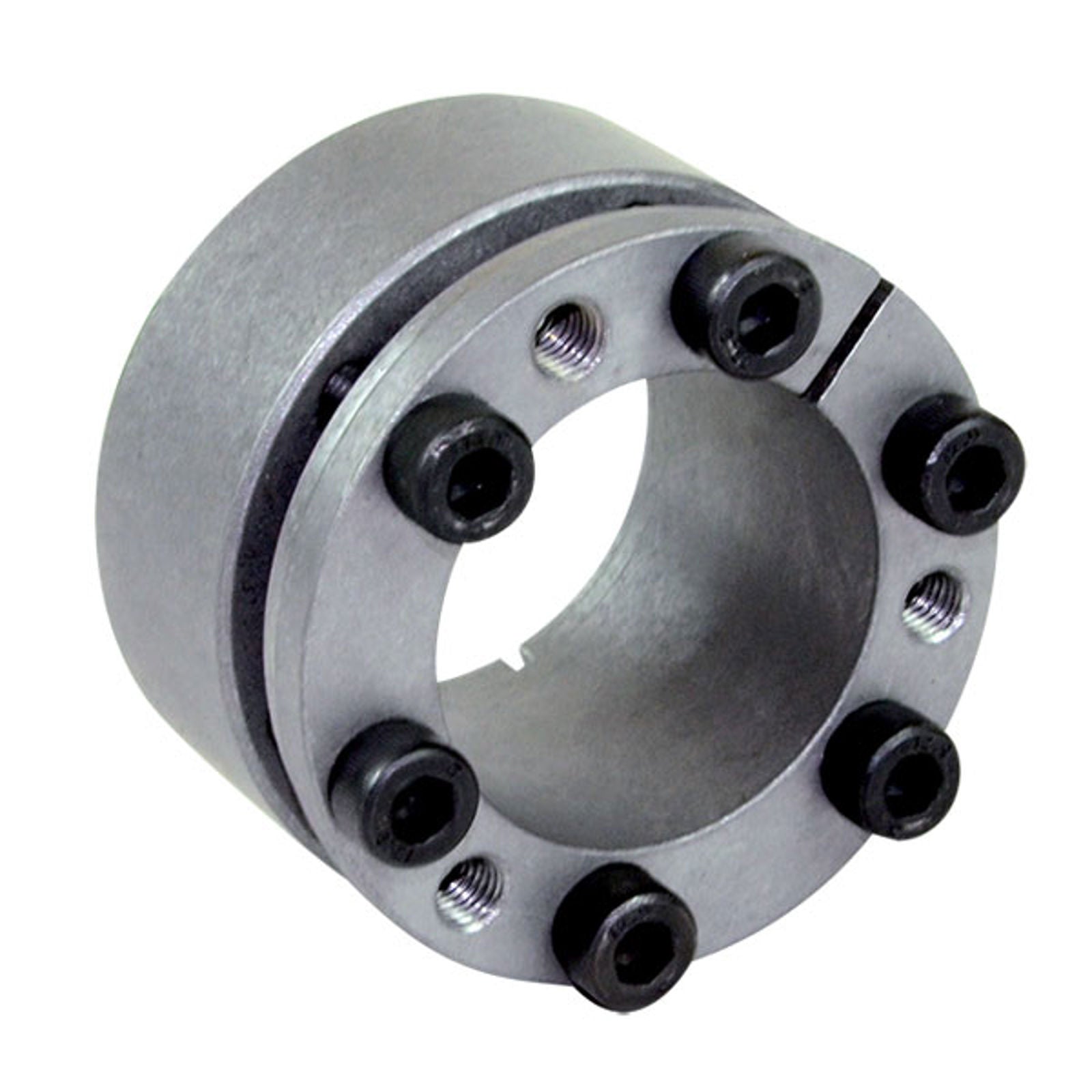

Chiaravalli Locking Element RCK 71 (Self Centring)
Chiaravalli

Locking Element RCK 71 (Self Centring)

Locking Elements · RCK 71

RCK 71 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

The RCK 71 version has the same features as RCK 70 with the addition of a spacer ring to completely avoid possible axial displacements. These components operate with medium-high torque values.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Product Configuration

Select a row to add it to your quote

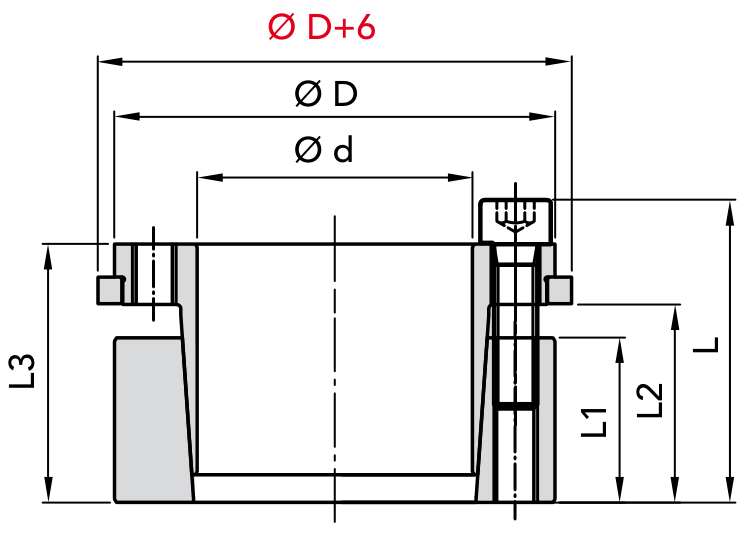

Code Size Ød × ØD (mm)L1L2L3L Weight CAD
06710019 19 × 47 26 mm 31 mm 39 mm 45 mm 0.45 kg
06710020 20 × 47 26 mm 31 mm 39 mm 45 mm 0.46 kg
06710022 22 × 47 26 mm 31 mm 39 mm 45 mm 0.5 kg
06710024 24 × 50 26 mm 31 mm 39 mm 45 mm 0.5 kg
06710025 25 × 50 26 mm 31 mm 39 mm 45 mm 0.5 kg
06710028 28 × 55 26 mm 31 mm 39 mm 45 mm 0.6 kg
06710030 30 × 55 26 mm 31 mm 39 mm 45 mm 0.6 kg
06710032 32 × 60 26 mm 31 mm 39 mm 45 mm 0.7 kg
06710035 35 × 60 26 mm 31 mm 39 mm 45 mm 0.6 kg
06710038 38 × 65 26 mm 31 mm 39 mm 45 mm 0.8 kg
06710040 40 × 65 26 mm 31 mm 39 mm 45 mm 0.6 kg
06710042 42 × 75 30 mm 36 mm 47 mm 55 mm 1.2 kg
06710045 45 × 75 30 mm 36 mm 47 mm 55 mm 1.1 kg
06710048 48 × 80 30 mm 36 mm 47 mm 55 mm 1.3 kg
06710050 50 × 80 30 mm 36 mm 47 mm 55 mm 1.1 kg
06710055 55 × 85 30 mm 36 mm 47 mm 55 mm 1.2 kg
06710060 60 × 90 30 mm 36 mm 47 mm 55 mm 1.3 kg
06710065 65 × 95 30 mm 36 mm 47 mm 55 mm 1.4 kg
06710070 70 × 110 40 mm 46 mm 57 mm 67 mm 2.5 kg
06710075 75 × 115 40 mm 46 mm 62 mm 72 mm 2.6 kg
06710080 80 × 120 40 mm 46 mm 62 mm 72 mm 2.8 kg
06710085 85 × 125 40 mm 46 mm 62 mm 72 mm 2.8 kg
06710090 90 × 130 40 mm 46 mm 62 mm 72 mm 3.0 kg
06710095 95 × 135 40 mm 46 mm 62 mm 72 mm 3.0 kg
06710100 100 × 145 46 mm 52 mm 77 mm 89 mm 5.5 kg
06710110 110 × 155 46 mm 52 mm 77 mm 89 mm 4.8 kg
06710120 120 × 165 46 mm 52 mm 77 mm 89 mm 5.5 kg
06710130 130 × 180 46 mm 52 mm 77 mm 89 mm 6.0 kg
06710140 140 × 190 51 mm 59 mm 84 mm 90 mm 7.5 kg
06710150 150 × 200 51 mm 59 mm 84 mm 90 mm 7.7 kg
06710160 160 × 210 51 mm 59 mm 84 mm 90 mm 8.0 kg
06710170 170 × 225 51 mm 59 mm 84 mm 90 mm 9.8 kg
06710180 180 × 235 51 mm 59 mm 84 mm 90 mm 9.8 kg

Product Information

Type
Self Centring locking element
Series
RCK 71
