Chiaravalli Locking Element RCK 80 (Self Centring)
Chiaravalli

Locking Element RCK 80 (Self Centring)

Locking Elements · RCK 80

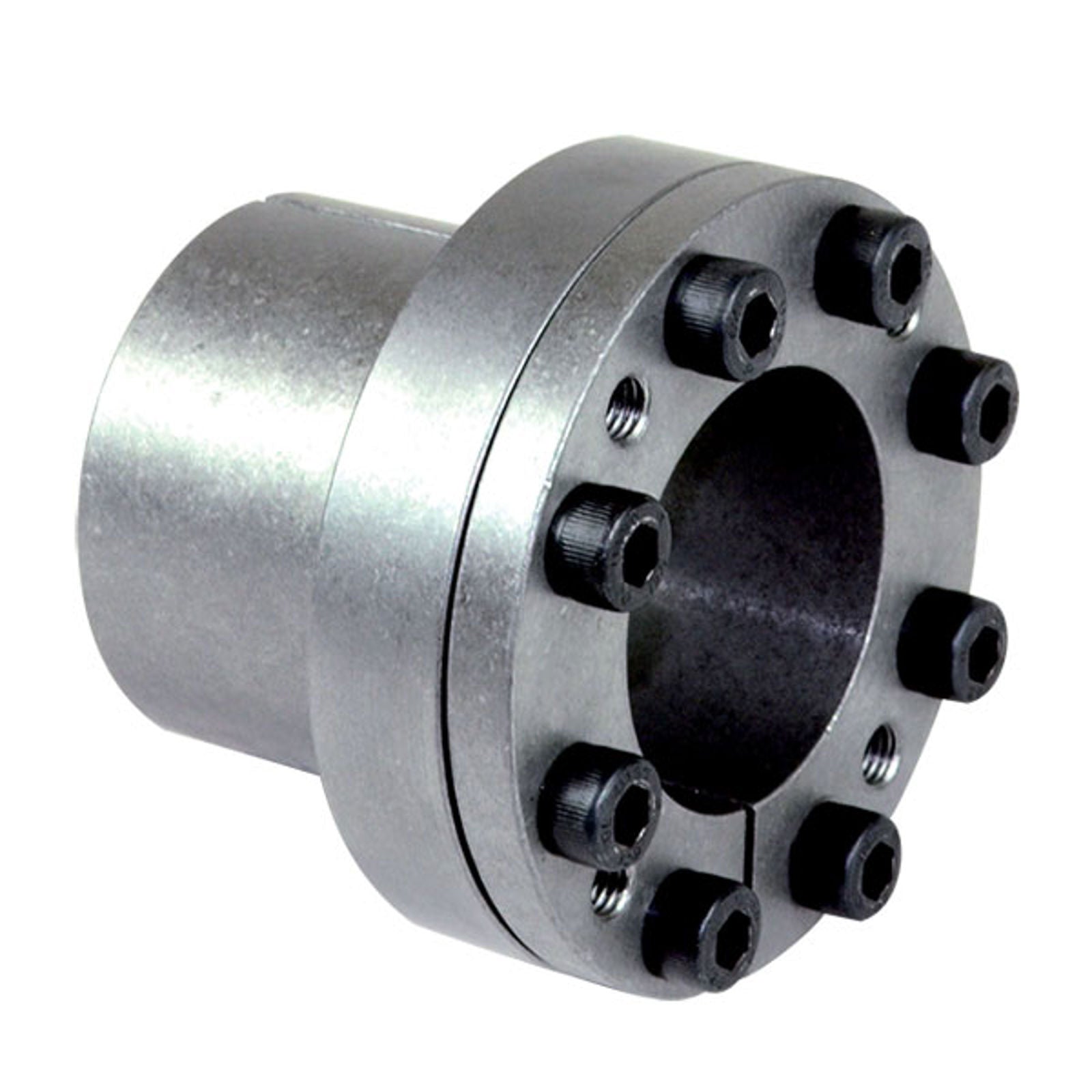

RCK 80 locking element (shaft clamping element), self centring type — keyless friction connection between shaft and hub.

Suitable for assemblies on hubs with thin walls; guarantees both axial and radial positioning precision with medium transmission torque values.

Recommended machining tolerances for the pressure surfaces: Ø h8 for shaft, Ø H8 for hub.

Product Configuration

Select a row to add it to your quote

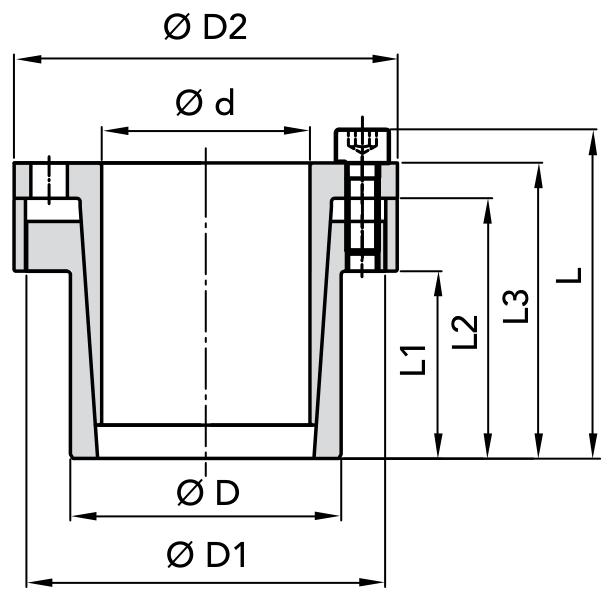

Code Size Ød × ØD (mm)ØD1ØD2L1L2L3L Weight CAD
06800006 6 × 14 22 mm 25 mm 10 mm 18.5 mm 22.5 mm 25.5 mm 0.1 kg
06800008 8 × 15 24 mm 27 mm 12 mm 21.5 mm 25.5 mm 29.5 mm 0.1 kg
06800009 9 × 16 25 mm 28 mm 14 mm 23.5 mm 27.5 mm 31.5 mm 0.1 kg
06800010 10 × 16 25 mm 28 mm 14 mm 23.5 mm 27.5 mm 31.5 mm 0.11 kg
06800011 11 × 18 28 mm 32 mm 14 mm 23.5 mm 27.5 mm 31.5 mm 0.11 kg
06800012 12 × 18 28 mm 32 mm 14 mm 23.5 mm 27.5 mm 31.5 mm 0.12 kg
06800014 14 × 23 35 mm 39 mm 14 mm 23.5 mm 27.5 mm 31.5 mm 0.12 kg
06800015 15 × 24 40 mm 45 mm 16 mm 29.5 mm 36.5 mm 42.5 mm 0.21 kg
06800016 16 × 24 40 mm 45 mm 16 mm 29.5 mm 36.5 mm 42.5 mm 0.23 kg
06800017 17 × 26 42 mm 47 mm 19 mm 32.5 mm 39.5 mm 45.5 mm 0.25 kg
06800018 18 × 26 42 mm 47 mm 19 mm 32.5 mm 39.5 mm 45.5 mm 0.27 kg
06800019 19 × 27 43 mm 49 mm 19 mm 32.5 mm 39.5 mm 45.5 mm 0.27 kg
06800020 20 × 28 44 mm 50 mm 19 mm 32.5 mm 39.5 mm 45.5 mm 0.27 kg
06800022 22 × 32 48 mm 54 mm 26 mm 39.5 mm 46.5 mm 52.5 mm 0.38 kg
06800024 24 × 34 50 mm 56 mm 26 mm 39.5 mm 46.5 mm 52.5 mm 0.41 kg
06800025 25 × 34 50 mm 56 mm 26 mm 39.5 mm 46.5 mm 52.5 mm 0.45 kg
06800028 28 × 39 55 mm 61 mm 25.5 mm 39.5 mm 46.5 mm 52.5 mm 0.47 kg
06800030 30 × 41 57 mm 62 mm 25.5 mm 39.5 mm 46.5 mm 52.5 mm 0.48 kg
06800032 32 × 43 59 mm 65 mm 25.5 mm 39.5 mm 46.5 mm 52.5 mm 0.49 kg
06800035 35 × 47 62 mm 69 mm 31.5 mm 45.5 mm 52.5 mm 58.5 mm 0.63 kg
06800038 38 × 50 66 mm 72 mm 31.5 mm 45.5 mm 52.5 mm 58.5 mm 0.67 kg
06800040 40 × 53 69 mm 75 mm 31.5 mm 45.5 mm 52.5 mm 58.5 mm 0.73 kg
06800042 42 × 55 71 mm 78 mm 31.5 mm 45.5 mm 52.5 mm 58.5 mm 0.78 kg
06800045 45 × 59 80 mm 86 mm 45 mm 62.5 mm 71 mm 79 mm 1.23 kg
06800048 48 × 62 81 mm 87 mm 45 mm 62.5 mm 71 mm 79 mm 1.24 kg
06800050 50 × 65 86 mm 92 mm 45 mm 62.5 mm 71 mm 79 mm 1.4 kg
06800055 55 × 71 92 mm 98 mm 55 mm 72.5 mm 81 mm 89 mm 1.7 kg
06800060 60 × 77 98 mm 104 mm 55 mm 72.5 mm 81 mm 89 mm 1.76 kg
06800065 65 × 84 105 mm 111 mm 55 mm 72.5 mm 81 mm 89 mm 2.21 kg
06800070 70 × 90 113 mm 119 mm 65 mm 86.5 mm 96.5 mm 106.5 mm 3.05 kg
06800075 75 × 95 119 mm 126 mm 65 mm 86.5 mm 96.5 mm 106.5 mm 3.32 kg
06800080 80 × 100 125 mm 131 mm 65 mm 86.5 mm 96.5 mm 106.5 mm 3.5 kg
06800090 90 × 112 137 mm 144 mm 65 mm 86.5 mm 96.5 mm 106.5 mm 3.9 kg
06800100 100 × 125 147 mm 154 mm 65 mm 86.5 mm 96.5 mm 106.5 mm 4.6 kg
06800110 110 × 140 172 mm 180 mm 90 mm 114 mm 128 mm 140 mm 8.7 kg
06800120 120 × 155 187 mm 198 mm 90 mm 114 mm 128 mm 140 mm 10.7 kg

Product Information

Type
Self Centring locking element
Series
RCK 80

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
