Chiaravalli Locking Element RCK 95 (Rigid Joint)
Chiaravalli

Locking Element RCK 95 (Rigid Joint)

Locking Elements · RCK 95

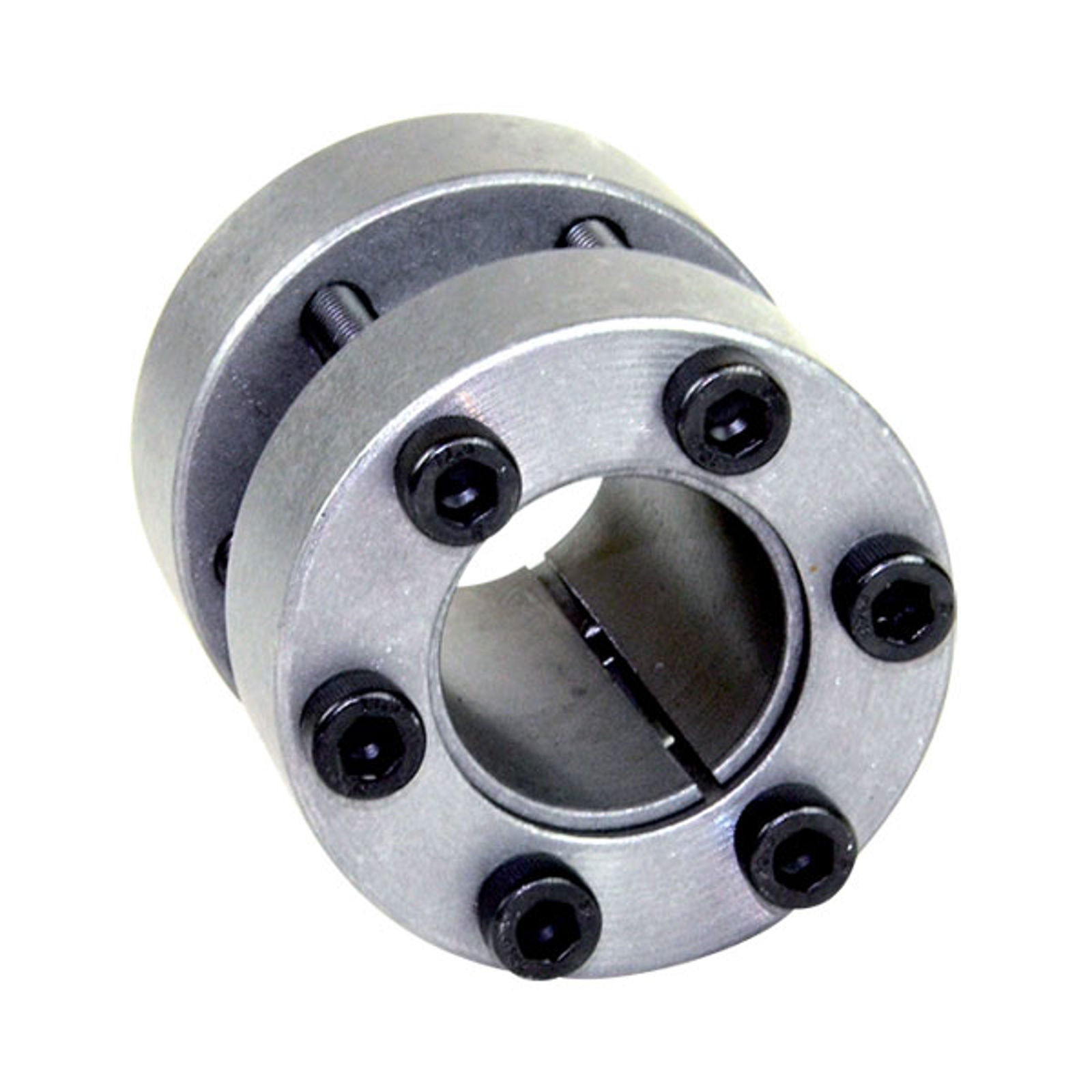

RCK 95 locking element (shaft clamping element), rigid joint type — keyless friction connection between shaft and hub.

Enables rigid connection between two aligned shafts. It transmits medium-high twisting moments with the advantage of enabling rapid assembly and disassembly.

Recommended machining tolerance: Ø h8 for shaft.

Product Configuration

Select a row to add it to your quote

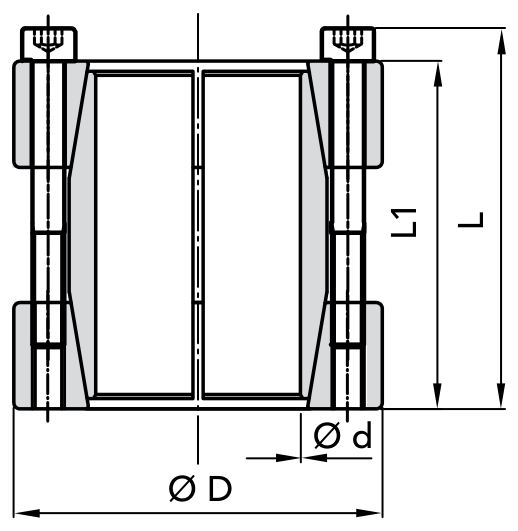

Code Size Ød × ØD (mm)L1L Weight CAD
06950017 17 × 50 50 mm 56 mm 0.51 kg
06950018 18 × 50 50 mm 56 mm 0.52 kg
06950019 19 × 50 50 mm 56 mm 0.5 kg
06950020 20 × 50 50 mm 56 mm 0.5 kg
06950024 24 × 55 60 mm 66 mm 0.71 kg
06950025 25 × 55 60 mm 66 mm 0.69 kg
06950028 28 × 60 60 mm 66 mm 0.81 kg
06950030 30 × 60 60 mm 66 mm 0.78 kg
06950032 32 × 63 60 mm 66 mm 0.85 kg
06950035 35 × 75 75 mm 83 mm 1.48 kg
06950038 38 × 75 75 mm 83 mm 1.45 kg
06950040 40 × 75 75 mm 83 mm 1.4 kg
06950042 42 × 78 75 mm 83 mm 1.5 kg
06950045 45 × 85 85 mm 93 mm 2.03 kg
06950048 48 × 90 85 mm 93 mm 2.24 kg
06950050 50 × 90 85 mm 93 mm 2.18 kg
06950055 55 × 94 85 mm 93 mm 2.29 kg
06950060 60 × 100 85 mm 93 mm 2.52 kg
06950065 65 × 105 85 mm 93 mm 2.69 kg
06950070 70 × 115 100 mm 110 mm 3.94 kg

Product Information

Type
Rigid Joint locking element
Series
RCK 95
