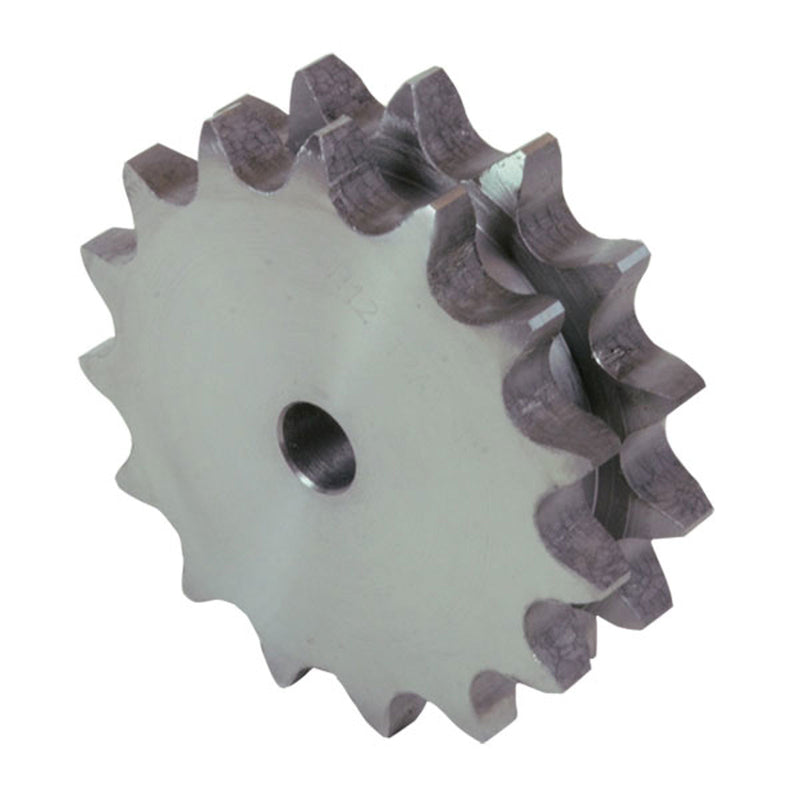

Platewheel 24B-2 Duplex (1” 1/2 × 1”)

Duplex platewheel for 24B-2 (1” 1/2 × 1”) roller chain.

  • Chain inner width: 25.4 mm
  • Chain roller Ø: 25.4 mm
  • Tooth radius r3: 38 mm
  • Radius width C: 4 mm
  • Plate tooth width b1: 23.6 mm
  • Plate tooth width B2: 72 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20238008 8 25 mm 115 mm 99.55 mm 2.31 kg —
20238009 9 25 mm 126.4 mm 111.4 mm 3.18 kg
20238010 10 25 mm 138 mm 123.29 mm 4.19 kg
20238011 11 25 mm 150 mm 135.21 mm 5.33 kg
20238012 12 25 mm 162 mm 147.22 mm 6.59 kg
20238013 13 25 mm 174.2 mm 159.18 mm 7.99 kg
20238014 14 25 mm 186.2 mm 171.22 mm 9.52 kg
20238015 15 25 mm 198.2 mm 183.26 mm 11.18 kg
20238016 16 25 mm 210.3 mm 195.3 mm 12.85 kg
20238017 17 25 mm 222.3 mm 207.34 mm 14.77 kg
20238018 18 25 mm 234.3 mm 219.42 mm 16.82 kg
20238019 19 25 mm 246.5 mm 231.49 mm 19.0 kg
20238020 20 25 mm 258.6 mm 243.57 mm 21.31 kg
20238021 21 25 mm 270.6 mm 255.65 mm 23.75 kg
20238022 22 25 mm 282.7 mm 267.73 mm 26.33 kg
20238023 23 25 mm 294.8 mm 279.8 mm 29.03 kg
20238024 24 25 mm 306.8 mm 291.88 mm 31.86 kg
20238025 25 25 mm 319 mm 304 mm 34.83 kg
20238026 26 30 mm 331 mm 316.08 mm 37.93 kg
20238027 27 30 mm 343.2 mm 328.19 mm 41.15 kg
20238028 28 30 mm 355.2 mm 340.27 mm 44.51 kg
20238029 29 30 mm 367.3 mm 352.38 mm 48.0 kg
20238030 30 30 mm 379.5 mm 364.5 mm 51.61 kg
20238031 31 30 mm 391.6 mm 376.62 mm 55.05 kg
20238032 32 30 mm 403.7 mm 388.69 mm 58.93 kg
20238033 33 30 mm 415.8 mm 400.81 mm 62.94 kg
20238034 34 30 mm 427.8 mm 412.93 mm 67.08 kg
20238035 35 30 mm 440 mm 425.04 mm 71.35 kg
20238036 36 30 mm 452 mm 437.16 mm 75.75 kg
20238037 37 30 mm 464.2 mm 449.27 mm 80.28 kg
20238038 38 30 mm 476.2 mm 461.37 mm 84.95 kg
20238040 40 30 mm 500.6 mm 485.62 mm 94.66 kg
20238045 45 40 mm 561.2 mm 546.2 mm 121.24 kg
20238046 46 40 mm 573.3 mm 558.32 mm 130.7 kg
20238050 50 40 mm 621.7 mm 606.78 mm 151.08 kg
20238057 57 40 mm 706.5 mm 691.63 mm 198.34 kg
20238060 60 40 mm 742.8 mm 727.97 mm 220.55 kg
20238065 65 40 mm 803.4 mm 788.59 mm 260.19 kg
20238076 76 40 mm 936.9 mm 921.98 mm 358.88 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
24B-2
Pitch
38.1 mm
