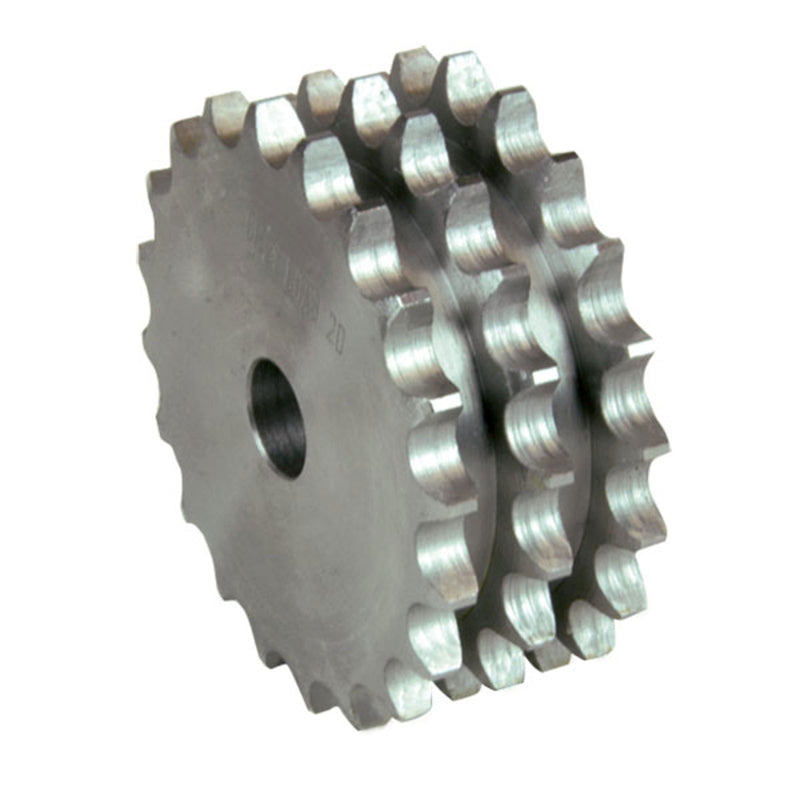

Chiaravalli Platewheel 24B-3 Triplex (1” 1/2 × 1”) — product photo
Chiaravalli

Platewheel 24B-3 Triplex (1” 1/2 × 1”)

Triplex platewheel for 24B-3 (1” 1/2 × 1”) roller chain.

  • Chain inner width: 25.4 mm
  • Chain roller Ø: 25.4 mm
  • Tooth radius r3: 38 mm
  • Radius width C: 4 mm
  • Plate tooth width b1: 23.6 mm
  • Plate tooth width B3: 120.3 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20338008 8 25 mm 115 mm 99.55 mm 3.67 kg
20338009 9 25 mm 126.4 mm 111.4 mm 5.1 kg
20338010 10 25 mm 138 mm 123.29 mm 6.75 kg
20338011 11 25 mm 150 mm 135.21 mm 8.42 kg
20338012 12 25 mm 162 mm 147.22 mm 10.5 kg
20338013 13 25 mm 174.2 mm 159.18 mm 12.81 kg
20338014 14 25 mm 186.2 mm 171.22 mm 15.33 kg
20338015 15 25 mm 198.2 mm 183.26 mm 18.08 kg
20338016 16 25 mm 210.3 mm 195.3 mm 21.04 kg
20338017 17 25 mm 222.3 mm 207.34 mm 24.22 kg
20338018 18 25 mm 234.3 mm 219.42 mm 27.61 kg
20338019 19 25 mm 246.5 mm 231.49 mm 31.23 kg
20338020 20 25 mm 258.6 mm 243.57 mm 35.06 kg
20338021 21 30 mm 270.6 mm 255.65 mm 38.6 kg
20338022 22 30 mm 282.7 mm 267.73 mm 42.87 kg
20338023 23 30 mm 294.8 mm 279.8 mm 47.36 kg
20338024 24 30 mm 306.8 mm 291.88 mm 52.07 kg
20338025 25 30 mm 319 mm 304 mm 56.99 kg
20338026 26 30 mm 331 mm 316.08 mm 62.14 kg
20338027 27 30 mm 343.2 mm 328.19 mm 67.5 kg
20338028 28 30 mm 355.2 mm 340.27 mm 73.08 kg
20338030 30 40 mm 379.5 mm 364.5 mm 84.9 kg
20338032 32 40 mm 403.7 mm 388.69 mm 97.59 kg
20338035 35 40 mm 440 mm 425.04 mm 118.26 kg
20338038 38 40 mm 476.2 mm 461.37 mm 140.9 kg
20338040 40 40 mm 500.6 mm 485.62 mm 158.08 kg
20338045 45 40 mm 561.2 mm 546.2 mm 201.37 kg
20338048 48 40 mm 597.4 mm 582.55 mm 230.56 kg —
20338050 50 40 mm 621.7 mm 606.78 mm 251.11 kg
20338055 55 40 mm 682.3 mm 667.4 mm 265.0 kg
20338057 57 40 mm 706.5 mm 691.63 mm 329.92 kg
20338060 60 40 mm 742.8 mm 727.97 mm 366.97 kg
20338076 76 40 mm 936.9 mm 921.98 mm 597.76 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
24B-3
Pitch
38.1 mm
