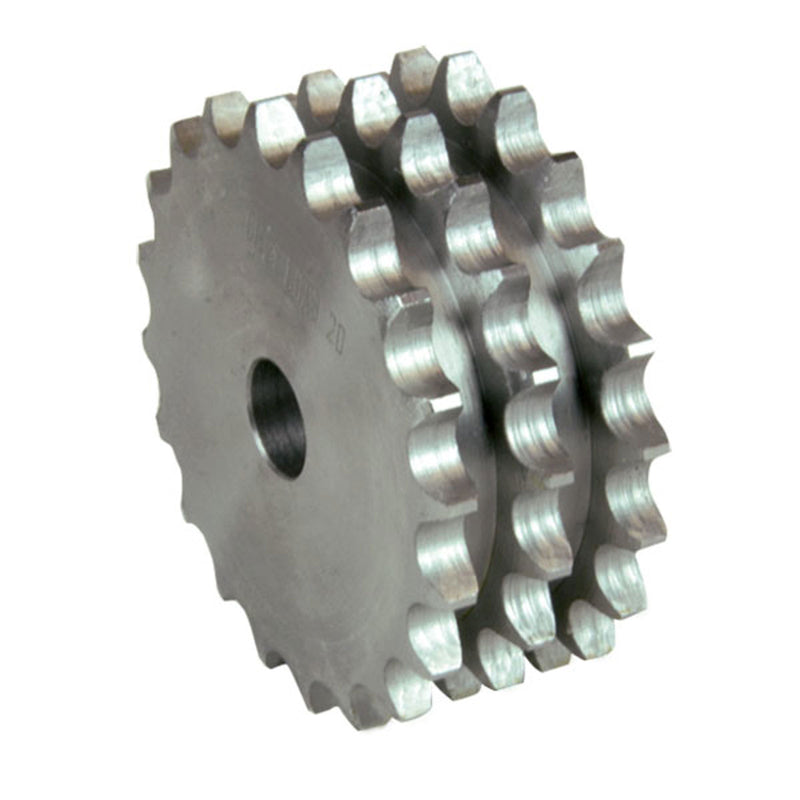

Platewheel 20B-3 Triplex (1” 1/4 × 3/4”)

Triplex platewheel for 20B-3 (1” 1/4 × 3/4”) roller chain.

  • Chain inner width: 19.56 mm
  • Chain roller Ø: 19.05 mm
  • Tooth radius r3: 32 mm
  • Radius width C: 3.5 mm
  • Plate tooth width b1: 18.2 mm
  • Plate tooth width B3: 91 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20331008 8 20 mm 98.1 mm 82.96 mm 2.02 kg
20331009 9 20 mm 108 mm 92.84 mm 2.79 kg
20331010 10 20 mm 117.9 mm 102.74 mm 3.77 kg
20331011 11 20 mm 127.8 mm 112.68 mm 4.53 kg
20331012 12 20 mm 137.8 mm 122.68 mm 5.64 kg
20331013 13 20 mm 147.8 mm 132.65 mm 4.87 kg
20331014 14 20 mm 157.8 mm 142.68 mm 8.2 kg
20331015 15 20 mm 167.9 mm 152.72 mm 9.65 kg
20331016 16 25 mm 177.9 mm 162.75 mm 11.07 kg
20331017 17 25 mm 187.9 mm 172.78 mm 12.75 kg
20331018 18 25 mm 198 mm 182.85 mm 14.54 kg
20331019 19 25 mm 208.1 mm 192.91 mm 16.45 kg
20331020 20 25 mm 218.1 mm 202.98 mm 18.47 kg
20331021 21 25 mm 228.2 mm 213.04 mm 20.62 kg
20331022 22 25 mm 238.3 mm 223.11 mm 22.87 kg
20331023 23 25 mm 248.3 mm 233.17 mm 25.24 kg
20331024 24 25 mm 258.4 mm 243.23 mm 27.72 kg
20331025 25 25 mm 268.5 mm 253.33 mm 30.32 kg
20331026 26 25 mm 278.6 mm 263.4 mm 33.03 kg
20331027 27 25 mm 288.6 mm 273.4 mm 35.86 kg
20331028 28 25 mm 298.7 mm 283.56 mm 38.8 kg
20331030 30 25 mm 318.9 mm 303.75 mm 45.03 kg
20331032 32 25 mm 339.1 mm 323.91 mm 51.72 kg
20331033 33 25 mm 349.2 mm 334.01 mm 55.17 kg
20331034 34 25 mm 359.3 mm 344.1 mm 58.86 kg
20331035 35 25 mm 369.4 mm 354.2 mm 62.6 kg
20331036 36 30 mm 379.5 mm 364.3 mm 66.46 kg
20331037 37 30 mm 389.5 mm 374.39 mm 70.37 kg
20331038 38 30 mm 399.6 mm 384.49 mm 74.52 kg
20331040 40 30 mm 419.8 mm 404.68 mm 83.04 kg
20331045 45 40 mm 470.3 mm 455.17 mm 105.96 kg
20331050 50 40 mm 520.8 mm 505.65 mm 132.13 kg
20331055 55 40 mm 571.3 mm 556.16 mm 161.16 kg
20331057 57 40 mm 591.5 mm 576.36 mm 173.58 kg
20331060 60 40 mm 621.8 mm 606.65 mm 193.06 kg
20331065 65 40 mm 672.3 mm 657.16 mm 227.83 kg
20331070 70 40 mm 722.8 mm 707.67 mm 265.46 kg
20331076 76 40 mm 783.5 mm 768.32 mm 314.39 kg
20331080 80 40 mm 823.9 mm 808.72 mm 340.0 kg
20331095 95 40 mm 975.4 mm 960.28 mm 420.0 kg
20331114 114 40 mm 1167.4 mm 1152.26 mm 720.16 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
20B-3
Pitch
31.75 mm
