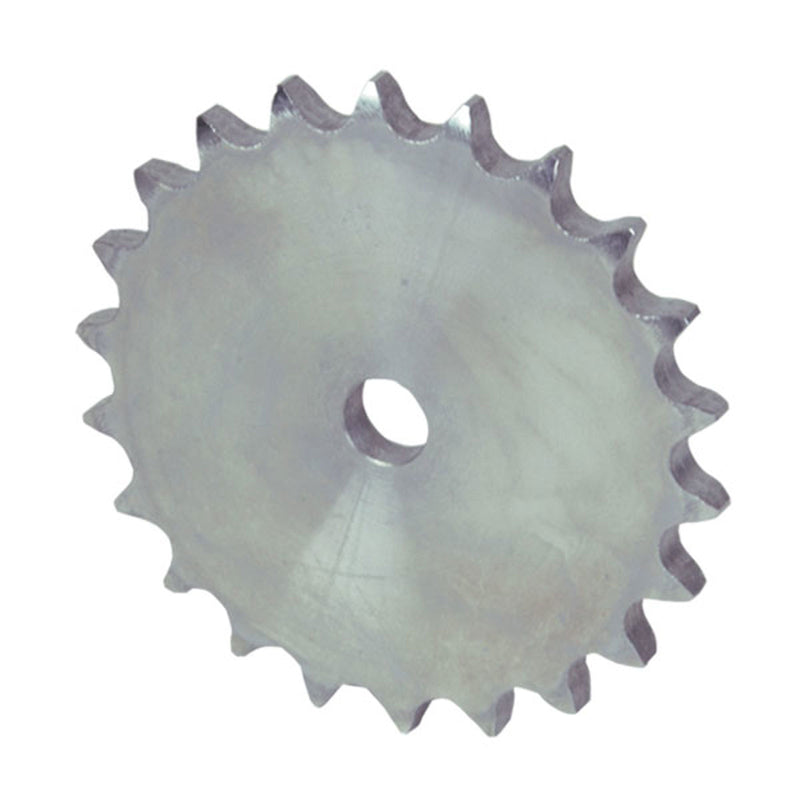

Chiaravalli Platewheel 1/2” × 1/4” R.7,75 Simplex — product photo
Chiaravalli

Platewheel 1/2” × 1/4” R.7,75 Simplex

Simplex platewheel for 1/2” × 1/4” R.7,75 roller chain.

  • Chain inner width: 6.4 mm
  • Chain roller Ø: 7.75 mm
  • Tooth radius r3: 13 mm
  • Radius width C: 1.3 mm
  • Plate tooth width B1: 5.9 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20113008 8 8 mm 38.5 mm 33.18 mm 0.03 kg
20113009 9 8 mm 41.5 mm 37.13 mm 0.038 kg
20113010 10 8 mm 46.2 mm 41.1 mm 0.04 kg
20113011 11 8 mm 49.6 mm 45.07 mm 0.059 kg
20113012 12 8 mm 53.9 mm 49.07 mm 0.072 kg —
20113013 13 8 mm 58.4 mm 53.06 mm 0.1 kg
20113014 14 8 mm 62.8 mm 57.07 mm 0.1 kg
20113015 15 8 mm 66.8 mm 61.09 mm 0.115 kg
20113016 16 10 mm 70.9 mm 65.1 mm 0.12 kg
20113017 17 10 mm 74.9 mm 69.11 mm 0.15 kg
20113018 18 10 mm 78.9 mm 73.14 mm 0.19 kg
20113019 19 10 mm 82.9 mm 77.16 mm 0.21 kg
20113020 20 10 mm 86.9 mm 81.19 mm 0.22 kg
20113021 21 10 mm 91 mm 85.22 mm 0.24 kg
20113022 22 10 mm 95 mm 89.24 mm 0.24 kg
20113023 23 10 mm 99 mm 93.27 mm 0.25 kg —
20113024 24 10 mm 103 mm 97.29 mm 0.31 kg
20113025 25 10 mm 107.1 mm 101.33 mm 0.31 kg
20113026 26 12 mm 111.2 mm 105.36 mm 0.39 kg
20113027 27 12 mm 115.4 mm 109.4 mm 0.43 kg
20113028 28 12 mm 119.4 mm 113.42 mm 0.44 kg
20113030 30 12 mm 127.5 mm 121.5 mm 0.48 kg
20113031 31 12 mm 131.5 mm 125.54 mm 0.56 kg
20113032 32 12 mm 135.5 mm 129.56 mm 0.57 kg
20113033 33 12 mm 139.6 mm 133.6 mm 0.62 kg
20113034 34 12 mm 143.6 mm 137.64 mm 0.66 kg
20113035 35 12 mm 147.6 mm 141.68 mm 0.68 kg
20113036 36 16 mm 151.7 mm 145.72 mm 0.81 kg
20113037 37 16 mm 155.7 mm 149.76 mm 0.91 kg
20113038 38 16 mm 159.8 mm 153.8 mm 0.95 kg
20113039 39 16 mm 163.8 mm 157.83 mm 0.95 kg
20113040 40 16 mm 167.8 mm 161.87 mm 0.98 kg
20113041 41 16 mm 171.4 mm 165.91 mm 0.98 kg
20113042 42 16 mm 175.4 mm 169.95 mm 0.99 kg
20113043 43 16 mm 179.5 mm 173.99 mm 1.03 kg
20113044 44 16 mm 183.5 mm 178.03 mm 1.09 kg —
20113045 45 16 mm 187.5 mm 182.07 mm 1.15 kg
20113046 46 20 mm 191.6 mm 186.1 mm 1.17 kg
20113047 47 20 mm 195.6 mm 190.14 mm 1.27 kg
20113048 48 20 mm 199.7 mm 194.18 mm 1.38 kg
20113049 49 20 mm 203.7 mm 198.22 mm 1.39 kg
20113050 50 20 mm 207.8 mm 202.26 mm 1.44 kg
20113052 52 20 mm 215.9 mm 210.34 mm 1.62 kg —
20113054 54 20 mm 224 mm 218.43 mm 1.71 kg
20113056 56 20 mm 232.1 mm 226.5 mm 1.75 kg
20113057 57 20 mm 236.1 mm 230.54 mm 1.85 kg
20113060 60 20 mm 248.2 mm 242.66 mm 2.12 kg
20113062 62 20 mm 256.7 mm 250.75 mm 2.31 kg
20113065 65 20 mm 268.8 mm 262.86 mm 2.42 kg
20113070 70 25 mm 289 mm 283.07 mm 2.95 kg
20113076 76 25 mm 313.3 mm 307.33 mm 3.48 kg
20113080 80 25 mm 329.4 mm 323.48 mm 3.7 kg
20113085 85 25 mm 349.7 mm 343.7 mm 4.37 kg
20113095 95 25 mm 390.1 mm 384.1 mm 5.47 kg
20113100 100 25 mm 410.3 mm 404.31 mm 5.71 kg
20113110 110 25 mm 450.7 mm 444.74 mm 6.0 kg
20113114 114 25 mm 466.9 mm 460.9 mm 6.54 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Pitch
12.7 mm
