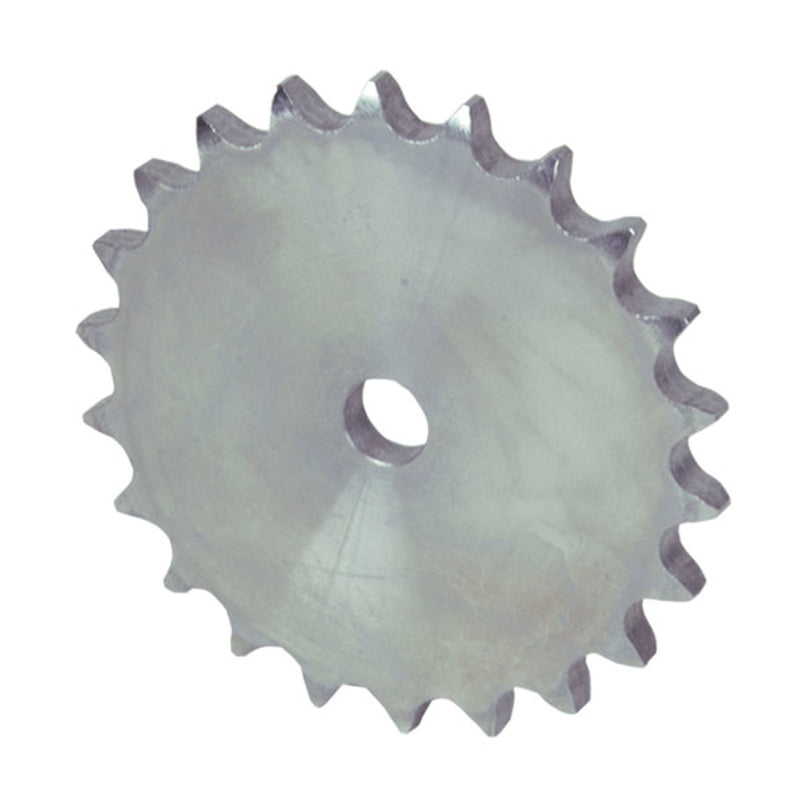

Chiaravalli Platewheel 1/2” × 1/4” R.8,51 Simplex — product photo
Chiaravalli

Platewheel 1/2” × 1/4” R.8,51 Simplex

Simplex platewheel for 1/2” × 1/4” R.8,51 roller chain.

  • Chain inner width: 6.4 mm
  • Chain roller Ø: 8.51 mm
  • Tooth radius r3: 13 mm
  • Radius width C: 1.3 mm
  • Plate tooth width B1: 5.9 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20114008 8 8 mm 37.2 mm 33.18 mm 0.02 kg
20114009 9 8 mm 41 mm 37.13 mm 0.03 kg
20114011 11 8 mm 48.7 mm 45.07 mm 0.06 kg
20114012 12 8 mm 53 mm 49.07 mm 0.08 kg
20114013 13 8 mm 57.4 mm 53.06 mm 0.09 kg
20114014 14 8 mm 61.8 mm 57.07 mm 0.1 kg
20114016 16 10 mm 69.5 mm 65.1 mm 0.14 kg
20114017 17 10 mm 73.6 mm 69.11 mm 0.148 kg
20114018 18 10 mm 77.8 mm 73.14 mm 0.157 kg
20114019 19 10 mm 81.7 mm 77.16 mm 0.195 kg
20114020 20 10 mm 85.8 mm 81.19 mm 0.2 kg
20114023 23 10 mm 98.2 mm 93.27 mm 0.29 kg
20114024 24 10 mm 101.8 mm 97.29 mm 0.31 kg
20114025 25 10 mm 105.8 mm 101.33 mm 0.33 kg
20114026 26 12 mm 110 mm 105.36 mm 0.36 kg
20114027 27 12 mm 114 mm 109.4 mm 0.39 kg
20114028 28 12 mm 118 mm 113.42 mm 0.42 kg
20114029 29 12 mm 122 mm 117.46 mm 0.48 kg
20114030 30 12 mm 126.1 mm 121.5 mm 0.49 kg
20114031 31 12 mm 130.2 mm 125.54 mm 0.55 kg
20114032 32 12 mm 134.2 mm 129.56 mm 0.56 kg
20114035 35 12 mm 146.7 mm 141.68 mm 0.7 kg
20114037 37 16 mm 154.6 mm 149.76 mm 0.79 kg
20114038 38 16 mm 158.6 mm 153.8 mm 0.8 kg
20114039 39 16 mm 162.7 mm 157.83 mm 0.88 kg
20114040 40 16 mm 166.8 mm 161.87 mm 0.9 kg
20114041 41 16 mm 171.4 mm 165.91 mm 0.92 kg
20114042 42 16 mm 175.4 mm 169.95 mm 1.03 kg
20114043 43 16 mm 179.7 mm 173.99 mm 1.08 kg
20114045 45 16 mm 188 mm 182.07 mm 1.15 kg
20114047 47 20 mm 196.2 mm 190.14 mm 1.3 kg
20114050 50 20 mm 208.3 mm 202.26 mm 1.41 kg
20114054 54 20 mm 224.1 mm 218.43 mm 1.72 kg
20114057 57 20 mm 236.4 mm 230.54 mm 1.93 kg
20114062 62 20 mm 256.9 mm 250.75 mm 2.17 kg
20114065 65 20 mm 269 mm 262.86 mm 2.37 kg —
20114076 76 25 mm 313.3 mm 307.33 mm 3.31 kg
20114080 80 25 mm 329.4 mm 323.48 mm 3.83 kg
20114110 110 25 mm 450.7 mm 444.74 mm 9.5 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Pitch
12.7 mm
