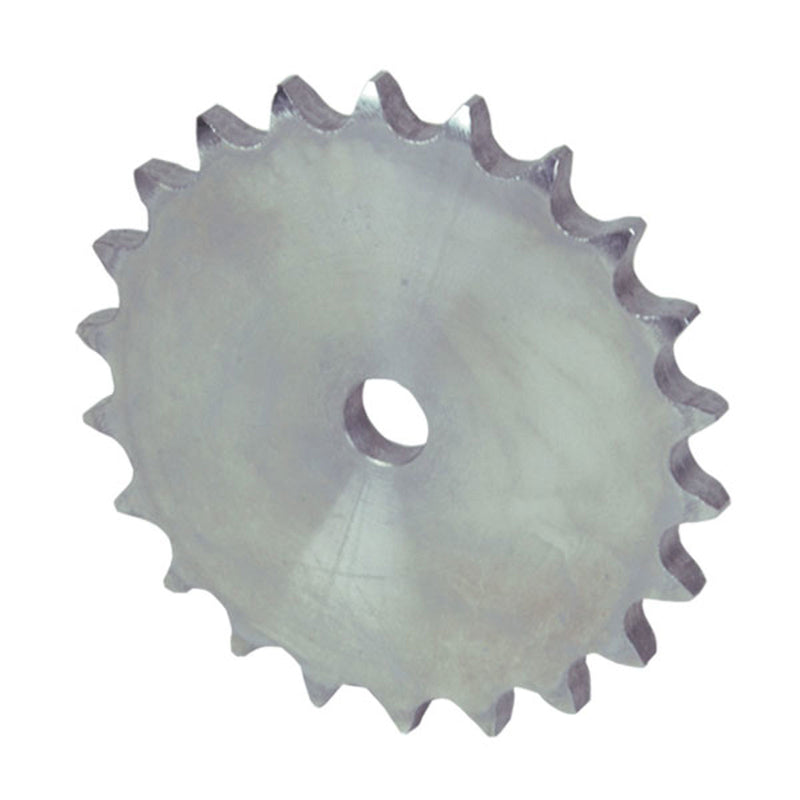

Chiaravalli Platewheel 081-1 Simplex (1/2” × 1/8”) — product photo
Chiaravalli

Platewheel 081-1 Simplex (1/2” × 1/8”)

Simplex platewheel for 081-1 (1/2” × 1/8”) roller chain.

  • Chain inner width: 3.3 mm
  • Chain roller Ø: 7.75 mm
  • Tooth radius r3: 13 mm
  • Radius width C: 1 mm
  • Plate tooth width B1: 3 mm
  • From Z 30 the width of the disk wheel increases to h = 4 mm
  • From Z 90 the width of the disk wheel increases to h = 6 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20110008 8 8 mm 37.2 mm 33.18 mm 0.02 kg —
20110009 9 8 mm 41.5 mm 37.13 mm 0.02 kg —
20110010 10 8 mm 46.2 mm 41.1 mm 0.02 kg
20110011 11 8 mm 49.6 mm 45.07 mm 0.03 kg
20110012 12 8 mm 53.9 mm 49.07 mm 0.04 kg
20110013 13 8 mm 58.4 mm 53.06 mm 0.04 kg
20110014 14 8 mm 62.8 mm 57.07 mm 0.05 kg
20110015 15 8 mm 66.8 mm 61.09 mm 0.06 kg
20110016 16 10 mm 70.9 mm 65.1 mm 0.07 kg
20110017 17 10 mm 74.9 mm 69.11 mm 0.08 kg
20110018 18 10 mm 78.9 mm 73.14 mm 0.09 kg
20110019 19 10 mm 82.9 mm 77.16 mm 0.1 kg
20110020 20 10 mm 86.9 mm 81.19 mm 0.11 kg
20110021 21 10 mm 91 mm 85.22 mm 0.11 kg
20110022 22 10 mm 95 mm 89.24 mm 0.13 kg —
20110023 23 10 mm 99 mm 93.27 mm 0.15 kg
20110024 24 10 mm 103 mm 97.29 mm 0.16 kg
20110025 25 10 mm 107.1 mm 101.33 mm 0.17 kg
20110026 26 12 mm 111.2 mm 105.36 mm 0.26 kg
20110027 27 12 mm 115.4 mm 109.4 mm 0.28 kg
20110028 28 12 mm 119.4 mm 113.42 mm 0.32 kg
20110029 29 12 mm 123.4 mm 117.46 mm 0.33 kg
20110030 30 12 mm 127.5 mm 121.5 mm 0.35 kg
20110032 32 12 mm 135.5 mm 129.56 mm 0.4 kg
20110033 33 12 mm 139.6 mm 133.6 mm 0.43 kg
20110034 34 12 mm 143.6 mm 137.64 mm 0.46 kg
20110035 35 12 mm 147.6 mm 141.68 mm 0.49 kg
20110036 36 16 mm 151.7 mm 145.72 mm 0.51 kg
20110037 37 16 mm 155.7 mm 149.76 mm 0.55 kg
20110038 38 16 mm 159.8 mm 153.8 mm 0.58 kg
20110039 39 16 mm 163.8 mm 157.83 mm 0.61 kg
20110040 40 16 mm 167.8 mm 161.87 mm 0.64 kg
20110042 42 16 mm 175.4 mm 169.95 mm 0.69 kg
20110044 44 16 mm 183.5 mm 178.03 mm 0.79 kg —
20110045 45 16 mm 187.5 mm 182.07 mm 0.82 kg
20110046 46 20 mm 191.6 mm 186.1 mm 0.88 kg
20110048 48 20 mm 199.7 mm 194.18 mm 0.94 kg
20110050 50 20 mm 207.8 mm 202.26 mm 1.06 kg
20110052 52 20 mm 215.9 mm 210.34 mm 1.14 kg
20110054 54 20 mm 224 mm 218.43 mm 1.19 kg
20110055 55 20 mm 228 mm 222.46 mm 1.25 kg
20110056 56 20 mm 232.1 mm 226.5 mm 1.3 kg
20110057 57 20 mm 236.1 mm 230.54 mm 1.35 kg
20110058 58 20 mm 240.2 mm 234.58 mm 1.45 kg
20110060 60 20 mm 248.2 mm 242.66 mm 1.5 kg
20110065 65 20 mm 268.8 mm 262.86 mm 1.61 kg
20110068 68 25 mm 280.9 mm 274.99 mm 1.87 kg
20110070 70 25 mm 289 mm 283.07 mm 2.05 kg
20110076 76 25 mm 313.3 mm 307.33 mm 2.19 kg
20110080 80 25 mm 329.4 mm 323.48 mm 2.42 kg
20110090 90 25 mm 369.9 mm 363.9 mm 4.53 kg
20110095 95 25 mm 390.1 mm 384.1 mm 5.0 kg
20110100 100 25 mm 410.3 mm 404.31 mm 5.61 kg
20110114 114 25 mm 466.9 mm 460.9 mm 7.42 kg
20110120 120 25 mm 491.2 mm 486.16 mm 8.0 kg

Product Information

Standard
DIN 8187 - ISO/R 606
Chain Type
081-1
Pitch
12.7 mm
