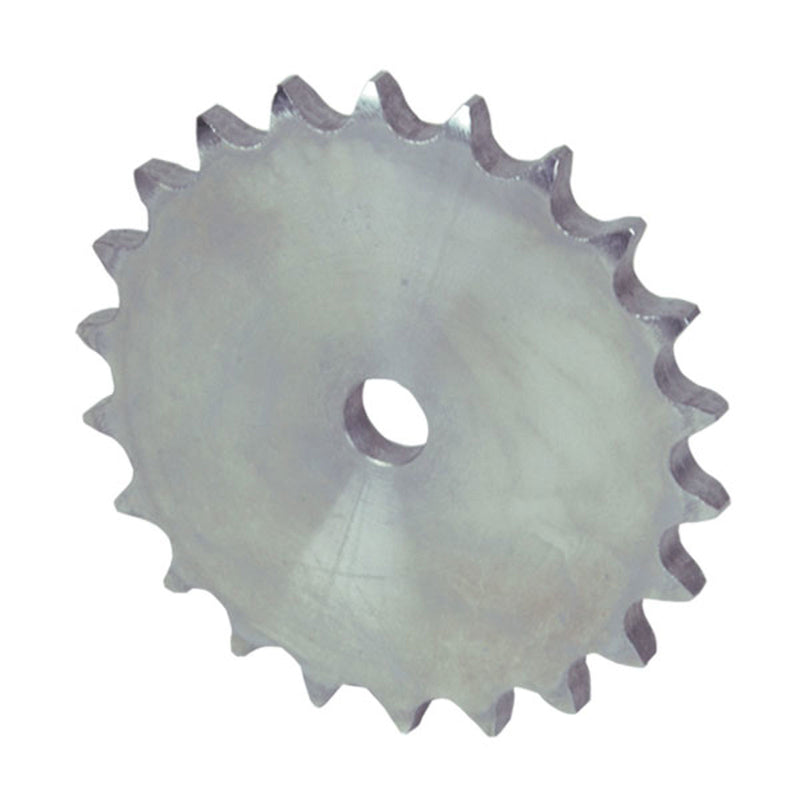

Chiaravalli Platewheel 083-1 / 084-1 Simplex (1/2” × 3/16”) — product photo
Chiaravalli

Platewheel 083-1 / 084-1 Simplex (1/2” × 3/16”)

Simplex platewheel for 083-1 / 084-1 (1/2” × 3/16”) roller chain.

  • Chain inner width: 4.88 mm
  • Chain roller Ø: 7.75 mm
  • Tooth radius r3: 13 mm
  • Radius width C: 1.3 mm
  • Plate tooth width B1: 4.3 mm
  • From Z 90 the width of the disk wheel increases to h = 6 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20111008 8 8 mm 38.5 mm 33.18 mm 0.02 kg
20111009 9 8 mm 41.5 mm 37.13 mm 0.03 kg
20111010 10 8 mm 46.2 mm 41.1 mm 0.04 kg
20111011 11 8 mm 49.6 mm 45.07 mm 0.05 kg
20111012 12 8 mm 53.9 mm 49.07 mm 0.05 kg
20111013 13 8 mm 58.4 mm 53.06 mm 0.06 kg
20111014 14 8 mm 62.8 mm 57.07 mm 0.08 kg
20111015 15 8 mm 66.8 mm 61.09 mm 0.09 kg
20111016 16 10 mm 70.9 mm 65.1 mm 0.1 kg
20111017 17 10 mm 74.9 mm 69.11 mm 0.12 kg
20111018 18 10 mm 78.9 mm 73.14 mm 0.13 kg
20111019 19 10 mm 82.9 mm 77.16 mm 0.15 kg —
20111020 20 10 mm 86.9 mm 81.19 mm 0.16 kg
20111021 21 10 mm 91 mm 85.22 mm 0.18 kg
20111022 22 10 mm 95 mm 89.24 mm 0.2 kg
20111023 23 10 mm 99 mm 93.27 mm 0.22 kg
20111024 24 10 mm 103 mm 97.29 mm 0.24 kg
20111025 25 10 mm 107.1 mm 101.33 mm 0.26 kg
20111026 26 12 mm 111.2 mm 105.36 mm 0.28 kg
20111027 27 12 mm 115.4 mm 109.4 mm 0.3 kg —
20111028 28 12 mm 119.4 mm 113.42 mm 0.33 kg
20111029 29 12 mm 123.4 mm 117.46 mm 0.35 kg
20111030 30 12 mm 127.5 mm 121.5 mm 0.38 kg
20111031 31 12 mm 131.5 mm 125.54 mm 0.4 kg
20111032 32 12 mm 135.5 mm 129.56 mm 0.43 kg
20111033 33 12 mm 139.6 mm 133.6 mm 0.46 kg
20111034 34 12 mm 143.6 mm 137.64 mm 0.49 kg
20111035 35 12 mm 147.6 mm 141.68 mm 0.52 kg
20111036 36 16 mm 151.7 mm 145.72 mm 0.55 kg
20111037 37 16 mm 155.7 mm 149.76 mm 0.58 kg
20111038 38 16 mm 159.8 mm 153.8 mm 0.62 kg
20111039 39 16 mm 163.8 mm 157.83 mm 0.65 kg
20111040 40 16 mm 167.8 mm 161.87 mm 0.68 kg
20111041 41 16 mm 171.4 mm 165.91 mm 0.72 kg
20111042 42 16 mm 175.4 mm 169.95 mm 0.76 kg
20111043 43 16 mm 179.5 mm 173.99 mm 0.8 kg
20111044 44 16 mm 183.5 mm 178.03 mm 0.83 kg
20111045 45 16 mm 187.5 mm 182.07 mm 0.87 kg
20111046 46 20 mm 191.6 mm 186.1 mm 0.91 kg
20111047 47 20 mm 195.6 mm 190.14 mm 0.95 kg
20111048 48 20 mm 199.7 mm 194.18 mm 0.99 kg
20111049 49 20 mm 203.7 mm 198.22 mm 1.04 kg
20111050 50 20 mm 207.8 mm 202.26 mm 1.08 kg
20111051 51 20 mm 211.8 mm 206.3 mm 1.12 kg
20111052 52 20 mm 215.9 mm 210.34 mm 1.17 kg
20111053 53 20 mm 219.9 mm 214.37 mm 1.22 kg
20111054 54 20 mm 224 mm 218.43 mm 1.26 kg
20111055 55 20 mm 228 mm 222.46 mm 1.31 kg
20111056 56 20 mm 232.1 mm 226.5 mm 1.36 kg
20111057 57 20 mm 236.1 mm 230.54 mm 1.41 kg
20111058 58 20 mm 240.2 mm 234.58 mm 1.46 kg
20111060 60 20 mm 248.2 mm 242.66 mm 1.57 kg
20111062 62 20 mm 256.7 mm 250.75 mm 1.68 kg
20111064 64 20 mm 264.8 mm 258.82 mm 1.8 kg
20111065 65 20 mm 268.8 mm 262.86 mm 1.85 kg
20111068 68 25 mm 280.9 mm 274.99 mm 2.02 kg
20111070 70 25 mm 289 mm 283.07 mm 2.14 kg
20111072 72 25 mm 297.1 mm 291.16 mm 2.27 kg
20111076 76 25 mm 313.3 mm 307.33 mm 2.54 kg
20111085 85 25 mm 349.7 mm 343.7 mm 3.19 kg
20111090 90 25 mm 369.9 mm 363.9 mm 3.86 kg
20111095 95 25 mm 390.1 mm 384.1 mm 4.95 kg —
20111100 100 25 mm 410.3 mm 404.31 mm 5.83 kg
20111110 110 25 mm 450.7 mm 444.74 mm 7.07 kg
20111114 114 25 mm 466.9 mm 460.9 mm 7.61 kg
20111120 120 25 mm 491.2 mm 485.16 mm 8.5 kg
20111125 125 25 mm 511.4 mm 505.37 mm 9.17 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
083-1 / 084-1
Pitch
12.7 mm
