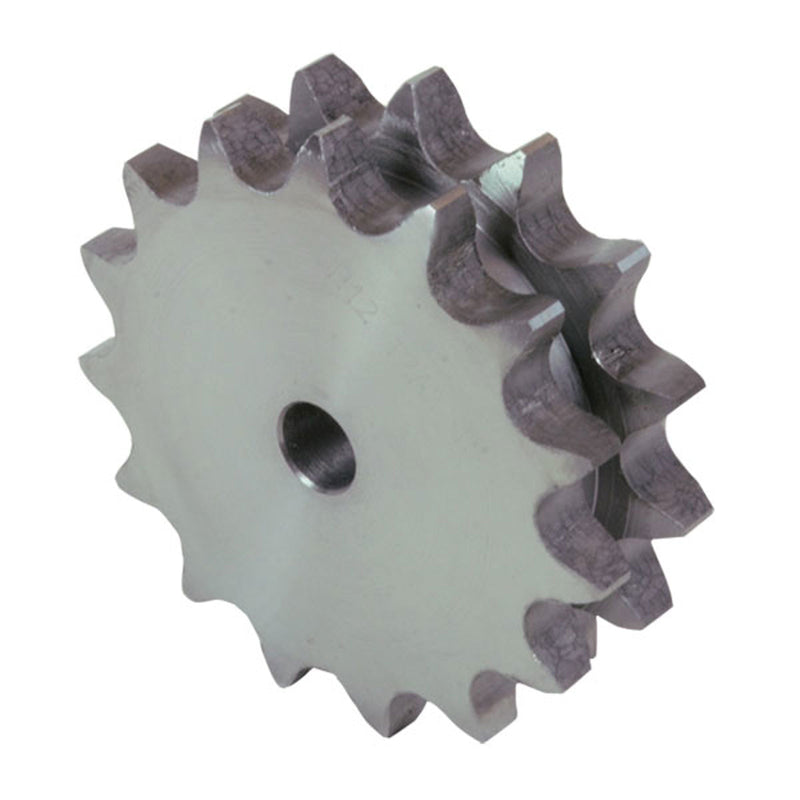

Chiaravalli Platewheel 08B-2 Duplex (1/2” × 5/16”) — product photo
Chiaravalli

Platewheel 08B-2 Duplex (1/2” × 5/16”)

Duplex platewheel for 08B-2 (1/2” × 5/16”) roller chain.

  • Chain inner width: 7.75 mm
  • Chain roller Ø: 8.51 mm
  • Tooth radius r3: 13 mm
  • Radius width C: 1.3 mm
  • Plate tooth width b1: 7 mm
  • Plate tooth width B2: 21 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20212008 8 10 mm 37.68 mm 33.18 mm 0.07 kg
20212009 9 10 mm 41.62 mm 37.13 mm 0.1 kg
20212010 10 10 mm 45.59 mm 41.1 mm 0.13 kg
20212011 11 12 mm 49.57 mm 45.07 mm 0.17 kg
20212012 12 12 mm 53.56 mm 49.07 mm 0.21 kg
20212013 13 12 mm 57.56 mm 53.06 mm 0.25 kg
20212014 14 12 mm 61.56 mm 57.07 mm 0.3 kg
20212015 15 12 mm 65.57 mm 61.09 mm 0.36 kg
20212016 16 14 mm 69.59 mm 65.1 mm 0.41 kg
20212017 17 14 mm 73.61 mm 69.11 mm 0.47 kg
20212018 18 14 mm 77.63 mm 73.14 mm 0.54 kg
20212019 19 14 mm 81.65 mm 77.16 mm 0.61 kg
20212020 20 14 mm 85.67 mm 81.19 mm 0.68 kg
20212021 21 16 mm 89.7 mm 85.22 mm 0.75 kg
20212022 22 16 mm 93.73 mm 89.24 mm 0.83 kg
20212023 23 16 mm 97.76 mm 93.27 mm 0.92 kg
20212024 24 16 mm 101.79 mm 97.29 mm 1.01 kg
20212025 25 16 mm 105.8 mm 101.33 mm 1.1 kg
20212026 26 16 mm 109.85 mm 105.36 mm 1.2 kg
20212027 27 16 mm 113.89 mm 109.4 mm 1.31 kg
20212028 28 16 mm 117.92 mm 113.42 mm 1.42 kg
20212029 29 16 mm 121.95 mm 117.46 mm 1.53 kg
20212030 30 16 mm 125.99 mm 121.5 mm 1.65 kg
20212031 31 16 mm 130.02 mm 125.54 mm 1.77 kg
20212032 32 16 mm 134.06 mm 129.56 mm 1.9 kg
20212033 33 16 mm 138.1 mm 133.6 mm 2.02 kg
20212034 34 16 mm 142.13 mm 137.64 mm 2.16 kg
20212035 35 16 mm 146.17 mm 141.68 mm 2.3 kg
20212036 36 20 mm 150.21 mm 145.72 mm 2.42 kg
20212037 37 20 mm 154.24 mm 149.76 mm 2.56 kg
20212038 38 20 mm 158.28 mm 153.8 mm 2.71 kg
20212039 39 20 mm 162.32 mm 157.83 mm 2.87 kg
20212040 40 20 mm 166.36 mm 161.87 mm 3.03 kg
20212041 41 20 mm 170.4 mm 165.91 mm 3.2 kg
20212042 42 20 mm 174.43 mm 169.95 mm 3.36 kg
20212043 43 20 mm 178.47 mm 173.99 mm 3.53 kg
20212044 44 20 mm 182.5 mm 178.03 mm 3.71 kg
20212045 45 20 mm 186.5 mm 182.07 mm 3.89 kg
20212046 46 20 mm 190.59 mm 186.1 mm 4.07 kg
20212047 47 20 mm 194.63 mm 190.14 mm 4.36 kg
20212048 48 20 mm 198.67 mm 194.18 mm 4.96 kg
20212049 49 20 mm 202.71 mm 198.22 mm 4.66 kg
20212050 50 20 mm 206.75 mm 202.26 mm 4.86 kg
20212051 51 25 mm 210.79 mm 206.3 mm 5.03 kg
20212052 52 25 mm 214.83 mm 210.34 mm 5.24 kg
20212053 53 25 mm 218.87 mm 214.37 mm 5.46 kg
20212054 54 25 mm 222.91 mm 218.43 mm 5.68 kg
20212055 55 25 mm 226.95 mm 222.46 mm 5.9 kg
20212056 56 25 mm 230.99 mm 226.5 mm 6.13 kg
20212057 57 25 mm 235.03 mm 230.54 mm 6.36 kg
20212058 58 25 mm 239.07 mm 234.58 mm 6.59 kg
20212060 60 25 mm 247.15 mm 242.66 mm 7.08 kg
20212062 62 25 mm 255.23 mm 250.75 mm 7.6 kg
20212064 64 25 mm 263.32 mm 258.82 mm 8.1 kg
20212065 65 25 mm 267.36 mm 262.86 mm 8.36 kg
20212068 68 25 mm 279.48 mm 274.99 mm 9.17 kg
20212070 70 25 mm 287.56 mm 283.07 mm 9.75 kg
20212072 72 25 mm 295.64 mm 291.16 mm 10.0 kg
20212075 75 25 mm 307.77 mm 303.27 mm 11.24 kg
20212076 76 25 mm 311.81 mm 307.33 mm 11.35 kg
20212080 80 25 mm 327.98 mm 323.48 mm 12.05 kg
20212085 85 25 mm 348.18 mm 343.7 mm 14.01 kg
20212090 90 25 mm 368.39 mm 363.9 mm 15.85 kg
20212095 95 25 mm 388.6 mm 384.11 mm 18.0 kg
20212100 100 25 mm 408.81 mm 404.32 mm 20.3 kg
20212110 110 25 mm 449.23 mm 444.74 mm 24.66 kg
20212114 114 25 mm 465.4 mm 460.9 mm 26.0 kg
20212120 120 25 mm 489.65 mm 485.16 mm 29.45 kg
20212125 125 25 mm 509.86 mm 505.37 mm 32.0 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
08B-2
Pitch
12.7 mm
