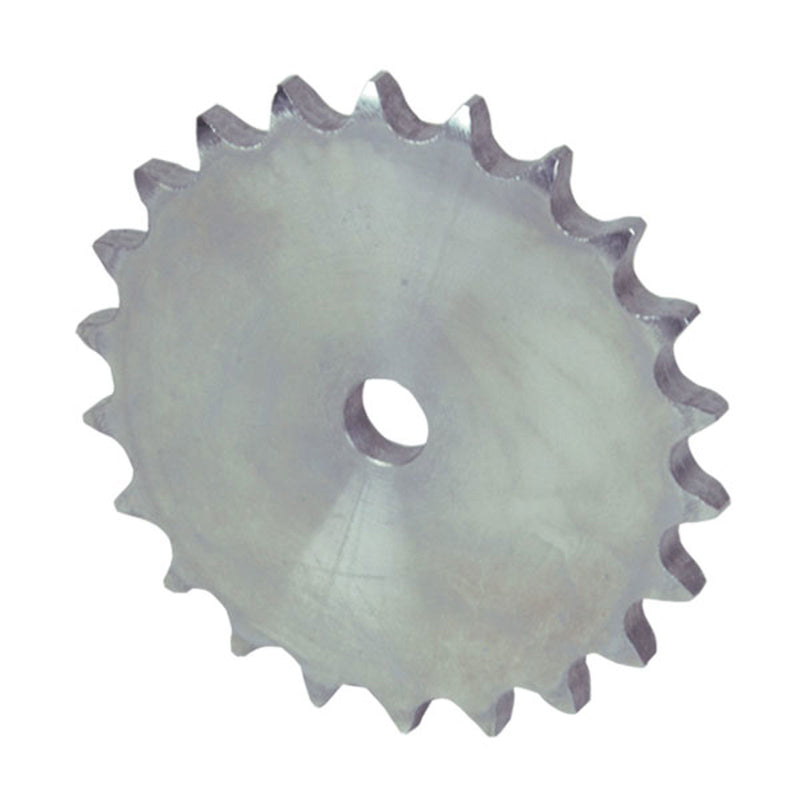

Chiaravalli Platewheel 08B-1 Simplex (1/2” × 5/16”) — product photo
Chiaravalli

Platewheel 08B-1 Simplex (1/2” × 5/16”)

Simplex platewheel for 08B-1 (1/2” × 5/16”) roller chain.

  • Chain inner width: 7.75 mm
  • Chain roller Ø: 8.51 mm
  • Tooth radius r3: 13 mm
  • Radius width C: 1.3 mm
  • Plate tooth width B1: 7.2 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20112008 8 8 mm 37.68 mm 33.19 mm 0.03 kg
20112009 9 8 mm 41.62 mm 37.13 mm 0.04 kg
20112010 10 8 mm 45.59 mm 41.1 mm 0.06 kg
20112011 11 10 mm 49.57 mm 45.08 mm 0.07 kg
20112012 12 10 mm 53.56 mm 49.07 mm 0.08 kg
20112013 13 10 mm 57.56 mm 53.07 mm 0.1 kg
20112014 14 10 mm 61.56 mm 57.07 mm 0.12 kg
20112015 15 10 mm 65.57 mm 61.08 mm 0.14 kg
20112016 16 10 mm 69.59 mm 65.1 mm 0.16 kg
20112017 17 10 mm 73.61 mm 69.12 mm 0.18 kg
20112018 18 10 mm 77.63 mm 73.14 mm 0.2 kg
20112019 19 10 mm 81.65 mm 77.16 mm 0.23 kg
20112020 20 10 mm 85.67 mm 81.18 mm 0.26 kg
20112021 21 12 mm 89.7 mm 85.21 mm 0.28 kg
20112022 22 12 mm 93.73 mm 89.24 mm 0.31 kg
20112023 23 12 mm 97.76 mm 93.27 mm 0.34 kg
20112024 24 12 mm 101.79 mm 97.3 mm 0.38 kg
20112025 25 12 mm 105.8 mm 101.33 mm 0.41 kg
20112026 26 16 mm 109.85 mm 105.36 mm 0.44 kg
20112027 27 16 mm 113.89 mm 109.4 mm 0.48 kg
20112028 28 16 mm 117.92 mm 113.42 mm 0.52 kg
20112029 29 16 mm 121.95 mm 117.46 mm 0.56 kg
20112030 30 16 mm 125.99 mm 121.5 mm 0.6 kg
20112031 31 16 mm 130.02 mm 125.53 mm 0.64 kg
20112032 32 16 mm 134.06 mm 129.57 mm 0.68 kg
20112033 33 16 mm 138.1 mm 133.61 mm 0.73 kg
20112034 34 16 mm 142.13 mm 137.64 mm 0.78 kg
20112035 35 16 mm 146.17 mm 141.68 mm 0.83 kg
20112036 36 16 mm 150.21 mm 145.72 mm 0.88 kg
20112037 37 16 mm 154.24 mm 149.75 mm 0.93 kg
20112038 38 16 mm 158.28 mm 153.79 mm 0.98 kg
20112039 39 16 mm 162.32 mm 157.83 mm 1.03 kg
20112040 40 16 mm 166.36 mm 161.87 mm 1.09 kg
20112041 41 20 mm 170.4 mm 165.91 mm 1.14 kg
20112042 42 20 mm 174.43 mm 169.94 mm 1.2 kg
20112043 43 20 mm 178.47 mm 173.98 mm 1.26 kg —
20112044 44 20 mm 182.51 mm 178.02 mm 1.32 kg
20112045 45 20 mm 186.5 mm 182.06 mm 1.38 kg
20112046 46 20 mm 190.59 mm 186.1 mm 1.45 kg
20112047 47 20 mm 194.63 mm 190.14 mm 1.51 kg
20112048 48 20 mm 198.67 mm 194.18 mm 1.58 kg
20112049 49 20 mm 202.71 mm 198.22 mm 1.65 kg
20112050 50 20 mm 206.75 mm 202.26 mm 1.72 kg
20112051 51 20 mm 210.79 mm 206.3 mm 1.8 kg
20112052 52 20 mm 214.83 mm 210.34 mm 1.87 kg
20112053 53 20 mm 218.87 mm 214.38 mm 1.94 kg
20112054 54 20 mm 222.91 mm 218.42 mm 2.02 kg
20112055 55 20 mm 226.95 mm 222.46 mm 2.1 kg
20112056 56 20 mm 230.99 mm 226.5 mm 2.17 kg
20112057 57 20 mm 235.03 mm 230.54 mm 2.25 kg
20112058 58 20 mm 239.07 mm 234.58 mm 2.34 kg
20112060 60 20 mm 247.15 mm 242.66 mm 2.5 kg
20112062 62 25 mm 255.23 mm 250.74 mm 2.67 kg
20112064 64 25 mm 263.32 mm 258.83 mm 2.85 kg
20112065 65 25 mm 267.36 mm 262.87 mm 2.94 kg
20112066 66 25 mm 271.4 mm 266.91 mm 3.03 kg
20112068 68 25 mm 279.48 mm 274.99 mm 3.22 kg
20112070 70 25 mm 287.56 mm 283.07 mm 3.42 kg
20112072 72 25 mm 295.64 mm 291.15 mm 3.62 kg
20112075 75 25 mm 307.77 mm 303.28 mm 3.94 kg
20112076 76 25 mm 311.81 mm 307.32 mm 4.05 kg
20112078 78 25 mm 319.89 mm 315.4 mm 4.27 kg
20112080 80 25 mm 327.98 mm 323.49 mm 4.5 kg
20112085 85 25 mm 348.18 mm 343.69 mm 5.62 kg
20112090 90 25 mm 368.39 mm 363.9 mm 6.31 kg
20112095 95 25 mm 388.6 mm 384.11 mm 7.05 kg
20112100 100 25 mm 408.81 mm 404.32 mm 7.82 kg
20112110 110 25 mm 449.23 mm 444.74 mm 9.5 kg
20112114 114 25 mm 465.4 mm 460.91 mm 10.21 kg
20112120 120 25 mm 489.65 mm 485.16 mm 11.32 kg
20112125 125 25 mm 509.86 mm 505.37 mm 12.31 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
08B-1
Pitch
12.7 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
