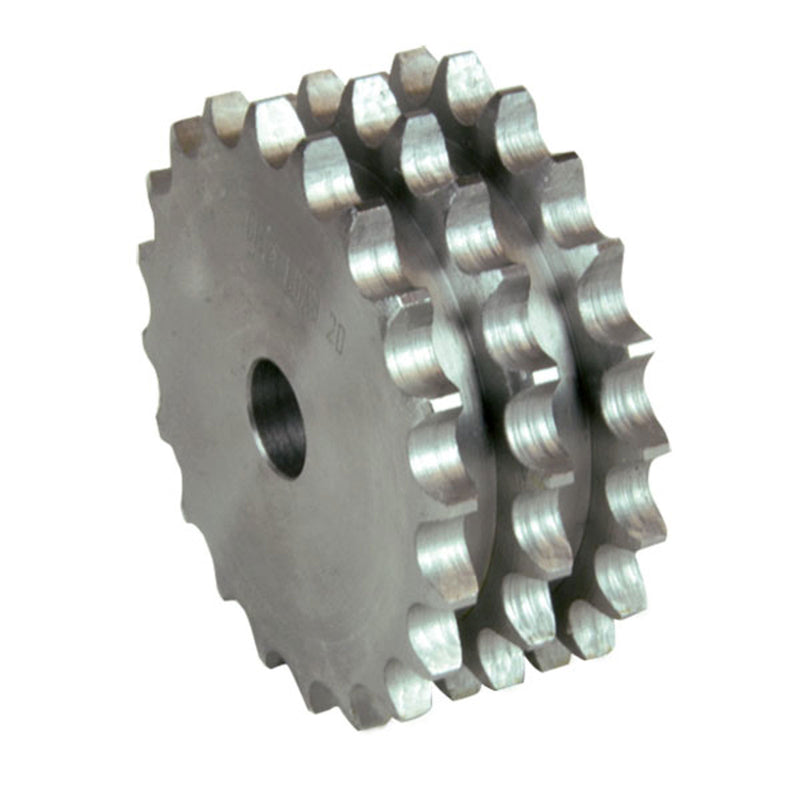

Chiaravalli Platewheel 08B-3 Triplex (1/2” × 5/16”) — product photo
Chiaravalli

Platewheel 08B-3 Triplex (1/2” × 5/16”)

Triplex platewheel for 08B-3 (1/2” × 5/16”) roller chain.

  • Chain inner width: 7.75 mm
  • Chain roller Ø: 8.51 mm
  • Tooth radius r3: 13 mm
  • Radius width C: 1.3 mm
  • Plate tooth width b1: 7 mm
  • Plate tooth width B3: 34.9 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20312008 8 10 mm 37.68 mm 33.18 mm 0.11 kg
20312009 9 12 mm 41.62 mm 37.13 mm 0.16 kg
20312010 10 12 mm 45.59 mm 41.1 mm 0.21 kg —
20312011 11 14 mm 49.57 mm 45.07 mm 0.26 kg
20312012 12 14 mm 53.56 mm 49.07 mm 0.33 kg
20312013 13 14 mm 57.56 mm 53.06 mm 0.4 kg
20312014 14 14 mm 61.56 mm 57.07 mm 0.48 kg
20312015 15 14 mm 65.57 mm 61.09 mm 0.57 kg —
20312016 16 16 mm 69.59 mm 65.1 mm 0.64 kg —
20312017 17 16 mm 73.61 mm 69.11 mm 0.74 kg
20312018 18 16 mm 77.63 mm 73.14 mm 0.85 kg
20312019 19 16 mm 81.65 mm 77.16 mm 0.97 kg
20312020 20 16 mm 85.67 mm 81.19 mm 1.09 kg
20312021 21 20 mm 89.7 mm 85.22 mm 1.22 kg
20312022 22 20 mm 93.73 mm 89.24 mm 1.36 kg
20312023 23 20 mm 97.76 mm 93.27 mm 1.5 kg
20312024 24 20 mm 101.79 mm 97.29 mm 1.63 kg
20312025 25 20 mm 105.8 mm 101.33 mm 1.81 kg
20312026 26 20 mm 109.85 mm 105.36 mm 1.98 kg
20312027 27 20 mm 113.89 mm 109.4 mm 2.15 kg
20312028 28 20 mm 117.92 mm 113.42 mm 2.33 kg
20312029 29 20 mm 121.95 mm 117.46 mm 2.52 kg
20312030 30 20 mm 125.99 mm 121.5 mm 2.71 kg
20312031 31 20 mm 130.02 mm 125.54 mm 2.94 kg
20312032 32 20 mm 134.06 mm 129.56 mm 3.09 kg
20312033 33 20 mm 138.1 mm 133.6 mm 3.3 kg
20312034 34 20 mm 142.13 mm 137.64 mm 3.53 kg
20312035 35 20 mm 146.17 mm 141.68 mm 3.76 kg
20312036 36 25 mm 150.21 mm 145.72 mm 3.99 kg
20312038 38 25 mm 158.28 mm 153.8 mm 4.49 kg
20312040 40 25 mm 166.36 mm 161.87 mm 5.0 kg
20312042 42 25 mm 174.43 mm 169.95 mm 5.51 kg
20312043 43 25 mm 178.47 mm 173.99 mm 5.8 kg
20312044 44 25 mm 182.51 mm 178.03 mm 6.09 kg
20312045 45 25 mm 186.5 mm 182.07 mm 6.39 kg
20312046 46 25 mm 190.59 mm 186.1 mm 6.7 kg
20312047 47 25 mm 194.63 mm 190.14 mm 7.0 kg
20312048 48 25 mm 198.67 mm 194.18 mm 7.33 kg
20312049 49 25 mm 202.71 mm 198.22 mm 7.84 kg
20312050 50 25 mm 206.75 mm 202.26 mm 8.0 kg
20312052 52 25 mm 214.83 mm 210.34 mm 8.68 kg
20312053 53 25 mm 218.87 mm 214.37 mm 9.02 kg
20312054 54 25 mm 222.91 mm 218.43 mm 9.4 kg
20312055 55 25 mm 226.95 mm 222.46 mm 9.77 kg
20312056 56 25 mm 230.99 mm 226.5 mm 10.15 kg
20312057 57 25 mm 235.03 mm 230.54 mm 10.53 kg
20312060 60 25 mm 247.15 mm 242.66 mm 11.73 kg
20312062 62 25 mm 255.23 mm 250.75 mm 13.86 kg
20312064 64 25 mm 263.32 mm 258.82 mm 15.22 kg
20312065 65 25 mm 267.36 mm 262.86 mm 15.56 kg
20312068 68 25 mm 279.48 mm 274.99 mm 15.72 kg
20312070 70 25 mm 295.64 mm 283.07 mm 16.17 kg
20312072 72 25 mm 295.64 mm 291.16 mm 17.14 kg
20312075 75 25 mm 307.77 mm 303.27 mm 18.65 kg
20312076 76 25 mm 311.81 mm 307.33 mm 19.17 kg
20312080 80 25 mm 327.98 mm 323.48 mm 21.82 kg
20312085 85 25 mm 348.18 mm 343.7 mm 24.15 kg
20312090 90 25 mm 368.39 mm 363.9 mm 27.17 kg
20312095 95 25 mm 388.6 mm 384.11 mm 30.36 kg
20312100 100 25 mm 408.81 mm 404.32 mm 33.73 kg
20312114 114 25 mm 465.4 mm 460.9 mm 44.1 kg
20312120 120 25 mm 489.65 mm 485.16 mm 49.7 kg
20312125 125 25 mm 509.86 mm 505.37 mm 55.21 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
08B-3
Pitch
12.7 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
