Chiaravalli

Platewheel 28B-2 Duplex (1” 3/4 × 1” 1/4)

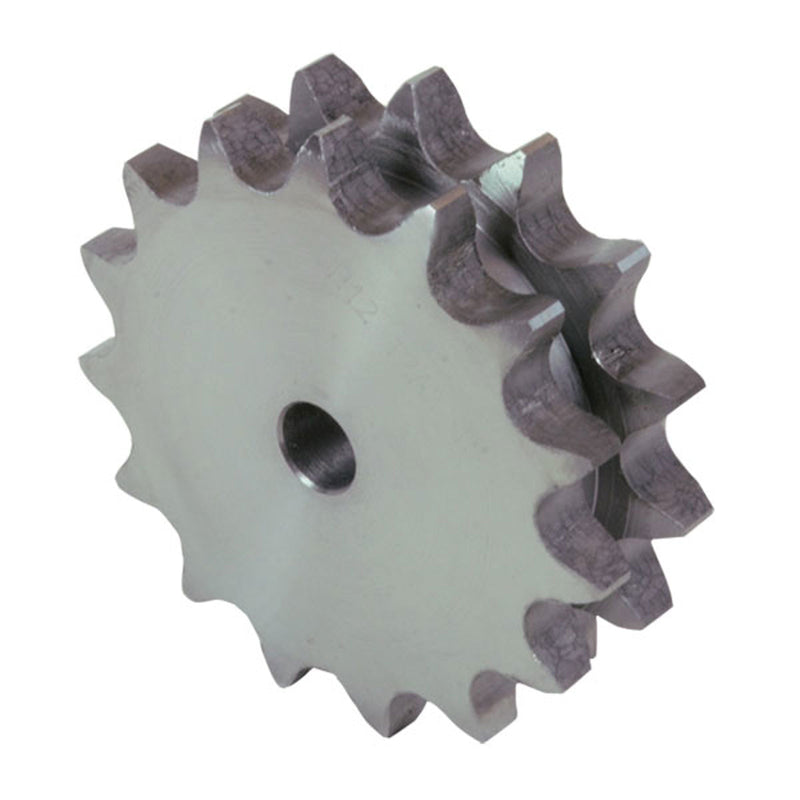

Name: Chiaravalli Platewheel 28B-2 Duplex (1” 3/4 × 1” 1/4)
Brand: Chiaravalli

Duplex platewheel for 28B-2 (1” 3/4 × 1” 1/4) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`20244008`	`8`	`25` mm	`132` mm	`116.15` mm	`4.01` kg
`20244009`	`9`	`25` mm	`148.4` mm	`129.96` mm	`5.48` kg
`20244010`	`10`	`25` mm	`162.3` mm	`143.85` mm	`7.17` kg
`20244011`	`11`	`25` mm	`176.3` mm	`157.77` mm	`8.92` kg
`20244012`	`12`	`25` mm	`189.5` mm	`171.74` mm	`11.04` kg
`20244013`	`13`	`25` mm	`204.2` mm	`185.75` mm	`13.38` kg
`20244014`	`14`	`25` mm	`218.2` mm	`199.76` mm	`15.94` kg
`20244015`	`15`	`25` mm	`232.3` mm	`213.79` mm	`18.72` kg
`20244016`	`16`	`30` mm	`246.3` mm	`227.84` mm	`21.71` kg
`20244017`	`17`	`30` mm	`260` mm	`241.91` mm	`24.92` kg
`20244018`	`18`	`30` mm	`274` mm	`255.98` mm	`28.36` kg
`20244019`	`19`	`30` mm	`289` mm	`270.06` mm	`32.0` kg
`20244020`	`20`	`30` mm	`303` mm	`284.15` mm	`35.87` kg
`20244021`	`21`	`30` mm	`317` mm	`298.24` mm	`39.96` kg
`20244022`	`22`	`30` mm	`331` mm	`312.34` mm	`44.26` kg
`20244023`	`23`	`30` mm	`345` mm	`326.44` mm	`48.78` kg
`20244024`	`24`	`30` mm	`359` mm	`340.55` mm	`52.85` kg
`20244025`	`25`	`30` mm	`373` mm	`354.66` mm	`58.5` kg
`20244026`	`26`	`30` mm	`387` mm	`368.77` mm	`63.28` kg
`20244028`	`28`	`30` mm	`416` mm	`397` mm	`74.29` kg
`20244030`	`30`	`30` mm	`444` mm	`425.24` mm	`86.17` kg
`20244035`	`35`	`30` mm	`514` mm	`495.88` mm	`119.69` kg
`20244038`	`38`	`30` mm	`557` mm	`538.27` mm	`142.42` kg
`20244040`	`40`	`30` mm	`585` mm	`566.54` mm	`158.67` kg
`20244045`	`45`	`30` mm	`656` mm	`637.22` mm	`203.1` kg
`20244050`	`50`	`30` mm	`726` mm	`707.91` mm	`252.99` kg
`20244057`	`57`	`40` mm	`825` mm	`806.9` mm	`332.0` kg
`20244060`	`60`	`40` mm	`869` mm	`849.32` mm	`365.0` kg
`20244076`	`76`	`40` mm	`1095.5` mm	`1075.62` mm	`600.35` kg
