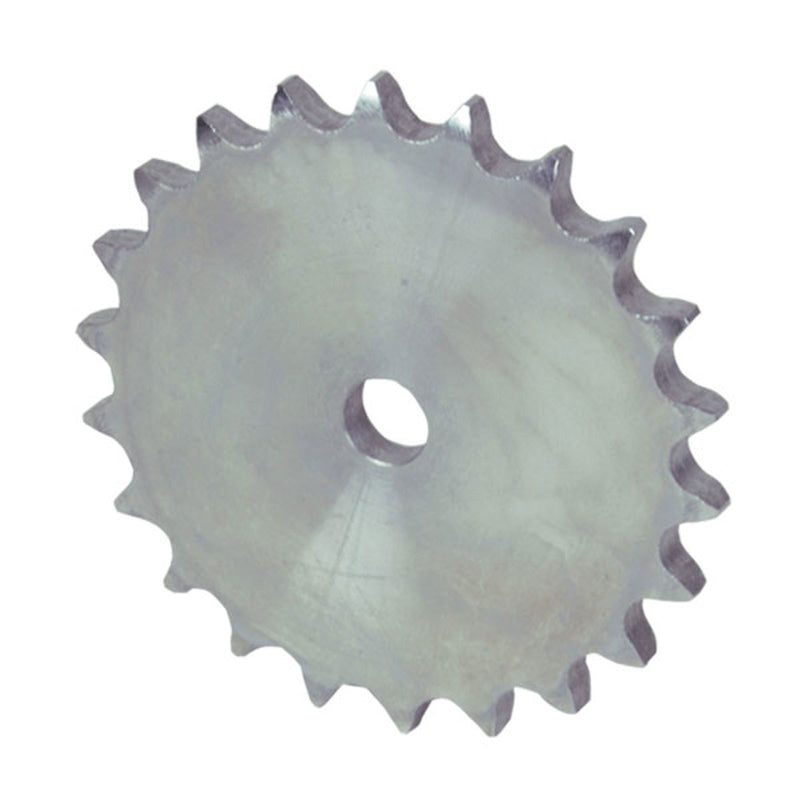

Chiaravalli Platewheel 28B-1 Simplex (1” 3/4 × 1” 1/4) — product photo
Chiaravalli

Platewheel 28B-1 Simplex (1” 3/4 × 1” 1/4)

Simplex platewheel for 28B-1 (1” 3/4 × 1” 1/4) roller chain.

  • Chain inner width: 30.99 mm
  • Chain roller Ø: 27.94 mm
  • Tooth radius r3: 44 mm
  • Radius width C: 5 mm
  • Plate tooth width B1: 29.4 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20144008 8 25 mm 132 mm 116.15 mm 1.71 kg
20144009 9 25 mm 148.4 mm 129.96 mm 2.26 kg
20144010 10 25 mm 162.3 mm 143.85 mm 2.88 kg
20144011 11 25 mm 176.3 mm 157.77 mm 3.53 kg
20144012 12 25 mm 189.5 mm 171.74 mm 4.29 kg
20144013 13 25 mm 204.2 mm 185.75 mm 5.12 kg
20144014 14 25 mm 218.2 mm 199.76 mm 6.03 kg
20144015 15 25 mm 232.3 mm 213.79 mm 7.01 kg
20144016 16 30 mm 246.3 mm 227.84 mm 8.02 kg
20144017 17 30 mm 260 mm 241.91 mm 9.14 kg
20144018 18 30 mm 274 mm 255.98 mm 10.34 kg
20144019 19 30 mm 289 mm 270.06 mm 11.61 kg
20144020 20 30 mm 303 mm 284.15 mm 12.95 kg
20144021 21 30 mm 317 mm 298.24 mm 14.37 kg
20144022 22 30 mm 331 mm 312.34 mm 15.86 kg
20144023 23 30 mm 345 mm 326.44 mm 17.42 kg
20144024 24 30 mm 359 mm 340.55 mm 19.05 kg
20144025 25 30 mm 373 mm 354.66 mm 20.76 kg
20144026 26 30 mm 387 mm 368.77 mm 22.54 kg
20144027 27 30 mm 401.4 mm 382.88 mm 24.39 kg
20144028 28 30 mm 416 mm 397 mm 26.32 kg
20144030 30 30 mm 444 mm 425.24 mm 30.38 kg
20144032 32 30 mm 472 mm 453.49 mm 34.74 kg
20144034 34 30 mm 500 mm 481.75 mm 39.38 kg
20144035 35 30 mm 514 mm 495.88 mm 41.82 kg
20144036 36 30 mm 529 mm 510.01 mm 44.32 kg
20144038 38 30 mm 557 mm 538.27 mm 49.55 kg
20144040 40 30 mm 585 mm 566.54 mm 55.07 kg
20144045 45 30 mm 656 mm 637.22 mm 70.13 kg
20144050 50 30 mm 726 mm 707.91 mm 87.01 kg
20144057 57 40 mm 825 mm 806.9 mm 113.56 kg
20144060 60 40 mm 869 mm 849.32 mm 126.08 kg
20144076 76 40 mm 1095.5 mm 1075.62 mm 203.89 kg —

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
28B-1
Pitch
44.45 mm
