Chiaravalli

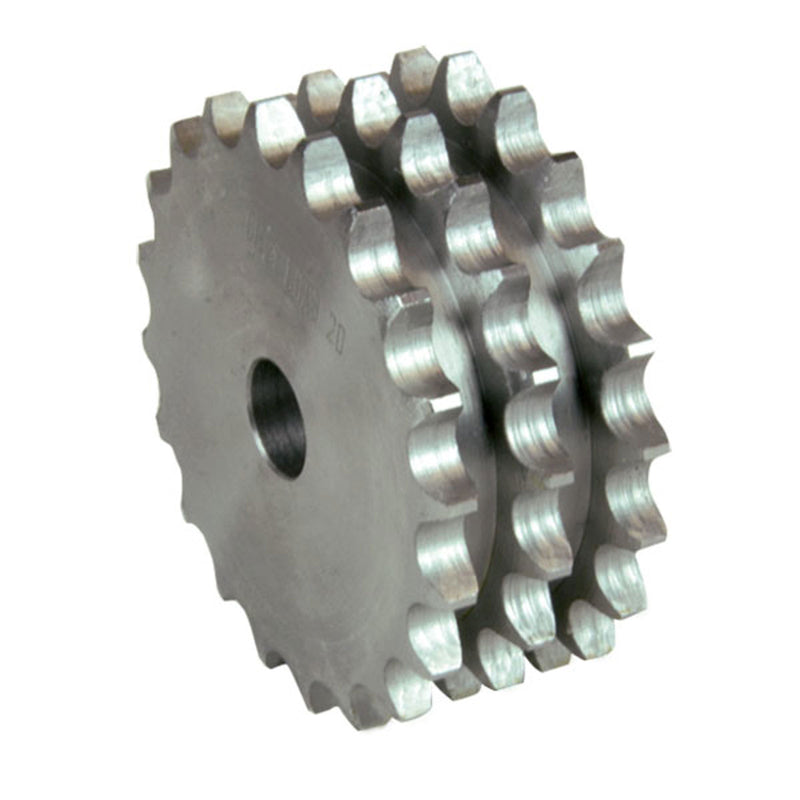

Platewheel 28B-3 Triplex (1” 3/4 × 1” 1/4)

Name: Chiaravalli Platewheel 28B-3 Triplex (1” 3/4 × 1” 1/4)
Brand: Chiaravalli

Triplex platewheel for 28B-3 (1” 3/4 × 1” 1/4) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`20344008`	`8`	`25` mm	`132` mm	`116.15` mm	`6.39` kg
`20344009`	`9`	`25` mm	`148.4` mm	`129.96` mm	`8.8` kg
`20344010`	`10`	`25` mm	`162.3` mm	`143.85` mm	`11.56` kg
`20344011`	`11`	`30` mm	`176.3` mm	`157.77` mm	`14.44` kg
`20344012`	`12`	`30` mm	`189.5` mm	`171.74` mm	`17.93` kg
`20344013`	`13`	`30` mm	`204.2` mm	`185.75` mm	`21.79` kg
`20344014`	`14`	`30` mm	`218.2` mm	`199.76` mm	`26.02` kg
`20344015`	`15`	`30` mm	`232.3` mm	`213.79` mm	`30.61` kg
`20344016`	`16`	`30` mm	`246.3` mm	`227.84` mm	`35.57` kg
`20344017`	`17`	`30` mm	`260` mm	`241.91` mm	`40.89` kg
`20344018`	`18`	`30` mm	`274` mm	`255.98` mm	`46.58` kg
`20344019`	`19`	`30` mm	`289` mm	`270.06` mm	`52.64` kg
`20344020`	`20`	`30` mm	`303` mm	`284.15` mm	`59.06` kg
`20344021`	`21`	`30` mm	`317` mm	`298.24` mm	`65.2` kg
`20344023`	`23`	`30` mm	`345` mm	`326.44` mm	`79.87` kg
`20344025`	`25`	`40` mm	`373` mm	`354.66` mm	`95.99` kg
`20344030`	`30`	`40` mm	`444` mm	`425.24` mm	`142.7` kg
`20344038`	`38`	`40` mm	`557` mm	`538.27` mm	`236.43` kg
`20344040`	`40`	`40` mm	`585` mm	`566.54` mm	`263.52` kg
`20344045`	`45`	`40` mm	`656` mm	`637.22` mm	`337.73` kg
`20344057`	`57`	`40` mm	`825` mm	`806.9` mm	`552.76` kg
`20344076`	`76`	`40` mm	`1095.5` mm	`1075.62` mm	`1000.97` kg
