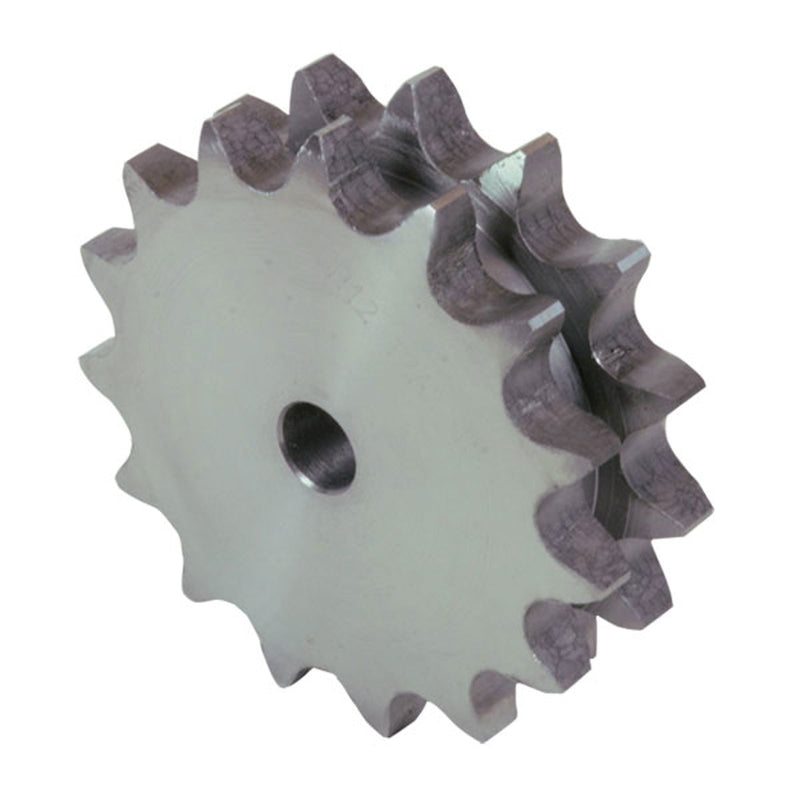

Chiaravalli Platewheel 16B-2 Duplex (1” × 17.02 mm) — product photo
Chiaravalli

Platewheel 16B-2 Duplex (1” × 17.02 mm)

Duplex platewheel for 16B-2 (1” × 17.02 mm) roller chain.

  • Chain inner width: 17.02 mm
  • Chain roller Ø: 15.88 mm
  • Tooth radius r3: 26 mm
  • Radius width C: 2.5 mm
  • Plate tooth width b1: 15.8 mm
  • Plate tooth width B2: 47.7 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20225008 8 16 mm 77.49 mm 66.37 mm 0.71 kg
20225009 9 16 mm 85.38 mm 74.26 mm 0.97 kg
20225010 10 16 mm 93.32 mm 82.2 mm 1.27 kg
20225011 11 20 mm 101.28 mm 90.14 mm 1.57 kg
20225012 12 20 mm 109.26 mm 98.14 mm 1.94 kg
20225013 13 20 mm 117.26 mm 106.14 mm 2.36 kg
20225014 14 20 mm 125.27 mm 114.15 mm 2.81 kg
20225015 15 20 mm 133.29 mm 122.17 mm 3.31 kg
20225016 16 20 mm 141.32 mm 130.2 mm 3.84 kg
20225017 17 20 mm 149.35 mm 138.23 mm 4.41 kg
20225018 18 20 mm 157.39 mm 146.27 mm 5.01 kg
20225019 19 20 mm 165.44 mm 154.32 mm 5.66 kg
20225020 20 20 mm 173.49 mm 162.37 mm 6.34 kg
20225021 21 25 mm 181.54 mm 170.42 mm 7.0 kg
20225022 22 25 mm 189.6 mm 178.48 mm 7.76 kg
20225023 23 25 mm 197.66 mm 186.54 mm 8.56 kg
20225024 24 25 mm 205.72 mm 194.6 mm 9.4 kg
20225025 25 25 mm 213.78 mm 202.66 mm 10.28 kg
20225026 26 25 mm 221.8 mm 210.72 mm 11.2 kg
20225027 27 25 mm 229.91 mm 218.79 mm 12.15 kg
20225028 28 25 mm 237.98 mm 226.86 mm 13.14 kg
20225029 29 25 mm 246.05 mm 234.93 mm 14.17 kg
20225030 30 25 mm 254.12 mm 243 mm 15.24 kg
20225031 31 25 mm 262.19 mm 251.07 mm 16.35 kg
20225032 32 25 mm 270.26 mm 259.14 mm 17.5 kg
20225033 33 25 mm 278.33 mm 267.21 mm 18.68 kg
20225034 34 25 mm 287.4 mm 275.28 mm 19.9 kg
20225035 35 25 mm 294.48 mm 283.36 mm 21.16 kg
20225036 36 25 mm 302.55 mm 291.43 mm 22.46 kg
20225037 37 25 mm 310.63 mm 299.51 mm 23.8 kg
20225038 38 25 mm 318.7 mm 307.58 mm 25.18 kg
20225039 39 25 mm 326.78 mm 315.66 mm 26.59 kg
20225040 40 25 mm 334.86 mm 323.74 mm 28.04 kg —
20225042 42 25 mm 351.01 mm 339.89 mm 31.07 kg
20225043 43 25 mm 359.09 mm 347.97 mm 32.65 kg
20225044 44 25 mm 367.17 mm 356.05 mm 34.24 kg
20225045 45 25 mm 375.24 mm 364.12 mm 35.89 kg
20225046 46 30 mm 383.32 mm 372.2 mm 37.56 kg
20225048 48 30 mm 399.48 mm 388.36 mm 41.06 kg
20225050 50 30 mm 415.64 mm 404.52 mm 44.7 kg
20225052 52 30 mm 431.8 mm 420.68 mm 48.4 kg
20225055 55 30 mm 456.04 mm 444.92 mm 54.38 kg
20225056 56 30 mm 464.12 mm 453 mm 56.24 kg
20225057 57 30 mm 472.2 mm 461.08 mm 58.35 kg
20225060 60 30 mm 496.45 mm 485.33 mm 64.9 kg
20225062 62 30 mm 512.61 mm 501.49 mm 69.46 kg
20225065 65 30 mm 536.85 mm 525.73 mm 76.59 kg
20225068 68 30 mm 561.1 mm 549.98 mm 84.07 kg
20225070 70 30 mm 577.27 mm 566.15 mm 89.24 kg
20225072 72 30 mm 593.43 mm 582.31 mm 94.6 kg
20225075 75 30 mm 617.68 mm 606.56 mm 102.85 kg
20225076 76 30 mm 625.76 mm 614.64 mm 105.69 kg
20225080 80 30 mm 658.09 mm 646.97 mm 117.43 kg
20225085 85 30 mm 698.51 mm 687.39 mm 132.96 kg
20225090 90 30 mm 738.92 mm 727.8 mm 149.46 kg
20225095 95 30 mm 779.34 mm 768.22 mm 166.91 kg
20225100 100 30 mm 819.76 mm 808.64 mm 181.33 kg
20225110 110 30 mm 900.6 mm 889.48 mm 225.0 kg
20225114 114 40 mm 932.93 mm 921.81 mm 242.01 kg
20225120 120 40 mm 981.44 mm 970.32 mm 270.0 kg
20225125 125 40 mm 1021.86 mm 1010.74 mm 291.84 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
16B-2
Pitch
25.4 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
