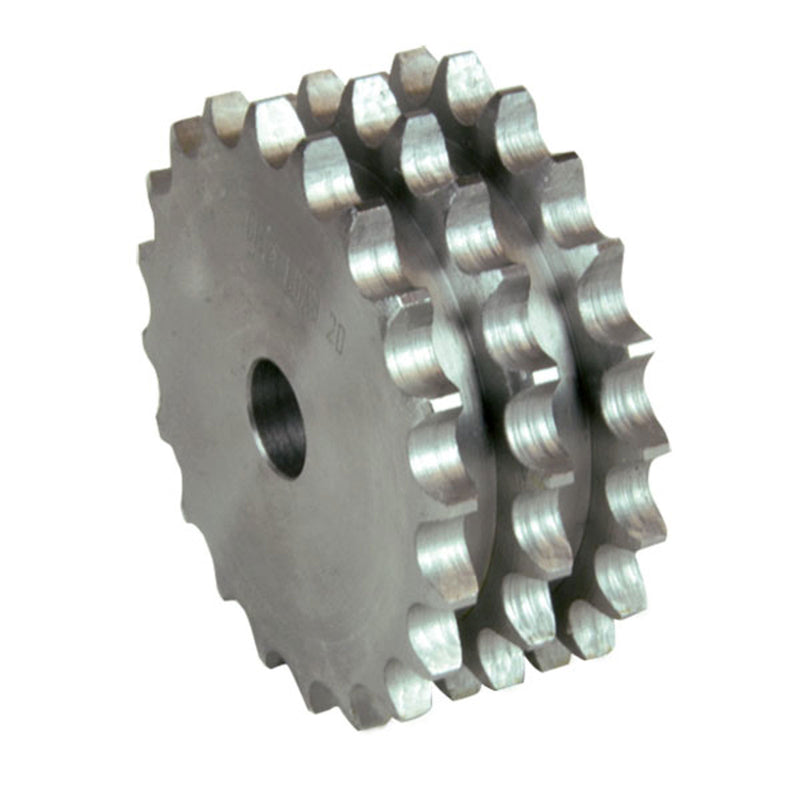

Platewheel 16B-3 Triplex (1” × 17.02 mm)

Triplex platewheel for 16B-3 (1” × 17.02 mm) roller chain.

  • Chain inner width: 17.02 mm
  • Chain roller Ø: 15.88 mm
  • Tooth radius r3: 26 mm
  • Radius width C: 2.5 mm
  • Plate tooth width b1: 15.8 mm
  • Plate tooth width B3: 79.6 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20325008 8 20 mm 77.49 mm 66.37 mm 1.13 kg
20325009 9 20 mm 85.38 mm 74.26 mm 1.56 kg
20325010 10 20 mm 93.32 mm 82.2 mm 2.05 kg
20325011 11 25 mm 101.28 mm 90.14 mm 2.53 kg
20325012 12 25 mm 109.26 mm 98.14 mm 3.15 kg
20325013 13 25 mm 117.26 mm 106.14 mm 3.84 kg
20325014 14 25 mm 125.27 mm 114.15 mm 4.59 kg
20325015 15 25 mm 133.29 mm 122.17 mm 5.4 kg
20325016 16 30 mm 141.32 mm 130.2 mm 6.16 kg
20325017 17 30 mm 149.35 mm 138.23 mm 7.11 kg
20325018 18 30 mm 157.39 mm 146.27 mm 8.11 kg
20325019 19 30 mm 165.44 mm 154.32 mm 9.18 kg
20325020 20 30 mm 173.49 mm 162.37 mm 10.31 kg
20325021 21 30 mm 181.54 mm 170.42 mm 11.51 kg
20325022 22 30 mm 189.6 mm 178.48 mm 12.77 kg
20325023 23 30 mm 197.66 mm 186.54 mm 14.1 kg
20325024 24 30 mm 205.72 mm 194.6 mm 14.49 kg
20325025 25 30 mm 213.78 mm 202.66 mm 16.94 kg
20325026 26 30 mm 221.8 mm 210.72 mm 18.33 kg
20325027 27 30 mm 229.91 mm 218.79 mm 19.91 kg
20325028 28 30 mm 237.98 mm 226.86 mm 21.55 kg
20325029 29 30 mm 246.05 mm 234.93 mm 23.26 kg
20325030 30 30 mm 254.12 mm 243 mm 25.04 kg
20325031 31 30 mm 262.19 mm 251.07 mm 26.88 kg
20325032 32 30 mm 270.26 mm 259.14 mm 28.78 kg
20325033 33 30 mm 278.33 mm 267.21 mm 30.75 kg
20325034 34 30 mm 287.4 mm 275.28 mm 32.78 kg
20325035 35 30 mm 294.48 mm 283.36 mm 34.88 kg
20325036 36 30 mm 302.55 mm 291.43 mm 37.04 kg
20325038 38 30 mm 318.7 mm 307.58 mm 41.56 kg
20325040 40 30 mm 334.86 mm 323.74 mm 46.42 kg
20325042 42 30 mm 351.01 mm 339.89 mm 51.34 kg
20325044 44 30 mm 367.17 mm 356.05 mm 56.63 kg
20325045 45 30 mm 375.24 mm 364.12 mm 59.36 kg
20325046 46 30 mm 383.32 mm 372.2 mm 62.17 kg
20325048 48 30 mm 399.48 mm 388.36 mm 67.97 kg
20325050 50 30 mm 415.64 mm 404.52 mm 74.01 kg
20325052 52 40 mm 431.8 mm 420.68 mm 79.98 kg
20325055 55 40 mm 456.04 mm 444.92 mm 89.92 kg
20325057 57 40 mm 472.2 mm 461.08 mm 96.87 kg
20325060 60 40 mm 496.45 mm 485.33 mm 107.78 kg
20325065 65 40 mm 536.85 mm 525.73 mm 127.24 kg
20325068 68 40 mm 561.1 mm 549.98 mm 137.78 kg
20325070 70 40 mm 577.27 mm 566.15 mm 148.31 kg
20325072 72 40 mm 593.43 mm 582.31 mm 157.18 kg
20325076 76 40 mm 625.76 mm 614.64 mm 175.7 kg
20325080 80 40 mm 658.09 mm 646.97 mm 195.25 kg
20325085 85 40 mm 698.51 mm 687.39 mm 221.13 kg
20325090 90 40 mm 738.92 mm 727.8 mm 248.61 kg
20325095 95 40 mm 779.34 mm 768.22 mm 277.7 kg
20325114 114 40 mm 932.93 mm 921.81 mm 402.85 kg
20325125 125 40 mm 1021.86 mm 1010.74 mm 485.9 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
16B-3
Pitch
25.4 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
