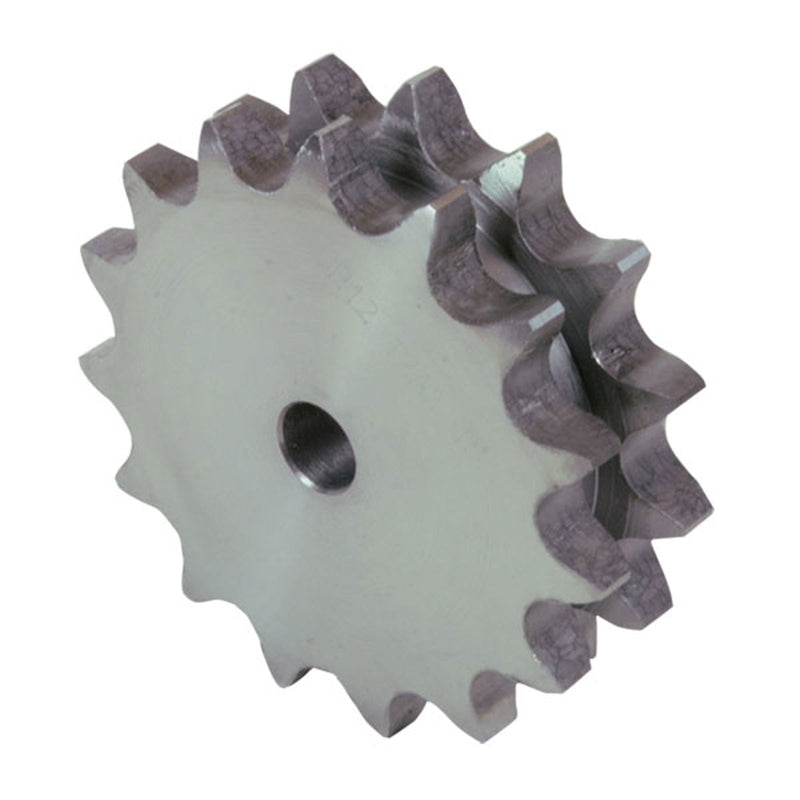

Chiaravalli Platewheel 32B-2 Duplex (2” × 1” 1/4) — product photo
Chiaravalli

Platewheel 32B-2 Duplex (2” × 1” 1/4)

Duplex platewheel for 32B-2 (2” × 1” 1/4) roller chain.

  • Chain inner width: 30.99 mm
  • Chain roller Ø: 29.21 mm
  • Tooth radius r3: 51 mm
  • Radius width C: 5 mm
  • Plate tooth width b1: 28.8 mm
  • Plate tooth width B2: 87.4 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20250008 8 25 mm 153.2 mm 132.69 mm 5.53 kg
20250009 9 25 mm 169 mm 148.54 mm 7.46 kg
20250010 10 25 mm 185 mm 164.44 mm 9.68 kg
20250011 11 30 mm 200.8 mm 180.34 mm 11.86 kg
20250012 12 30 mm 216.8 mm 196.29 mm 14.64 kg
20250013 13 30 mm 232.8 mm 212.29 mm 17.7 kg
20250014 14 30 mm 248.8 mm 228.29 mm 21.05 kg
20250015 15 30 mm 264.8 mm 244.3 mm 24.68 kg
20250016 16 30 mm 280.9 mm 260.4 mm 28.38 kg
20250017 17 30 mm 296.9 mm 276.4 mm 32.57 kg
20250018 18 30 mm 313 mm 292.55 mm 37.05 kg
20250019 19 30 mm 329.1 mm 308.66 mm 41.8 kg
20250020 20 30 mm 345.2 mm 324.71 mm 46.84 kg
20250021 21 30 mm 361.3 mm 340.82 mm 52.15 kg
20250022 22 30 mm 377.5 mm 356.98 mm 57.75 kg
20250023 23 30 mm 393.6 mm 373.08 mm 63.63 kg
20250024 24 30 mm 409.7 mm 389.18 mm 69.8 kg
20250025 25 30 mm 425.8 mm 405.33 mm 76.24 kg
20250026 26 30 mm 441.9 mm 421.44 mm 82.97 kg
20250028 28 30 mm 474.2 mm 453.69 mm 97.27 kg
20250030 30 40 mm 506.5 mm 486 mm 112.7 kg
20250035 35 40 mm 589.5 mm 566.72 mm 156.19 kg
20250038 38 40 mm 635.5 mm 615.14 mm 185.67 kg
20250040 40 40 mm 670.3 mm 647.49 mm 206.73 kg
20250045 45 40 mm 751 mm 728.26 mm 265.32 kg
20250050 50 40 mm 831.8 mm 809.04 mm 328.95 kg
20250057 57 40 mm 945 mm 922.17 mm 431.27 kg
20250060 60 40 mm 993.4 mm 970.63 mm 474.0 kg
20250076 76 40 mm 1252 mm 1229.28 mm 757.78 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
32B-2
Pitch
50.8 mm
