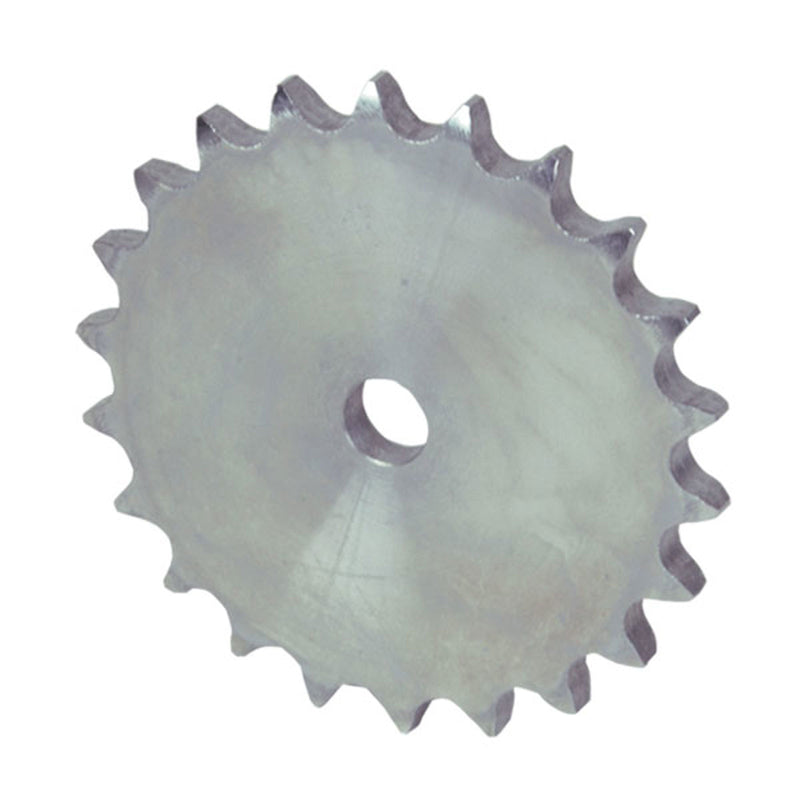

Chiaravalli Platewheel 32B-1 Simplex (2” × 1” 1/4) — product photo
Chiaravalli

Platewheel 32B-1 Simplex (2” × 1” 1/4)

Simplex platewheel for 32B-1 (2” × 1” 1/4) roller chain.

  • Chain inner width: 30.99 mm
  • Chain roller Ø: 29.21 mm
  • Tooth radius r3: 51 mm
  • Radius width C: 5 mm
  • Plate tooth width B1: 29.4 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20150008 8 25 mm 153.2 mm 132.69 mm 2.27 kg
20150009 9 25 mm 169 mm 148.54 mm 2.99 kg
20150010 10 25 mm 185 mm 164.44 mm 3.81 kg
20150011 11 30 mm 200.8 mm 180.34 mm 4.67 kg
20150012 12 30 mm 216.8 mm 196.29 mm 5.67 kg
20150013 13 30 mm 232.8 mm 212.29 mm 6.77 kg
20150014 14 30 mm 248.8 mm 228.29 mm 7.97 kg
20150015 15 30 mm 264.8 mm 244.3 mm 9.26 kg
20150016 16 30 mm 280.9 mm 260.4 mm 10.64 kg
20150017 17 30 mm 296.9 mm 276.4 mm 12.12 kg
20150018 18 30 mm 313 mm 292.55 mm 13.69 kg
20150019 19 30 mm 329.1 mm 308.66 mm 15.36 kg
20150020 20 30 mm 345.2 mm 324.71 mm 16.99 kg
20150021 21 30 mm 361.3 mm 340.82 mm 18.85 kg
20150022 22 30 mm 377.5 mm 356.98 mm 20.8 kg
20150023 23 30 mm 393.6 mm 373.08 mm 22.85 kg
20150024 24 30 mm 409.7 mm 389.18 mm 24.99 kg
20150025 25 30 mm 425.8 mm 405.33 mm 27.23 kg
20150026 26 30 mm 441.9 mm 421.44 mm 29.56 kg
20150028 28 30 mm 474.2 mm 453.69 mm 34.51 kg
20150030 30 30 mm 506.5 mm 486 mm 39.84 kg
20150032 32 30 mm 538.8 mm 518.28 mm 45.54 kg
20150035 35 30 mm 589.5 mm 566.72 mm 54.81 kg
20150038 38 30 mm 635.5 mm 615.14 mm 64.93 kg
20150040 40 40 mm 670.3 mm 647.49 mm 72.16 kg
20150045 45 40 mm 751 mm 728.26 mm 91.87 kg
20150050 50 40 mm 831.8 mm 809.04 mm 113.96 kg
20150057 57 40 mm 945 mm 922.17 mm 148.86 kg
20150060 60 40 mm 993.4 mm 970.63 mm 165.24 kg
20150076 76 40 mm 1252 mm 1229.28 mm 267.0 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
32B-1
Pitch
50.8 mm
