Chiaravalli

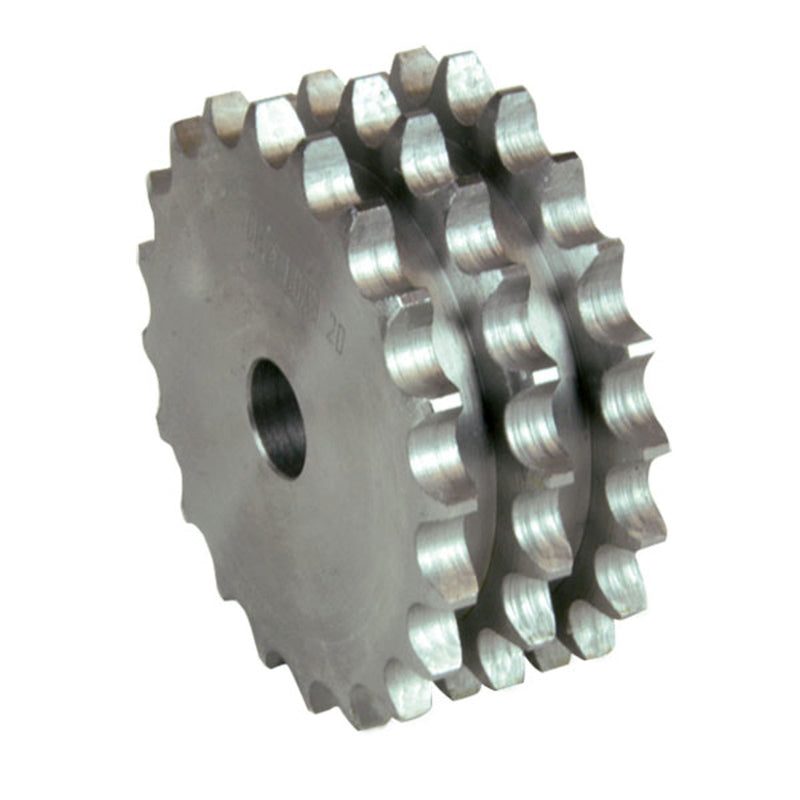

Platewheel 32B-3 Triplex (2” × 1” 1/4)

Name: Chiaravalli Platewheel 32B-3 Triplex (2” × 1” 1/4)
Brand: Chiaravalli

Triplex platewheel for 32B-3 (2” × 1” 1/4) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`20350008`	`8`	`25` mm	`153.2` mm	`132.69` mm	`8.83` kg
`20350009`	`9`	`25` mm	`169` mm	`148.54` mm	`11.99` kg
`20350010`	`10`	`25` mm	`185` mm	`164.44` mm	`15.63` kg
`20350011`	`11`	`30` mm	`200.8` mm	`180.34` mm	`19.2` kg
`20350012`	`12`	`30` mm	`216.8` mm	`196.29` mm	`23.78` kg
`20350013`	`13`	`30` mm	`232.8` mm	`212.29` mm	`28.83` kg
`20350014`	`14`	`30` mm	`248.8` mm	`228.29` mm	`34.35` kg
`20350015`	`15`	`30` mm	`264.8` mm	`244.3` mm	`40.34` kg
`20350016`	`16`	`30` mm	`280.9` mm	`260.4` mm	`46.47` kg
`20350017`	`17`	`30` mm	`296.9` mm	`276.4` mm	`53.4` kg
`20350018`	`18`	`30` mm	`313` mm	`292.55` mm	`60.8` kg
`20350019`	`19`	`30` mm	`329.1` mm	`308.66` mm	`68.68` kg
`20350020`	`20`	`30` mm	`345.2` mm	`324.71` mm	`77.02` kg
`20350021`	`21`	`40` mm	`361.3` mm	`340.82` mm	`85.84` kg
`20350023`	`23`	`40` mm	`393.6` mm	`373.08` mm	`104.88` kg
`20350025`	`25`	`40` mm	`425.8` mm	`405.33` mm	`125.81` kg
`20350030`	`30`	`40` mm	`506.5` mm	`486` mm	`186.37` kg
`20350035`	`35`	`40` mm	`589.5` mm	`566.72` mm	`258.69` kg
`20350038`	`38`	`40` mm	`635.5` mm	`615.14` mm	`307.73` kg
`20350045`	`45`	`40` mm	`751` mm	`728.26` mm	`438.64` kg
`20350050`	`50`	`40` mm	`831.8` mm	`809.04` mm	`549.27` kg
`20350057`	`57`	`40` mm	`945` mm	`922.17` mm	`716.72` kg
`20350060`	`60`	`40` mm	`993.4` mm	`970.63` mm	`1006.0` kg
`20350076`	`76`	`40` mm	`1252` mm	`1229.28` mm	`1295.64` kg
