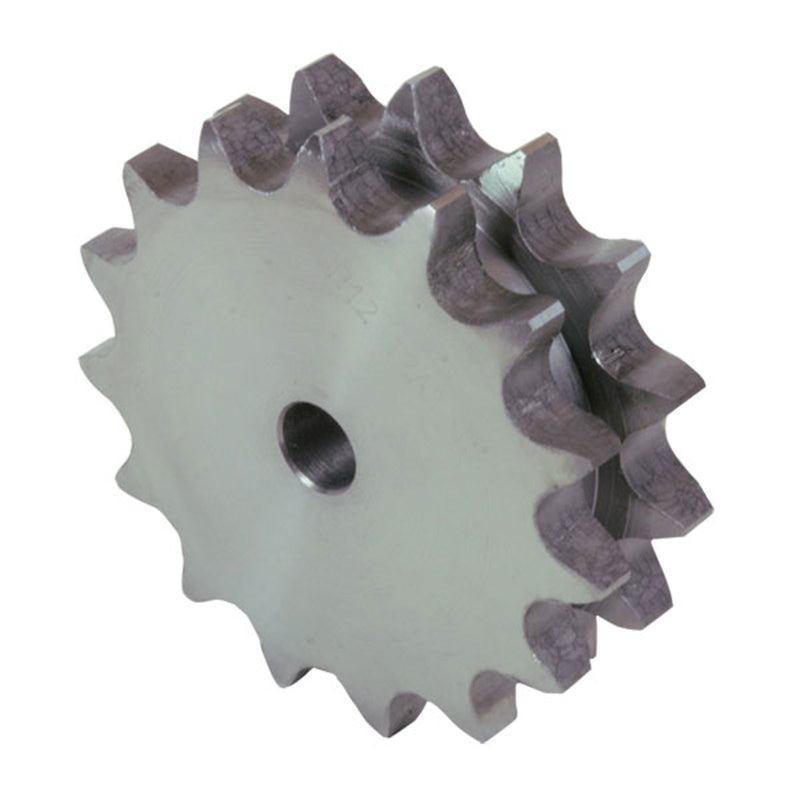

Chiaravalli Platewheel 12B-2 Duplex (3/4” × 7/16”) — product photo
Chiaravalli

Platewheel 12B-2 Duplex (3/4” × 7/16”)

Duplex platewheel for 12B-2 (3/4” × 7/16”) roller chain.

  • Chain inner width: 11.68 mm
  • Chain roller Ø: 12.07 mm
  • Tooth radius r3: 19 mm
  • Radius width C: 2 mm
  • Plate tooth width b1: 10.8 mm
  • Plate tooth width B2: 30.3 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20219008 8 12 mm 57.31 mm 49.78 mm 0.26 kg
20219009 9 12 mm 62.23 mm 55.7 mm 0.36 kg
20219010 10 12 mm 69.18 mm 61.65 mm 0.46 kg
20219011 11 16 mm 75.15 mm 67.62 mm 0.59 kg
20219012 12 16 mm 81.13 mm 73.6 mm 0.72 kg
20219013 13 16 mm 87.13 mm 79.6 mm 0.88 kg
20219014 14 16 mm 93.14 mm 85.61 mm 1.02 kg
20219015 15 16 mm 99.16 mm 91.63 mm 1.2 kg
20219016 16 20 mm 105.18 mm 97.65 mm 1.39 kg
20219017 17 20 mm 111.2 mm 103.67 mm 1.6 kg
20219018 18 20 mm 117.23 mm 109.7 mm 1.81 kg
20219019 19 20 mm 123.27 mm 115.74 mm 2.05 kg
20219020 20 20 mm 129.31 mm 121.78 mm 2.3 kg
20219021 21 20 mm 135.35 mm 127.82 mm 2.53 kg
20219022 22 20 mm 141.39 mm 133.86 mm 2.8 kg
20219023 23 20 mm 147.43 mm 139.9 mm 3.09 kg
20219024 24 20 mm 153.48 mm 145.95 mm 3.39 kg
20219025 25 20 mm 159.52 mm 151.99 mm 3.7 kg
20219026 26 20 mm 165.57 mm 158.04 mm 4.03 kg
20219027 27 20 mm 171.62 mm 164.09 mm 4.38 kg
20219028 28 20 mm 177.76 mm 170.14 mm 4.73 kg
20219029 29 20 mm 183.72 mm 176.19 mm 5.1 kg
20219030 30 20 mm 189.78 mm 182.25 mm 5.49 kg
20219031 31 20 mm 195.83 mm 188.3 mm 5.88 kg
20219032 32 20 mm 201.88 mm 194.35 mm 6.3 kg
20219033 33 20 mm 207.94 mm 200.41 mm 6.72 kg
20219034 34 20 mm 213.99 mm 206.46 mm 7.16 kg
20219035 35 20 mm 220.05 mm 212.52 mm 7.61 kg
20219036 36 25 mm 226.1 mm 218.57 mm 7.99 kg
20219037 37 25 mm 232.16 mm 224.63 mm 8.47 kg
20219038 38 25 mm 238.22 mm 230.69 mm 8.96 kg
20219039 39 25 mm 244.27 mm 236.74 mm 9.5 kg
20219040 40 25 mm 250.33 mm 242.8 mm 9.99 kg
20219041 41 25 mm 256.39 mm 248.86 mm 10.51 kg
20219042 42 25 mm 262.45 mm 254.92 mm 11.07 kg
20219043 43 25 mm 268.51 mm 260.98 mm 11.63 kg
20219044 44 25 mm 274.56 mm 267.03 mm 12.21 kg
20219045 45 25 mm 280.62 mm 273.09 mm 12.8 kg
20219046 46 25 mm 286.68 mm 279.15 mm 13.4 kg
20219047 47 25 mm 292.74 mm 285.21 mm 14.02 kg
20219048 48 25 mm 298.8 mm 291.27 mm 14.65 kg
20219049 49 25 mm 304.86 mm 297.33 mm 15.03 kg —
20219050 50 25 mm 310.92 mm 303.39 mm 15.95 kg
20219051 51 25 mm 316.98 mm 309.45 mm 16.49 kg
20219052 52 25 mm 323.04 mm 315.51 mm 17.31 kg
20219053 53 25 mm 329.1 mm 321.57 mm 17.96 kg
20219054 54 25 mm 335.16 mm 327.63 mm 18.73 kg
20219055 55 25 mm 341.22 mm 333.69 mm 19.45 kg
20219056 56 25 mm 347.28 mm 339.75 mm 20.2 kg
20219057 57 25 mm 353.34 mm 345.81 mm 20.95 kg
20219058 58 25 mm 359.4 mm 351.87 mm 21.72 kg
20219060 60 25 mm 371.52 mm 363.99 mm 23.0 kg
20219062 62 30 mm 383.65 mm 376.12 mm 26.62 kg
20219064 64 30 mm 395.77 mm 388.24 mm 27.48 kg
20219065 65 30 mm 401.83 mm 394.3 mm 29.0 kg
20219070 70 30 mm 432.14 mm 424.61 mm 32.01 kg
20219072 72 30 mm 444.26 mm 436.73 mm 33.92 kg
20219075 75 30 mm 462.45 mm 454.92 mm 36.88 kg
20219076 76 30 mm 468.51 mm 460.98 mm 37.9 kg
20219080 80 30 mm 492.76 mm 485.23 mm 42.1 kg
20219085 85 30 mm 523.07 mm 515.54 mm 47.66 kg
20219090 90 30 mm 553.38 mm 545.85 mm 53.36 kg
20219095 95 30 mm 583.7 mm 576.17 mm 59.8 kg
20219100 100 30 mm 614.01 mm 606.48 mm 66.39 kg
20219110 110 30 mm 674.64 mm 667.11 mm 81.0 kg
20219114 114 30 mm 698.89 mm 691.36 mm 86.68 kg
20219120 120 30 mm 735.27 mm 727.74 mm 97.0 kg
20219125 125 30 mm 765.59 mm 758.06 mm 104.5 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
12B-2
Pitch
19.05 mm
