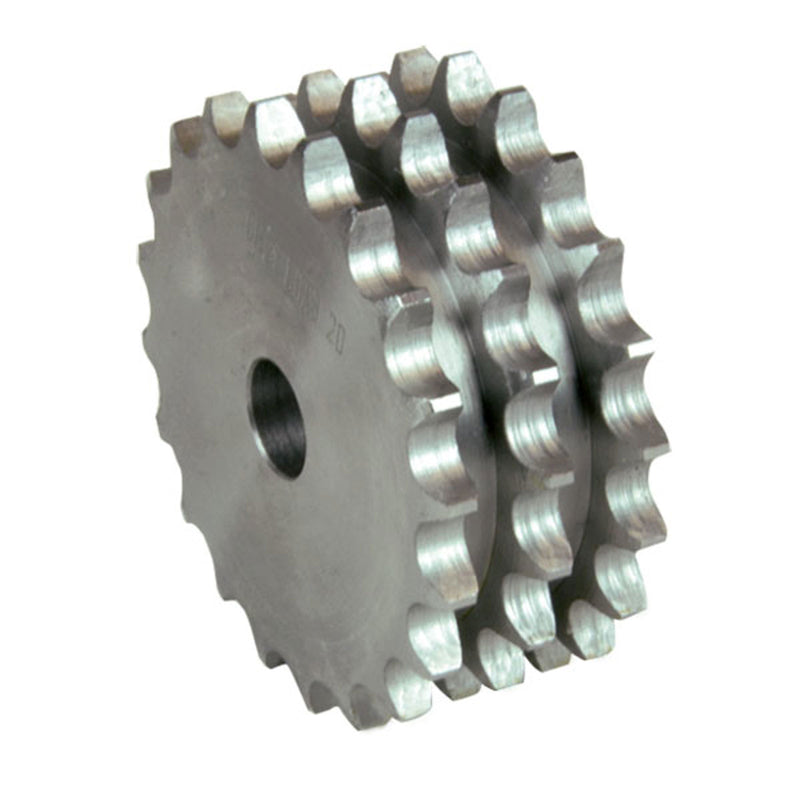

Chiaravalli Platewheel 12B-3 Triplex (3/4” × 7/16”) — product photo
Chiaravalli

Platewheel 12B-3 Triplex (3/4” × 7/16”)

Triplex platewheel for 12B-3 (3/4” × 7/16”) roller chain.

  • Chain inner width: 11.68 mm
  • Chain roller Ø: 12.07 mm
  • Tooth radius r3: 19 mm
  • Radius width C: 2 mm
  • Plate tooth width b1: 10.8 mm
  • Plate tooth width B3: 49.8 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20319008 8 16 mm 57.31 mm 49.78 mm 0.31 kg
20319009 9 16 mm 63.23 mm 55.7 mm 0.57 kg
20319010 10 16 mm 69.18 mm 61.65 mm 0.74 kg
20319011 11 20 mm 75.15 mm 67.62 mm 0.91 kg
20319012 12 20 mm 81.13 mm 73.6 mm 1.13 kg
20319013 13 20 mm 87.13 mm 79.6 mm 1.38 kg
20319014 14 20 mm 93.14 mm 85.61 mm 1.64 kg
20319015 15 20 mm 99.16 mm 91.63 mm 1.93 kg
20319016 16 20 mm 105.18 mm 97.65 mm 2.2 kg
20319017 17 20 mm 111.2 mm 103.67 mm 2.54 kg
20319018 18 20 mm 117.23 mm 109.7 mm 2.89 kg
20319019 19 20 mm 123.27 mm 115.74 mm 3.27 kg
20319020 20 20 mm 129.31 mm 121.78 mm 3.67 kg
20319021 21 20 mm 135.35 mm 127.82 mm 4.1 kg
20319022 22 20 mm 141.39 mm 133.86 mm 4.55 kg
20319023 23 20 mm 147.43 mm 139.9 mm 5.02 kg
20319024 24 20 mm 153.48 mm 145.95 mm 5.51 kg
20319025 25 20 mm 159.52 mm 151.99 mm 6.02 kg
20319026 26 20 mm 165.57 mm 158.04 mm 6.56 kg
20319027 27 20 mm 171.62 mm 164.09 mm 7.12 kg
20319028 28 20 mm 177.67 mm 170.14 mm 7.71 kg
20319029 29 20 mm 183.72 mm 176.19 mm 8.31 kg
20319030 30 20 mm 189.78 mm 182.25 mm 8.97 kg
20319031 31 25 mm 195.83 mm 188.3 mm 9.52 kg
20319032 32 25 mm 201.88 mm 194.35 mm 10.19 kg
20319033 33 25 mm 207.94 mm 200.41 mm 10.89 kg
20319034 34 25 mm 213.99 mm 206.46 mm 11.61 kg
20319035 35 25 mm 220.05 mm 212.52 mm 12.35 kg
20319036 36 25 mm 226.1 mm 218.57 mm 13.11 kg
20319037 37 25 mm 232.16 mm 224.63 mm 13.9 kg
20319038 38 25 mm 238.22 mm 230.69 mm 14.7 kg
20319039 39 25 mm 244.27 mm 236.74 mm 17.54 kg
20319040 40 25 mm 250.33 mm 242.8 mm 16.4 kg
20319042 42 25 mm 262.45 mm 254.92 mm 18.17 kg
20319043 43 25 mm 268.51 mm 260.98 mm 19.09 kg
20319044 44 25 mm 274.56 mm 267.03 mm 20.03 kg
20319045 45 25 mm 280.62 mm 273.09 mm 21.0 kg
20319047 47 25 mm 294.74 mm 285.21 mm 23.0 kg
20319048 48 25 mm 298.8 mm 291.27 mm 24.04 kg
20319050 50 25 mm 310.92 mm 303.39 mm 26.17 kg
20319052 52 25 mm 323.04 mm 315.51 mm 28.4 kg
20319054 54 25 mm 335.16 mm 327.63 mm 30.72 kg
20319055 55 25 mm 341.22 mm 333.69 mm 31.91 kg
20319057 57 30 mm 353.34 mm 345.81 mm 34.0 kg —
20319058 58 30 mm 359.4 mm 351.87 mm 34.28 kg
20319060 60 30 mm 371.52 mm 363.99 mm 38.0 kg —
20319065 65 30 mm 401.83 mm 394.3 mm 45.0 kg
20319070 70 30 mm 432.14 mm 424.61 mm 52.42 kg
20319072 72 30 mm 444.26 mm 436.73 mm 55.55 kg
20319076 76 30 mm 468.51 mm 460.98 mm 62.09 kg
20319080 80 30 mm 492.76 mm 485.23 mm 68.98 kg
20319085 85 30 mm 523.07 mm 515.54 mm 78.1 kg
20319090 90 30 mm 553.38 mm 545.85 mm 87.79 kg
20319095 95 30 mm 583.7 mm 576.17 mm 98.04 kg
20319100 100 30 mm 614.01 mm 606.48 mm 108.86 kg
20319110 110 30 mm 674.64 mm 667.11 mm 120.3 kg
20319114 114 30 mm 698.89 mm 691.36 mm 142.15 kg
20319120 120 30 mm 735.27 mm 727.74 mm 157.77 kg
20319125 125 30 mm 765.59 mm 758.06 mm 171.41 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
12B-3
Pitch
19.05 mm
