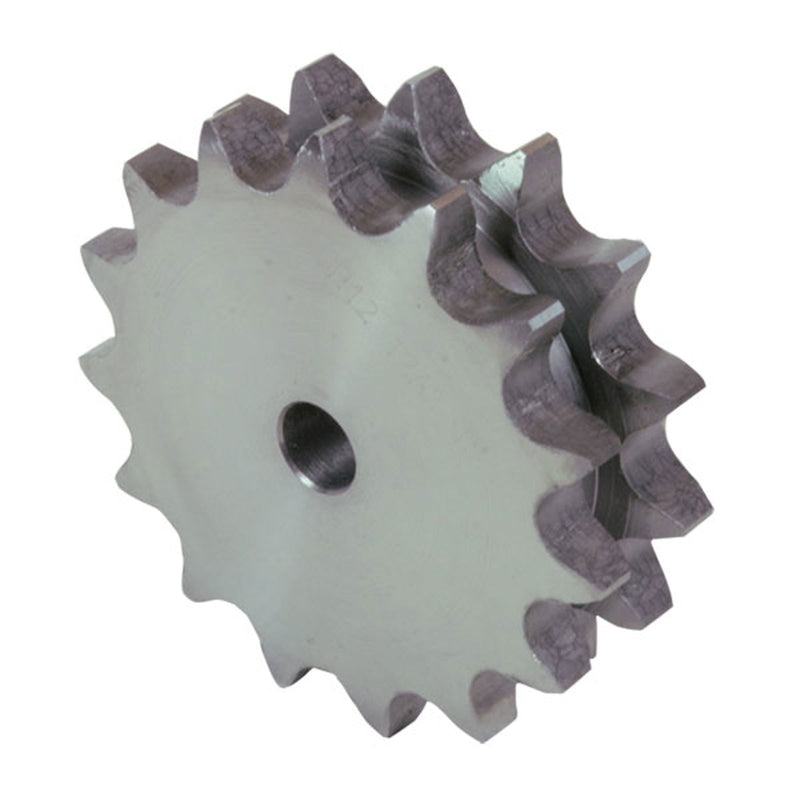

Platewheel 06B-2 Duplex (3/8” × 7/32”)

Duplex platewheel for 06B-2 (3/8” × 7/32”) roller chain.

  • Chain inner width: 5.72 mm
  • Chain roller Ø: 6.35 mm
  • Tooth radius r3: 10 mm
  • Radius width C: 1 mm
  • Plate tooth width b1: 5.2 mm
  • Plate tooth width B2: 15.4 mm
  • From Z 100 the width of the disk wheel increases to h = 7 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20209008 8 6 mm 28.54 mm 24.89 mm 0.03 kg
20209009 9 8 mm 31.5 mm 27.85 mm 0.04 kg
20209010 10 8 mm 34.47 mm 30.82 mm 0.05 kg
20209011 11 10 mm 37.46 mm 33.8 mm 0.06 kg
20209012 12 10 mm 40.45 mm 36.8 mm 0.08 kg
20209013 13 10 mm 43.45 mm 39.79 mm 0.1 kg
20209014 14 10 mm 46.45 mm 42.8 mm 0.12 kg
20209015 15 10 mm 49.46 mm 45.81 mm 0.14 kg
20209016 16 12 mm 52.47 mm 48.82 mm 0.16 kg
20209017 17 12 mm 55.49 mm 51.83 mm 0.19 kg —
20209018 18 12 mm 58.5 mm 54.85 mm 0.21 kg
20209019 19 12 mm 61.3 mm 57.87 mm 0.24 kg
20209020 20 12 mm 64.52 mm 60.89 mm 0.27 kg
20209021 21 12 mm 67.56 mm 63.91 mm 0.3 kg
20209022 22 12 mm 70.58 mm 66.93 mm 0.34 kg
20209023 23 12 mm 73.6 mm 69.95 mm 0.37 kg
20209024 24 12 mm 76.62 mm 72.97 mm 0.41 kg
20209025 25 12 mm 79.65 mm 76.02 mm 0.45 kg
20209026 26 12 mm 82.67 mm 79.02 mm 0.48 kg
20209027 27 12 mm 85.7 mm 82.02 mm 0.53 kg
20209028 28 12 mm 88.72 mm 85.07 mm 0.57 kg
20209029 29 12 mm 91.75 mm 88.09 mm 0.62 kg
20209030 30 12 mm 94.77 mm 91.12 mm 0.66 kg
20209031 31 14 mm 97.8 mm 94.15 mm 0.71 kg
20209032 32 14 mm 100.83 mm 97.17 mm 0.77 kg
20209033 33 14 mm 103.85 mm 100.2 mm 0.82 kg
20209034 34 14 mm 106.88 mm 103.23 mm 0.87 kg
20209035 35 14 mm 109.91 mm 106.26 mm 0.93 kg
20209036 36 14 mm 112.94 mm 109.2 mm 0.99 kg
20209037 37 14 mm 115.97 mm 112.32 mm 1.05 kg
20209038 38 14 mm 118.99 mm 115.35 mm 1.11 kg
20209039 39 14 mm 122.02 mm 118.37 mm 1.18 kg
20209040 40 14 mm 125.05 mm 121.4 mm 1.24 kg
20209041 41 16 mm 128.08 mm 124.43 mm 1.3 kg
20209042 42 16 mm 131.11 mm 127.46 mm 1.36 kg
20209043 43 16 mm 134.14 mm 130.49 mm 1.44 kg
20209044 44 16 mm 137.17 mm 133.52 mm 1.51 kg
20209045 45 16 mm 140.2 mm 136.55 mm 1.58 kg
20209046 46 16 mm 143.23 mm 139.58 mm 1.66 kg
20209047 47 16 mm 146.26 mm 142.61 mm 1.75 kg
20209048 48 16 mm 149.29 mm 145.64 mm 1.82 kg
20209049 49 16 mm 152.32 mm 148.66 mm 1.9 kg
20209050 50 16 mm 155.34 mm 151.69 mm 1.98 kg
20209051 51 16 mm 158.37 mm 154.72 mm 2.06 kg
20209052 52 16 mm 161.4 mm 157.75 mm 2.15 kg
20209053 53 16 mm 164.43 mm 160.78 mm 2.22 kg
20209054 54 16 mm 167.47 mm 163.82 mm 2.33 kg
20209055 55 16 mm 170.5 mm 166.85 mm 2.42 kg
20209056 56 16 mm 173.53 mm 169.88 mm 2.51 kg
20209057 57 16 mm 176.56 mm 172.91 mm 2.61 kg
20209058 58 16 mm 179.59 mm 175.93 mm 2.71 kg
20209060 60 16 mm 185.65 mm 181.99 mm 2.91 kg
20209062 62 20 mm 191.71 mm 188.06 mm 3.09 kg
20209064 64 20 mm 197.77 mm 194.12 mm 3.3 kg
20209065 65 20 mm 200.6 mm 197.15 mm 3.41 kg
20209068 68 20 mm 209.89 mm 206.24 mm 3.75 kg
20209070 70 20 mm 215.95 mm 212.3 mm 3.99 kg
20209072 72 20 mm 222.02 mm 218.37 mm 4.23 kg
20209075 75 20 mm 231.11 mm 227.46 mm 4.6 kg
20209076 76 20 mm 234.14 mm 230.49 mm 4.73 kg
20209078 78 20 mm 241 mm 236.55 mm 4.99 kg
20209080 80 20 mm 246.26 mm 242.61 mm 5.26 kg
20209085 85 20 mm 261.42 mm 257.77 mm 5.96 kg
20209090 90 20 mm 276.58 mm 272.93 mm 6.7 kg
20209095 95 20 mm 291.73 mm 288.08 mm 7.5 kg
20209100 100 20 mm 306.89 mm 303.25 mm 8.34 kg
20209110 110 20 mm 337.2 mm 333.55 mm 10.1 kg
20209114 114 20 mm 349.33 mm 345.68 mm 10.9 kg
20209120 120 20 mm 367.52 mm 363.86 mm 12.11 kg
20209125 125 20 mm 382.68 mm 379.02 mm 13.16 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
06B-2
Pitch
9.525 mm

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.

Contact Us
