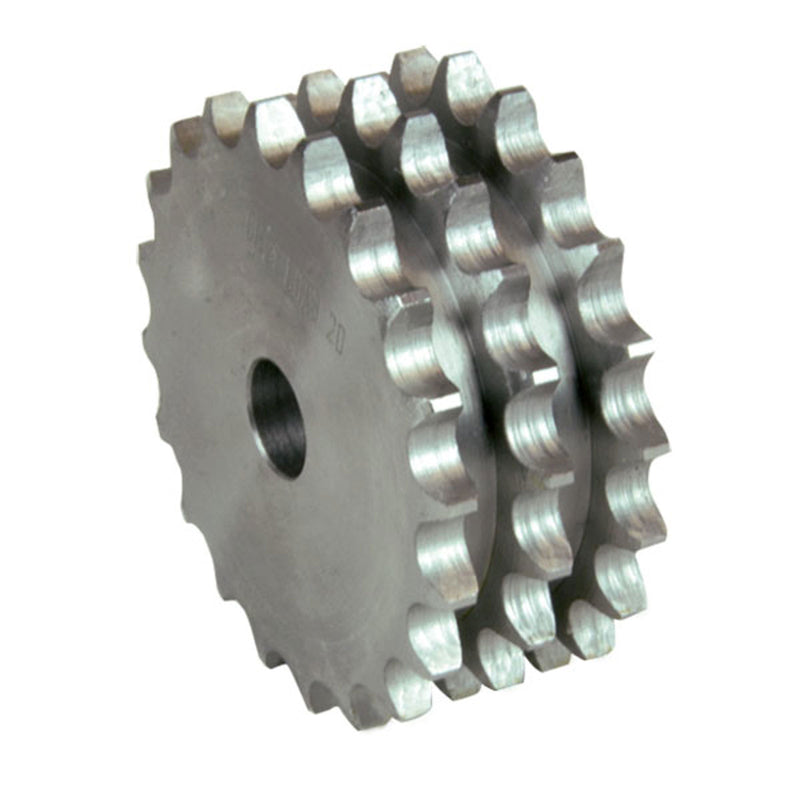

Platewheel 06B-3 Triplex (3/8” × 7/32”)

Triplex platewheel for 06B-3 (3/8” × 7/32”) roller chain.

  • Chain inner width: 5.72 mm
  • Chain roller Ø: 6.35 mm
  • Tooth radius r3: 10 mm
  • Radius width C: 1 mm
  • Plate tooth width b1: 5.2 mm
  • Plate tooth width B3: 25.6 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20309008 8 6 mm 28.54 mm 24.89 mm 0.04 kg
20309009 9 8 mm 31.5 mm 27.85 mm 0.06 kg
20309010 10 10 mm 34.47 mm 30.82 mm 0.07 kg
20309011 11 10 mm 37.46 mm 33.8 mm 0.09 kg
20309012 12 10 mm 40.45 mm 36.8 mm 0.122 kg
20309013 13 10 mm 43.45 mm 39.79 mm 0.15 kg
20309014 14 12 mm 46.45 mm 42.8 mm 0.186 kg
20309015 15 12 mm 49.46 mm 45.81 mm 0.26 kg
20309016 16 12 mm 52.47 mm 48.82 mm 0.26 kg
20309017 17 12 mm 55.49 mm 51.83 mm 0.34 kg
20309018 18 12 mm 58.5 mm 54.85 mm 0.345 kg
20309019 19 12 mm 61.52 mm 57.87 mm 0.396 kg
20309020 20 12 mm 64.54 mm 60.89 mm 0.445 kg
20309021 21 14 mm 67.56 mm 63.91 mm 0.48 kg
20309022 22 14 mm 70.58 mm 66.93 mm 0.54 kg
20309023 23 14 mm 73.6 mm 69.95 mm 0.6 kg
20309024 24 14 mm 76.62 mm 72.97 mm 0.66 kg
20309025 25 14 mm 79.65 mm 76.02 mm 0.73 kg
20309026 26 14 mm 82.67 mm 79.02 mm 0.795 kg
20309027 27 14 mm 85.7 mm 82.02 mm 0.865 kg
20309028 28 14 mm 88.72 mm 85.07 mm 0.94 kg
20309029 29 14 mm 91.75 mm 88.09 mm 1.01 kg
20309030 30 14 mm 94.77 mm 91.12 mm 1.09 kg
20309031 31 16 mm 97.8 mm 94.15 mm 1.18 kg
20309032 32 16 mm 100.83 mm 97.17 mm 1.26 kg
20309033 33 16 mm 103.85 mm 100.2 mm 1.35 kg
20309034 34 16 mm 106.88 mm 103.23 mm 1.44 kg
20309035 35 16 mm 109.91 mm 106.26 mm 1.54 kg
20309036 36 16 mm 112.94 mm 109.2 mm 1.62 kg
20309038 38 16 mm 118.99 mm 115.35 mm 1.8 kg
20309040 40 16 mm 125.05 mm 121.4 mm 2.03 kg
20309041 41 20 mm 128.08 mm 124.43 mm 2.15 kg
20309042 42 16 mm 131.11 mm 127.46 mm 2.26 kg
20309043 43 16 mm 134.14 mm 130.49 mm 2.38 kg
20309044 44 16 mm 137.17 mm 133.52 mm 2.5 kg
20309045 45 16 mm 140.2 mm 136.55 mm 2.46 kg
20309046 46 16 mm 143.23 mm 139.58 mm 2.75 kg
20309047 47 16 mm 146.26 mm 142.61 mm 2.88 kg
20309048 48 16 mm 149.29 mm 145.64 mm 3.01 kg
20309050 50 16 mm 155.34 mm 151.69 mm 3.3 kg
20309051 51 20 mm 158.37 mm 154.72 mm 3.43 kg
20309052 52 20 mm 161.4 mm 157.75 mm 3.57 kg
20309056 56 20 mm 173.53 mm 169.88 mm 4.14 kg
20309057 57 20 mm 176.56 mm 172.91 mm 4.3 kg
20309058 58 20 mm 179.59 mm 175.93 mm 4.46 kg
20309060 60 20 mm 185.65 mm 181.99 mm 4.8 kg
20309064 64 20 mm 197.77 mm 194.12 mm 5.5 kg
20309065 65 20 mm 200.6 mm 197.15 mm 5.67 kg
20309066 66 25 mm 203.83 mm 200.18 mm 5.66 kg
20309070 70 25 mm 215.95 mm 212.3 mm 6.63 kg
20309072 72 25 mm 222.02 mm 218.37 mm 7.03 kg
20309076 76 25 mm 234.49 mm 230.49 mm 7.87 kg
20309080 80 25 mm 246.26 mm 242.61 mm 8.76 kg
20309085 85 25 mm 261.42 mm 257.77 mm 9.93 kg
20309090 90 25 mm 276.58 mm 272.93 mm 11.17 kg
20309095 95 25 mm 291.73 mm 288.08 mm 12.49 kg
20309100 100 25 mm 306.89 mm 303.25 mm 13.89 kg
20309110 110 25 mm 337.2 mm 333.55 mm 16.89 kg
20309114 114 25 mm 349.33 mm 345.68 mm 18.17 kg
20309120 120 25 mm 367.52 mm 363.86 mm 20.18 kg
20309125 125 25 mm 382.68 mm 379.02 mm 21.94 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
06B-3
Pitch
9.525 mm
