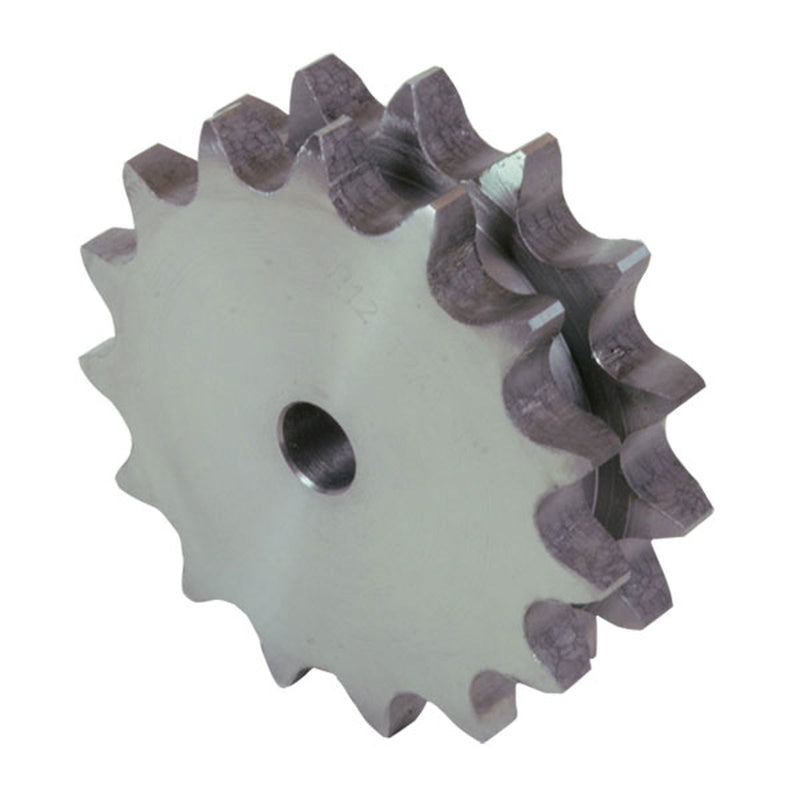

Chiaravalli Platewheel 10B-2 Duplex (5/8” × 3/8”) — product photo
Chiaravalli

Platewheel 10B-2 Duplex (5/8” × 3/8”)

Duplex platewheel for 10B-2 (5/8” × 3/8”) roller chain.

  • Chain inner width: 9.65 mm
  • Chain roller Ø: 10.16 mm
  • Tooth radius r3: 16 mm
  • Radius width C: 1.6 mm
  • Plate tooth width b1: 9 mm
  • Plate tooth width B2: 25.5 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20215008 8 12 mm 48.32 mm 41.48 mm 0.15 kg
20215009 9 12 mm 53.26 mm 46.42 mm 0.21 kg
20215010 10 12 mm 58.21 mm 51.37 mm 0.27 kg
20215011 11 14 mm 63.19 mm 56.34 mm 0.34 kg
20215012 12 14 mm 68.18 mm 61.34 mm 0.42 kg
20215013 13 14 mm 73.17 mm 66.32 mm 0.51 kg
20215014 14 14 mm 78.18 mm 71.34 mm 0.6 kg
20215015 15 14 mm 83.19 mm 76.36 mm 0.7 kg
20215016 16 16 mm 88.21 mm 81.37 mm 0.82 kg
20215017 17 16 mm 93.23 mm 86.38 mm 0.94 kg
20215018 18 16 mm 98.26 mm 91.42 mm 1.06 kg
20215019 19 16 mm 103.29 mm 96.45 mm 1.2 kg
20215020 20 16 mm 108.32 mm 101.49 mm 1.34 kg
20215021 21 16 mm 113.35 mm 106.52 mm 1.48 kg
20215022 22 16 mm 118.39 mm 111.55 mm 1.64 kg
20215023 23 16 mm 123.43 mm 116.58 mm 1.8 kg
20215024 24 16 mm 128.46 mm 121.62 mm 1.98 kg
20215025 25 16 mm 133.5 mm 126.66 mm 2.17 kg
20215026 26 16 mm 138.54 mm 131.7 mm 2.33 kg
20215027 27 16 mm 143.58 mm 136.75 mm 2.53 kg
20215028 28 16 mm 148.63 mm 141.78 mm 2.74 kg
20215029 29 16 mm 153.67 mm 146.83 mm 2.96 kg
20215030 30 16 mm 158.71 mm 151.87 mm 3.18 kg
20215031 31 20 mm 163.76 mm 156.92 mm 3.41 kg
20215032 32 20 mm 168.8 mm 161.95 mm 3.66 kg
20215033 33 20 mm 174.85 mm 167 mm 3.9 kg
20215034 34 20 mm 179.89 mm 172.05 mm 4.16 kg
20215035 35 20 mm 183.94 mm 177.1 mm 4.42 kg
20215036 36 20 mm 188.99 mm 182.15 mm 4.7 kg
20215037 37 20 mm 194.03 mm 187.2 mm 4.98 kg
20215038 38 20 mm 199.08 mm 192.24 mm 5.26 kg
20215039 39 20 mm 204.13 mm 197.29 mm 5.56 kg
20215040 40 20 mm 209.17 mm 202.34 mm 5.87 kg
20215041 41 20 mm 214.22 mm 207.39 mm 5.1 kg
20215042 42 20 mm 219.27 mm 212.44 mm 6.46 kg
20215043 43 20 mm 224.32 mm 217.49 mm 6.8 kg
20215044 44 20 mm 229.37 mm 222.53 mm 7.13 kg
20215045 45 25 mm 234.42 mm 227.58 mm 7.47 kg
20215046 46 25 mm 239.47 mm 232.63 mm 7.83 kg
20215047 47 25 mm 244.52 mm 237.68 mm 8.19 kg
20215048 48 25 mm 249.57 mm 242.73 mm 8.55 kg
20215049 49 25 mm 254.62 mm 247.78 mm 8.94 kg
20215050 50 25 mm 259.66 mm 252.82 mm 9.32 kg
20215051 51 25 mm 264.71 mm 257.87 mm 9.85 kg
20215052 52 25 mm 269.76 mm 262.92 mm 10.11 kg
20215053 53 25 mm 274.81 mm 267.97 mm 10.52 kg
20215054 54 25 mm 279.87 mm 273.03 mm 10.94 kg
20215055 55 25 mm 284.92 mm 278.08 mm 11.36 kg
20215056 56 25 mm 289.97 mm 283.13 mm 11.8 kg
20215057 57 25 mm 295.02 mm 288.18 mm 12.24 kg
20215058 58 25 mm 300.07 mm 293.23 mm 12.68 kg
20215060 60 25 mm 310.17 mm 303.32 mm 13.61 kg
20215062 62 25 mm 320.27 mm 313.43 mm 14.56 kg —
20215065 65 25 mm 335.42 mm 328.58 mm 16.05 kg
20215070 70 25 mm 360.68 mm 353.84 mm 16.57 kg
20215072 72 25 mm 370.78 mm 363.95 mm 18.7 kg
20215075 75 25 mm 385.94 mm 379.09 mm 19.81 kg
20215076 76 25 mm 390.99 mm 384.16 mm 21.54 kg
20215078 78 25 mm 401.09 mm 394.25 mm 22.14 kg —
20215080 80 25 mm 411.2 mm 404.35 mm 21.6 kg —
20215085 85 30 mm 436.46 mm 429.62 mm 28.0 kg
20215090 90 30 mm 461.72 mm 454.88 mm 31.25 kg
20215095 95 30 mm 486.98 mm 480.14 mm 34.9 kg
20215100 100 30 mm 512.24 mm 505.39 mm 38.75 kg
20215110 110 30 mm 562.76 mm 555.92 mm 46.85 kg
20215114 114 30 mm 582.97 mm 576.13 mm 50.6 kg
20215120 120 30 mm 613.29 mm 606.45 mm 56.16 kg
20215125 125 30 mm 638.55 mm 631.51 mm 61.0 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
10B-2
Pitch
15.875 mm
