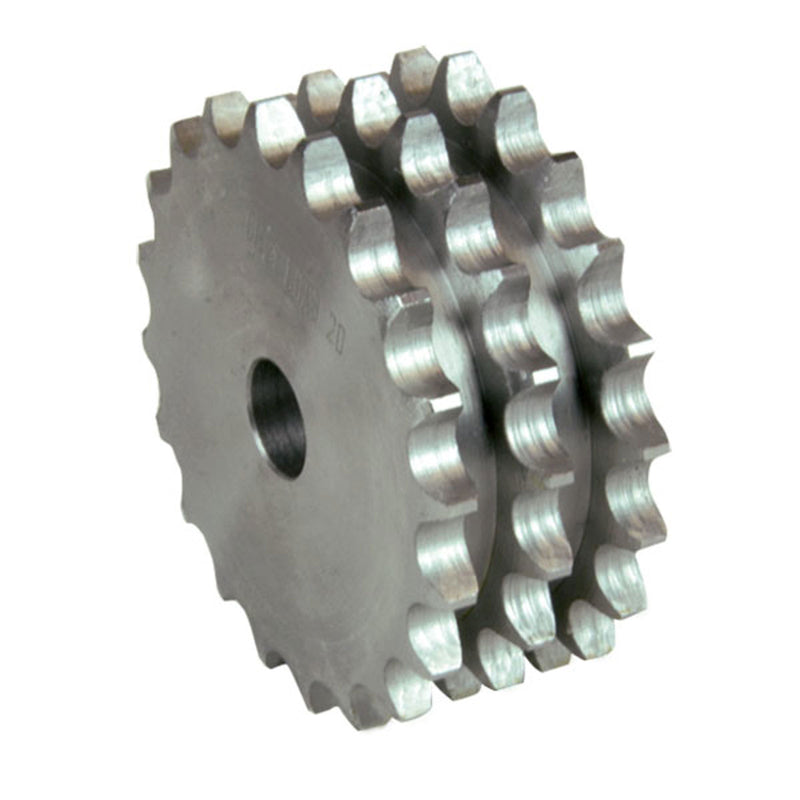

Chiaravalli Platewheel 10B-3 Triplex (5/8” × 3/8”) — product photo
Chiaravalli

Platewheel 10B-3 Triplex (5/8” × 3/8”)

Triplex platewheel for 10B-3 (5/8” × 3/8”) roller chain.

  • Chain inner width: 9.65 mm
  • Chain roller Ø: 10.16 mm
  • Tooth radius r3: 16 mm
  • Radius width C: 1.6 mm
  • Plate tooth width b1: 9 mm
  • Plate tooth width B3: 42.1 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
20315008 8 12 mm 48.32 mm 41.48 mm 0.23 kg
20315009 9 12 mm 53.26 mm 46.42 mm 0.32 kg
20315010 10 16 mm 58.21 mm 51.37 mm 0.44 kg
20315011 11 16 mm 63.19 mm 56.34 mm 0.55 kg
20315012 12 16 mm 68.18 mm 61.34 mm 0.67 kg
20315013 13 16 mm 73.17 mm 66.32 mm 0.81 kg
20315014 14 16 mm 78.18 mm 71.34 mm 0.97 kg
20315015 15 16 mm 83.19 mm 76.36 mm 1.14 kg
20315016 16 16 mm 88.21 mm 81.37 mm 1.29 kg
20315017 17 16 mm 93.23 mm 86.38 mm 1.49 kg
20315018 18 16 mm 98.26 mm 91.42 mm 1.7 kg
20315019 19 16 mm 103.29 mm 96.45 mm 1.92 kg
20315020 20 16 mm 108.32 mm 101.49 mm 2.15 kg
20315021 21 20 mm 113.35 mm 106.52 mm 2.4 kg
20315022 22 20 mm 118.89 mm 111.55 mm 2.66 kg
20315023 23 20 mm 123.43 mm 116.58 mm 2.94 kg
20315024 24 20 mm 128.46 mm 121.62 mm 3.23 kg
20315025 25 20 mm 133.5 mm 126.66 mm 3.53 kg
20315026 26 20 mm 138.54 mm 131.7 mm 3.81 kg
20315027 27 20 mm 143.58 mm 136.75 mm 4.13 kg
20315028 28 20 mm 148.63 mm 141.78 mm 4.47 kg
20315029 29 20 mm 153.67 mm 146.83 mm 4.83 kg
20315030 30 20 mm 158.71 mm 151.87 mm 5.2 kg
20315031 31 20 mm 163.76 mm 156.92 mm 5.42 kg
20315032 32 20 mm 168.8 mm 161.95 mm 5.97 kg
20315033 33 20 mm 174.85 mm 167 mm 6.38 kg
20315034 34 20 mm 179.89 mm 172.05 mm 6.8 kg
20315035 35 20 mm 183.94 mm 177.1 mm 7.23 kg
20315036 36 25 mm 188.99 mm 182.15 mm 7.62 kg
20315037 37 25 mm 194.03 mm 187.2 mm 8.08 kg
20315038 38 25 mm 199.08 mm 192.24 mm 8.55 kg
20315039 39 25 mm 204.13 mm 197.29 mm 9.04 kg
20315040 40 25 mm 209.17 mm 202.34 mm 9.54 kg
20315041 41 25 mm 214.22 mm 207.39 mm 10.05 kg
20315042 42 25 mm 219.27 mm 212.44 mm 10.58 kg
20315043 43 25 mm 224.32 mm 217.49 mm 10.98 kg
20315044 44 25 mm 229.37 mm 222.53 mm 11.67 kg
20315045 45 25 mm 234.42 mm 227.58 mm 12.24 kg
20315046 46 25 mm 239.47 mm 232.63 mm 12.82 kg
20315047 47 25 mm 244.52 mm 237.68 mm 13.1 kg
20315048 48 25 mm 249.57 mm 242.73 mm 14.01 kg
20315049 49 25 mm 254.62 mm 247.78 mm 14.86 kg
20315050 50 25 mm 259.66 mm 252.82 mm 15.26 kg
20315052 52 25 mm 269.76 mm 262.92 mm 16.57 kg
20315053 53 25 mm 274.81 mm 267.97 mm 17.2 kg
20315055 55 25 mm 284.92 mm 278.08 mm 18.62 kg
20315057 57 25 mm 295.02 mm 288.18 mm 20.06 kg
20315060 60 25 mm 310.17 mm 303.32 mm 22.31 kg
20315064 64 30 mm 330.37 mm 323.53 mm 25.43 kg
20315065 65 30 mm 335.42 mm 328.58 mm 26.26 kg
20315068 68 30 mm 350.58 mm 343.74 mm 28.59 kg
20315070 70 30 mm 360.68 mm 353.84 mm 30.61 kg
20315072 72 30 mm 370.78 mm 363.95 mm 30.54 kg
20315075 75 30 mm 385.94 mm 379.09 mm 30.35 kg
20315076 76 30 mm 390.99 mm 384.16 mm 36.27 kg
20315080 80 30 mm 411.2 mm 404.35 mm 40.3 kg
20315085 85 30 mm 436.46 mm 429.62 mm 45.6 kg
20315090 90 30 mm 461.72 mm 454.88 mm 51.32 kg
20315095 95 30 mm 486.98 mm 480.14 mm 57.32 kg —
20315100 100 30 mm 512.24 mm 505.39 mm 63.6 kg
20315110 110 30 mm 562.76 mm 555.92 mm 77.27 kg
20315114 114 30 mm 582.97 mm 576.13 mm 83.15 kg
20315125 125 30 mm 638.55 mm 631.51 mm 99.5 kg

Product Information

Material
FE / C45
Standard
DIN 8187 - ISO/R 606
Chain Type
10B-3
Pitch
15.875 mm
