Chiaravalli

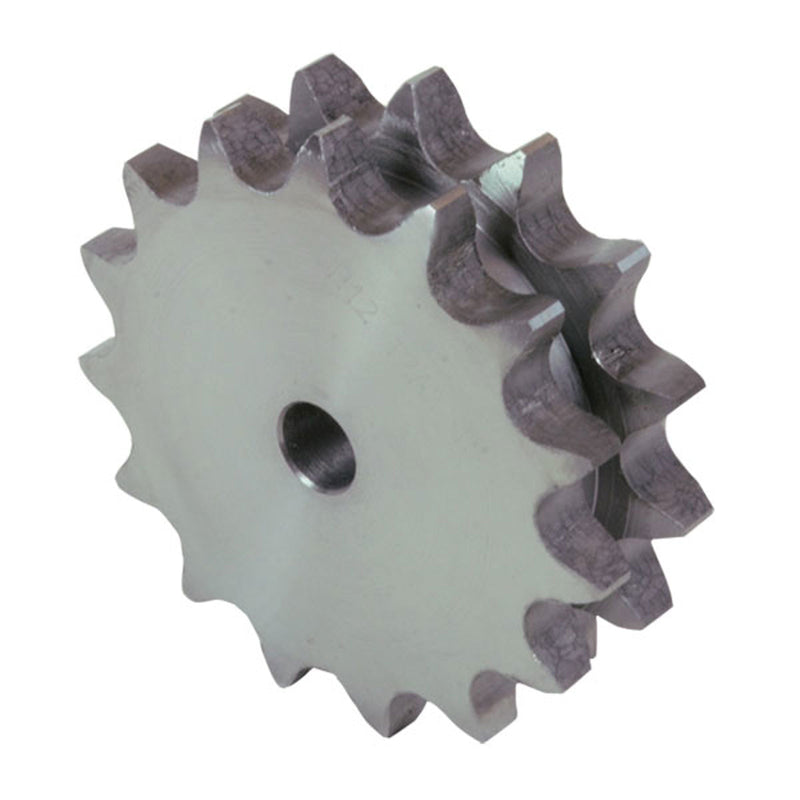

Platewheel ASA 100 Duplex

Duplex platewheel for ANSI 100-2 (ASA 100) roller chain.

  • Chain inner width: 19.05 mm
  • Chain roller Ø: 19.05 mm
  • Tooth radius r3: 33.5 mm
  • Radius width C: 4 mm
  • Plate tooth width b1: 17.7 mm
  • Plate tooth width B2: 53.5 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
21210024 24 25 mm 258.4 mm 243.23 mm 16.5 kg
21210025 25 25 mm 268.5 mm 253.33 mm 18.0 kg
21210030 30 25 mm 319.9 mm 303.75 mm 27.0 kg
21210038 38 30 mm 400.6 mm 384.49 mm 35.0 kg
21210042 42 30 mm 440.8 mm 424.88 mm 45.0 kg
21210045 45 30 mm 471.3 mm 455.17 mm 62.15 kg —
21210057 57 30 mm 592.5 mm 576.36 mm 102.0 kg

Product Information

Material
FE / C45
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 100-2
Pitch
31.75 mm
