Chiaravalli

Platewheel ASA 100 Simplex

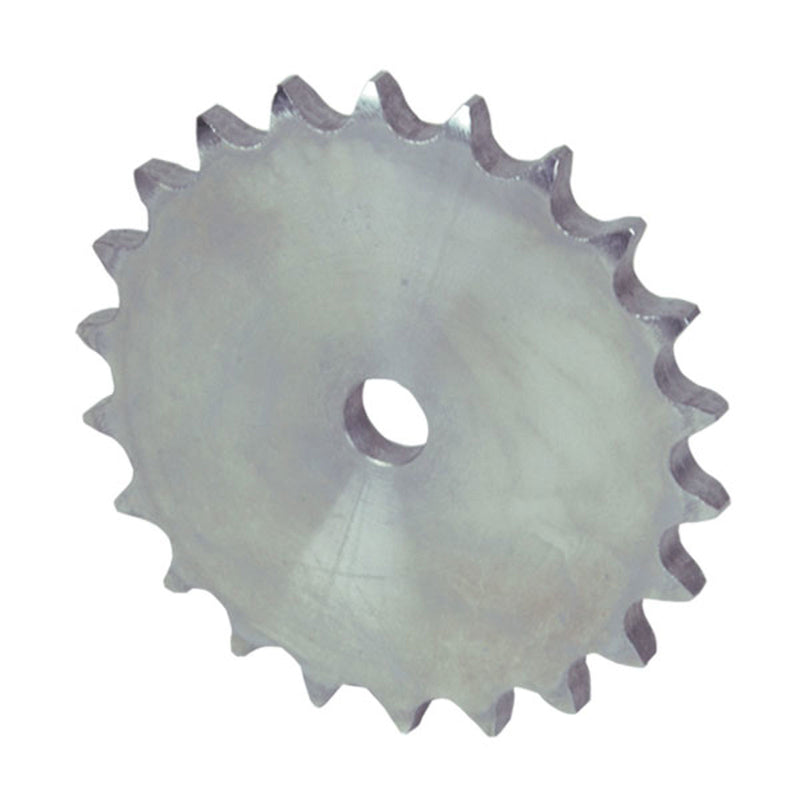

Name: Chiaravalli Platewheel ASA 100 Simplex
Brand: Chiaravalli

Simplex platewheel for ANSI 100-1 (ASA 100) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight	CAD
`21110010`	`10`	`16` mm	`117.9` mm	`102.74` mm	`1.29` kg	—
`21110012`	`12`	`20` mm	`137.8` mm	`122.68` mm	`2.0` kg
`21110015`	`15`	`20` mm	`167.9` mm	`152.72` mm	`2.3` kg	—
`21110020`	`20`	`25` mm	`218.1` mm	`202.95` mm	`4.5` kg
`21110022`	`22`	`25` mm	`238.3` mm	`223.11` mm	`4.76` kg
`21110024`	`24`	`25` mm	`258.4` mm	`243.23` mm	`5.61` kg
`21110025`	`25`	`25` mm	`268.5` mm	`253.33` mm	`6.05` kg
`21110028`	`28`	`25` mm	`299.7` mm	`283.56` mm	`7.0` kg
`21110030`	`30`	`25` mm	`319.9` mm	`303.75` mm	`9.45` kg
`21110032`	`32`	`25` mm	`340.1` mm	`323.91` mm	`10.25` kg
`21110035`	`35`	`25` mm	`370.4` mm	`354.2` mm	`16.0` kg
`21110038`	`38`	`25` mm	`400.6` mm	`384.49` mm	`18.0` kg
`21110045`	`45`	`30` mm	`471.3` mm	`455.17` mm	`21.45` kg
`21110057`	`57`	`30` mm	`592.5` mm	`576.36` mm	`25.0` kg
