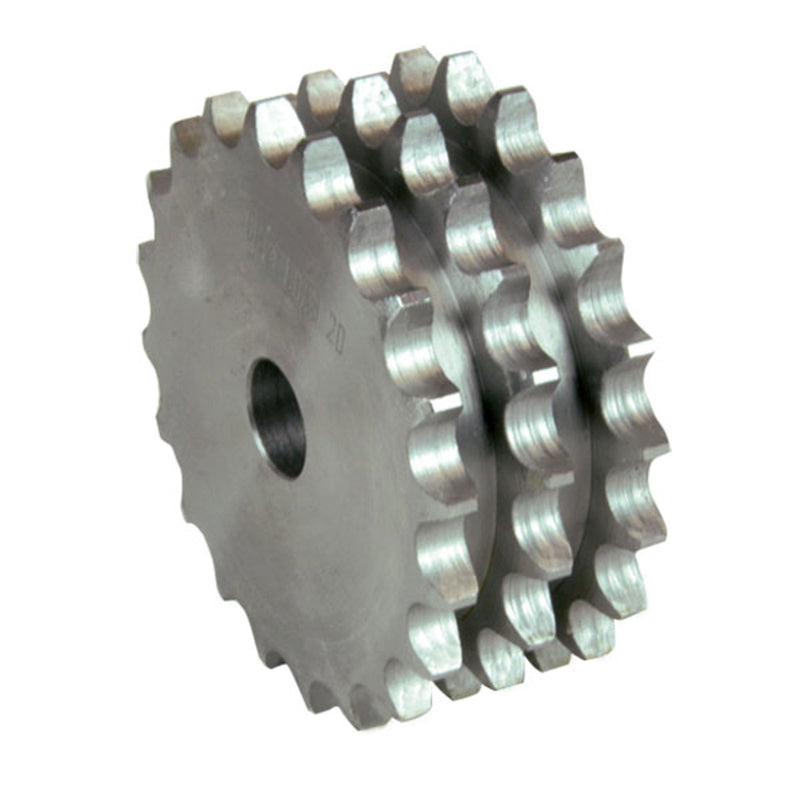

Chiaravalli Platewheel ASA 100 Triplex — product photo
Chiaravalli

Platewheel ASA 100 Triplex

Triplex platewheel for ANSI 100-3 (ASA 100) roller chain.

  • Chain inner width: 19.05 mm
  • Chain roller Ø: 19.05 mm
  • Tooth radius r3: 33.5 mm
  • Radius width C: 4 mm
  • Plate tooth width b1: 17.7 mm
  • Plate tooth width B3: 89.2 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
21310012 12 20 mm 137.8 mm 122.68 mm 5.65 kg
21310014 14 30 mm 157.8 mm 142.68 mm 8.0 kg
21310015 15 25 mm 167.9 mm 152.72 mm 9.61 kg
21310019 19 25 mm 208.1 mm 192.91 mm 16.08 kg
21310025 25 25 mm 268.5 mm 253.33 mm 20.0 kg
21310030 30 25 mm 319.9 mm 303.75 mm 43.96 kg
21310040 40 30 mm 420.8 mm 404.68 mm 65.0 kg

Product Information

Material
FE / C45
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 100-3
Pitch
31.75 mm
