Chiaravalli

Platewheel ASA 120 Duplex

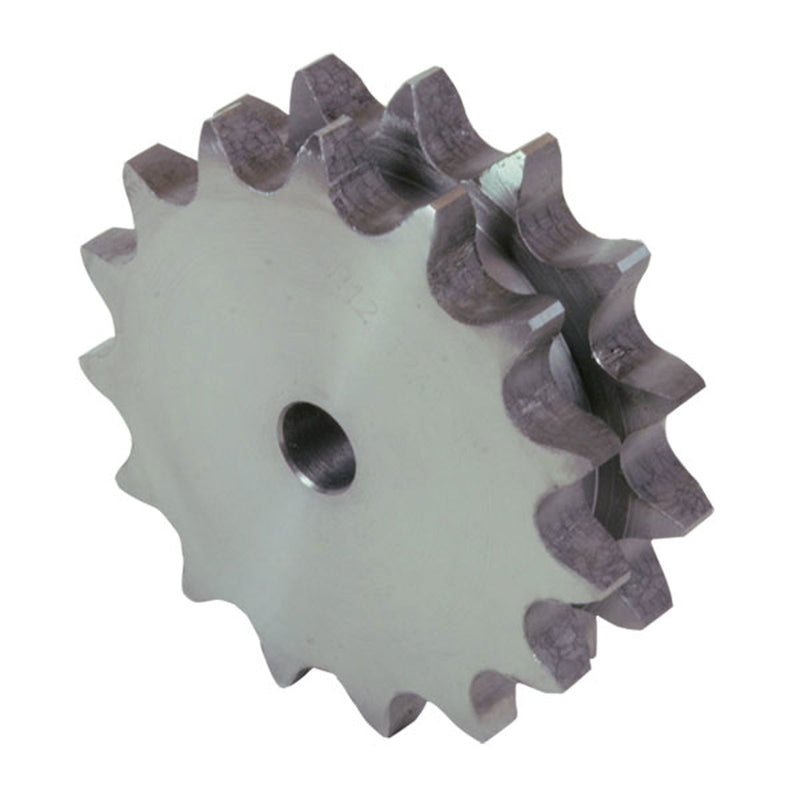

Name: Chiaravalli Platewheel ASA 120 Duplex
Brand: Chiaravalli

Duplex platewheel for ANSI 120-2 (ASA 120) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight	CAD
`21212010`	`10`	`25` mm	`142.77` mm	`123.29` mm	`6.0` kg
`21212014`	`14`	`25` mm	`190.7` mm	`171.22` mm	`8.0` kg
`21212017`	`17`	`25` mm	`226.83` mm	`207.35` mm	`14.37` kg
`21212018`	`18`	`25` mm	`238.89` mm	`219.41` mm	`16.3` kg
`21212020`	`20`	`25` mm	`263.03` mm	`243.55` mm	`20.0` kg
`21212021`	`21`	`25` mm	`270.6` mm	`255.65` mm	`23.75` kg	—
`21212023`	`23`	`25` mm	`294.8` mm	`279.8` mm	`29.03` kg
`21212024`	`24`	`25` mm	`306.8` mm	`291.88` mm	`32.9` kg	—
`21212025`	`25`	`25` mm	`323.47` mm	`303.99` mm	`33.5` kg
`21212030`	`30`	`30` mm	`383.97` mm	`364.49` mm	`49.1` kg
`21212038`	`38`	`30` mm	`480.85` mm	`461.37` mm	`81.45` kg
`21212045`	`45`	`40` mm	`565.67` mm	`546.19` mm	`115.0` kg
`21212057`	`57`	`40` mm	`711.1` mm	`691.62` mm	`188.9` kg
