Chiaravalli

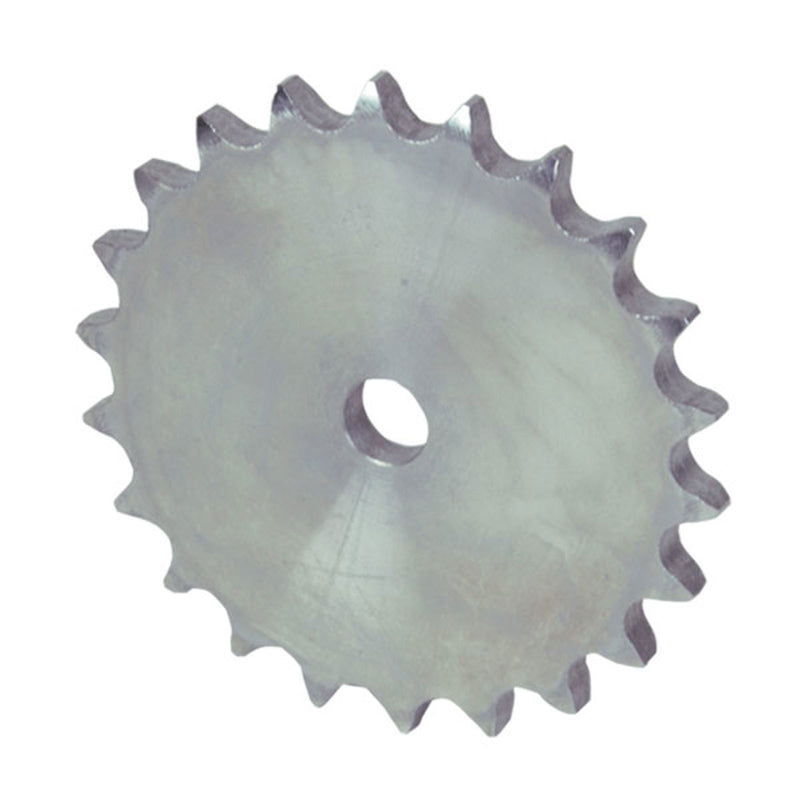

Platewheel ASA 120 Simplex

Name: Chiaravalli Platewheel ASA 120 Simplex
Brand: Chiaravalli

Simplex platewheel for ANSI 120-1 (ASA 120) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21112016`	`16`	`25` mm	`214.77` mm	`195.29` mm	`4.7` kg
`21112017`	`17`	`25` mm	`226.83` mm	`207.35` mm	`5.3` kg
`21112018`	`18`	`25` mm	`238.89` mm	`219.41` mm	`6.0` kg
`21112020`	`20`	`25` mm	`263.03` mm	`243.55` mm	`7.7` kg
`21112025`	`25`	`25` mm	`323.47` mm	`303.99` mm	`12.02` kg
`21112030`	`30`	`30` mm	`383.97` mm	`364.49` mm	`17.5` kg
`21112032`	`32`	`30` mm	`408.19` mm	`388.71` mm	`20.6` kg
`21112038`	`38`	`30` mm	`480.85` mm	`461.37` mm	`28.0` kg
`21112041`	`41`	`30` mm	`513.5` mm	`497.74` mm	`33.85` kg
`21112045`	`45`	`30` mm	`565.67` mm	`546.19` mm	`42.0` kg
`21112054`	`54`	`30` mm	`671` mm	`655.25` mm	`72.0` kg
`21112076`	`76`	`40` mm	`931` mm	`921.98` mm	`120.0` kg
