Chiaravalli

Platewheel ASA 35 Duplex

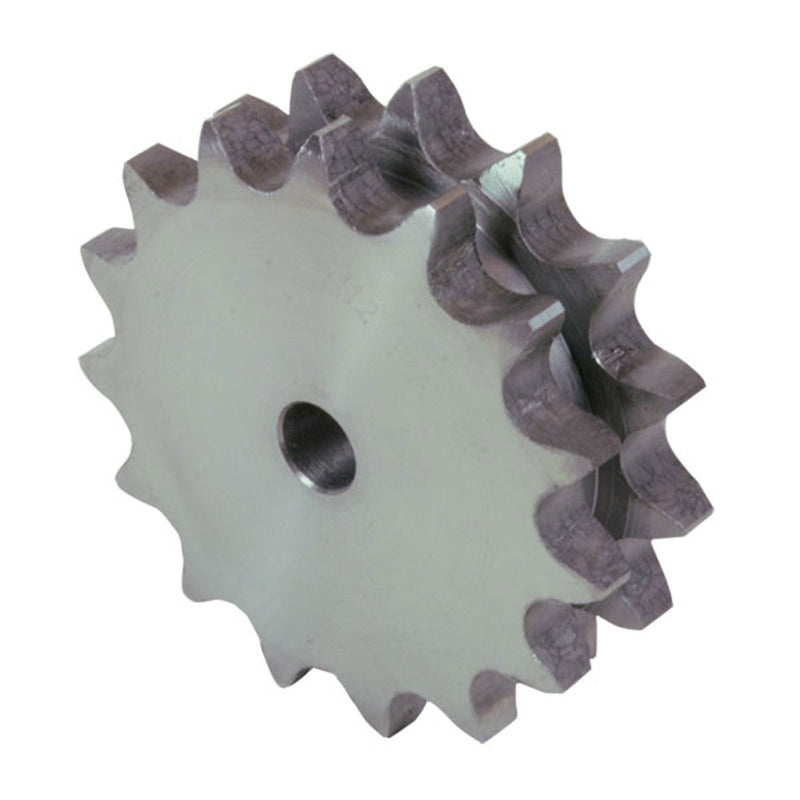

Name: Chiaravalli Platewheel ASA 35 Duplex
Brand: Chiaravalli

Duplex platewheel for ANSI 35-2 (ASA 35) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21203030`	`30`	`12` mm	`96` mm	`91.12` mm	`0.8` kg
`21203038`	`38`	`14` mm	`120.22` mm	`115.34` mm	`1.0` kg
`21203044`	`44`	`16` mm	`138.9` mm	`133.5` mm	`1.2` kg
`21203045`	`45`	`16` mm	`141.43` mm	`136.55` mm	`1.47` kg
`21203054`	`54`	`16` mm	`169.3` mm	`163.8` mm	`2.162` kg
`21203057`	`57`	`16` mm	`177.79` mm	`172.91` mm	`2.35` kg
`21203070`	`70`	`16` mm	`217.8` mm	`212.3` mm	`3.7` kg
`21203076`	`76`	`16` mm	`235.37` mm	`230.49` mm	`4.1` kg
