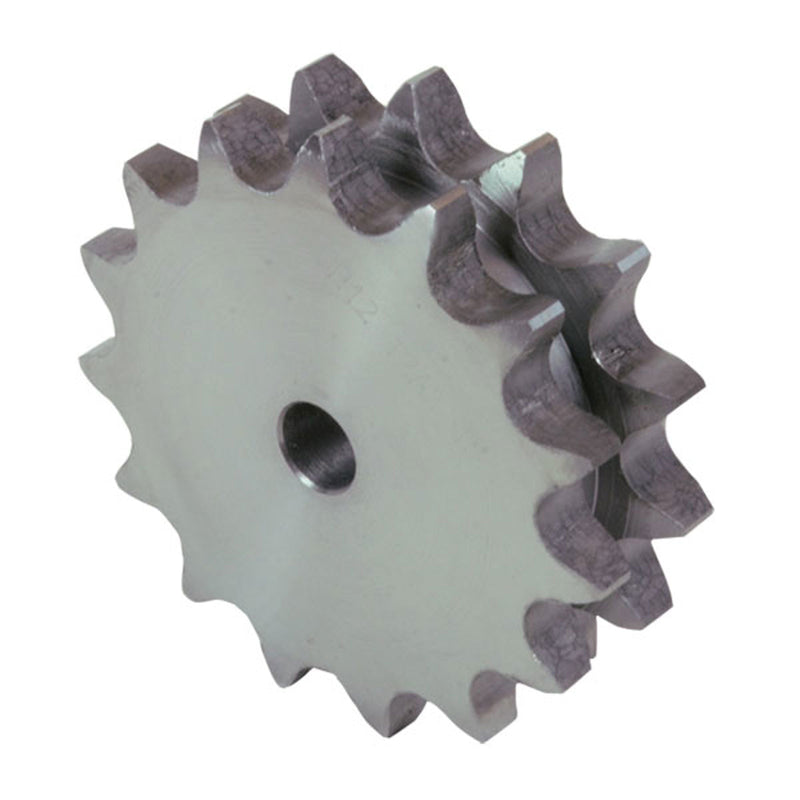

Platewheel ASA 40 Duplex

Duplex platewheel for ANSI 40-2 (ASA 40) roller chain.

  • Chain inner width: 7.94 mm
  • Chain roller Ø: 7.94 mm
  • Tooth radius r3: 13.5 mm
  • Radius width C: 1.6 mm
  • Plate tooth width b1: 7.2 mm
  • Plate tooth width B2: 21.6 mm

Product Configuration

Select a row to add it to your quote

Code ZD1dedp Weight CAD
21204012 12 10 mm 41.7 mm 36.8 mm 0.21 kg
21204036 36 20 mm 152.28 mm 145.7 mm 2.3 kg
21204038 38 20 mm 160.4 mm 153.79 mm 2.78 kg
21204040 40 20 mm 168.43 mm 161.87 mm 3.0 kg
21204044 44 20 mm 185.19 mm 178 mm 3.6 kg
21204045 45 20 mm 188.62 mm 181.95 mm 3.9 kg
21204050 50 20 mm 209.48 mm 202.3 mm 4.98 kg
21204057 57 25 mm 237.1 mm 230.54 mm 5.45 kg
21204076 76 25 mm 313.9 mm 307.32 mm 12.0 kg
21204095 95 25 mm 390.67 mm 384.11 mm 22.4 kg
21204114 114 25 mm 467.4 mm 461 mm 31.85 kg

Product Information

Material
FE / C45
Standard
DIN 8188 - ISO/R 606 - ANSI B 29.1
Chain Type
ANSI 40-2
Pitch
12.7 mm
