Chiaravalli

Platewheel ASA 40 Simplex

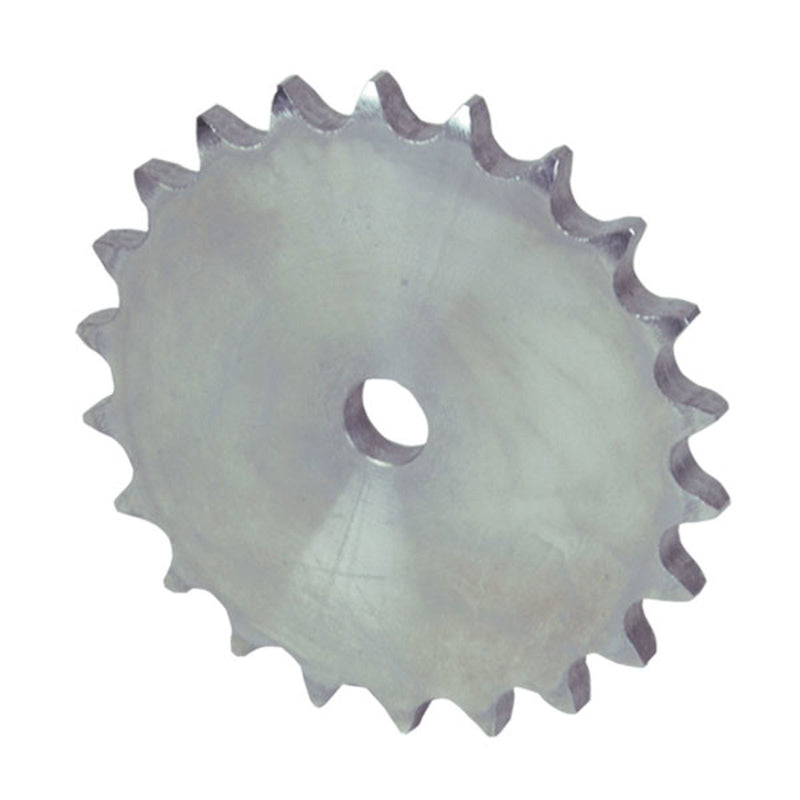

Name: Chiaravalli Platewheel ASA 40 Simplex
Brand: Chiaravalli

Simplex platewheel for ANSI 40-1 (ASA 40) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21104008`	`8`	`8` mm	`38` mm	`33` mm	`0.035` kg
`21104013`	`13`	`10` mm	`59.63` mm	`52.68` mm	`0.102` kg
`21104020`	`20`	`12` mm	`87.7` mm	`81.2` mm	`0.26` kg
`21104022`	`22`	`12` mm	`95.8` mm	`89.24` mm	`0.315` kg
`21104023`	`23`	`12` mm	`99.85` mm	`93.05` mm	`0.34` kg
`21104025`	`25`	`14` mm	`107.88` mm	`101.34` mm	`0.4` kg
`21104026`	`26`	`14` mm	`111.94` mm	`105.36` mm	`0.5` kg
`21104033`	`33`	`16` mm	`140.62` mm	`133.4` mm	`0.73` kg
`21104036`	`36`	`16` mm	`152.28` mm	`145.72` mm	`0.88` kg
`21104037`	`37`	`16` mm	`156.3` mm	`149.8` mm	`1.045` kg
`21104038`	`38`	`16` mm	`160.4` mm	`153.79` mm	`1.08` kg
`21104041`	`41`	`20` mm	`173.04` mm	`165.91` mm	`1.146` kg
`21104042`	`42`	`20` mm	`176.5` mm	`169.94` mm	`1.2` kg
`21104044`	`44`	`20` mm	`185.19` mm	`178` mm	`1.325` kg
`21104045`	`45`	`20` mm	`188.62` mm	`181.95` mm	`1.39` kg
`21104048`	`48`	`20` mm	`200.7` mm	`194.18` mm	`1.588` kg
`21104050`	`50`	`20` mm	`209.48` mm	`202.3` mm	`1.727` kg
`21104054`	`54`	`20` mm	`226` mm	`219` mm	`2.024` kg
`21104057`	`57`	`20` mm	`237.1` mm	`230.54` mm	`2.21` kg
`21104072`	`72`	`20` mm	`298.5` mm	`290.2` mm	`3.63` kg
`21104076`	`76`	`20` mm	`313.9` mm	`307.32` mm	`4.1` kg
`21104080`	`80`	`20` mm	`331` mm	`324` mm	`4.489` kg
`21104085`	`85`	`20` mm	`350.2` mm	`343.7` mm	`5.095` kg
`21104095`	`95`	`20` mm	`390.7` mm	`384.11` mm	`6.387` kg
`21104114`	`114`	`20` mm	`465` mm	`461` mm	`9.24` kg
