Chiaravalli

Platewheel ASA 40 Triplex

Name: Chiaravalli Platewheel ASA 40 Triplex
Brand: Chiaravalli

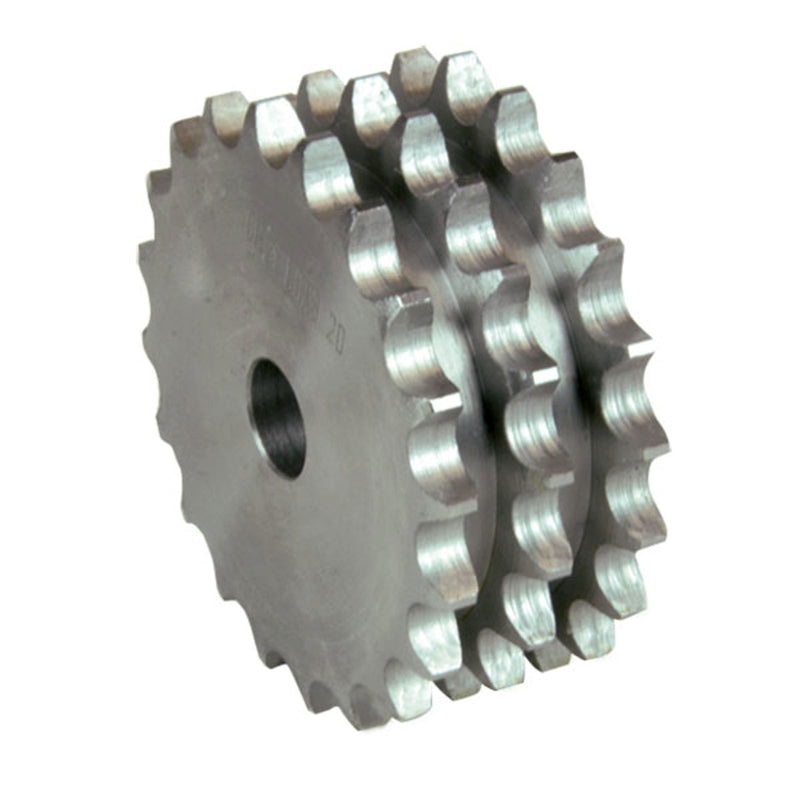

Triplex platewheel for ANSI 40-3 (ASA 40) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21304020`	`20`	`16` mm	`128.06` mm	`121.5` mm	`1.1` kg
`21304030`	`30`	`20` mm	`96` mm	`91.12` mm	`3.0` kg
`21304038`	`38`	`25` mm	`160.4` mm	`153.79` mm	`4.0` kg
`21304040`	`40`	`25` mm	`176.5` mm	`169.94` mm	`4.84` kg
`21304045`	`45`	`25` mm	`188.62` mm	`181.95` mm	`6.0` kg
`21304048`	`48`	`25` mm	`200.7` mm	`194.18` mm	`7.0` kg
`21304050`	`50`	`25` mm	`209.48` mm	`202.3` mm	`8.19` kg
`21304057`	`57`	`25` mm	`237.1` mm	`230.54` mm	`10.0` kg
`21304076`	`76`	`25` mm	`313.9` mm	`307.32` mm	`20.0` kg

Need help specifying this product?

Our technical team can help you specify the right component. Add it to your quote basket above, or contact us directly.
