Chiaravalli

Platewheel ASA 50 Duplex

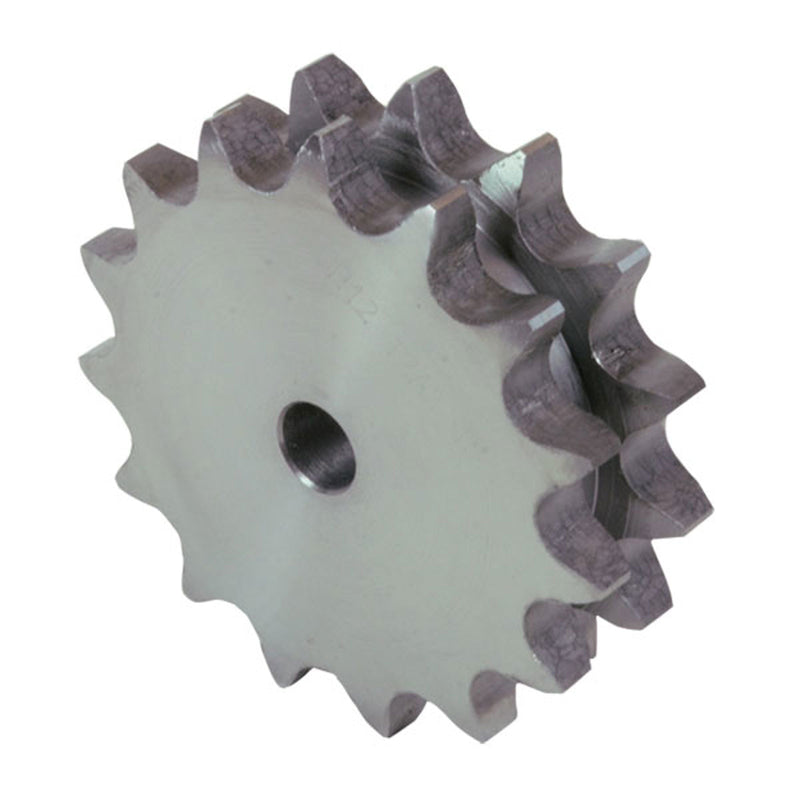

Name: Chiaravalli Platewheel ASA 50 Duplex
Brand: Chiaravalli

Duplex platewheel for ANSI 50-2 (ASA 50) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21205012`	`12`	`14` mm	`68` mm	`61.34` mm	`0.4` kg
`21205013`	`13`	`14` mm	`73` mm	`66.32` mm	`0.6` kg
`21205016`	`16`	`16` mm	`88` mm	`81.37` mm	`0.8` kg
`21205023`	`23`	`16` mm	`123.4` mm	`116.58` mm	`1.1` kg
`21205026`	`26`	`16` mm	`139` mm	`131.7` mm	`2.3` kg
`21205027`	`27`	`16` mm	`144` mm	`136.75` mm	`2.6` kg
`21205030`	`30`	`20` mm	`158.8` mm	`151.87` mm	`3.27` kg
`21205038`	`38`	`20` mm	`199.2` mm	`192.24` mm	`5.3` kg
`21205045`	`45`	`20` mm	`235` mm	`227.58` mm	`7.27` kg
`21205057`	`57`	`25` mm	`296` mm	`288.18` mm	`13.0` kg
`21205072`	`72`	`25` mm	`371.9` mm	`363.95` mm	`20.6` kg
`21205076`	`76`	`25` mm	`392.1` mm	`384.16` mm	`22.0` kg
