Chiaravalli

Platewheel ASA 50 Triplex

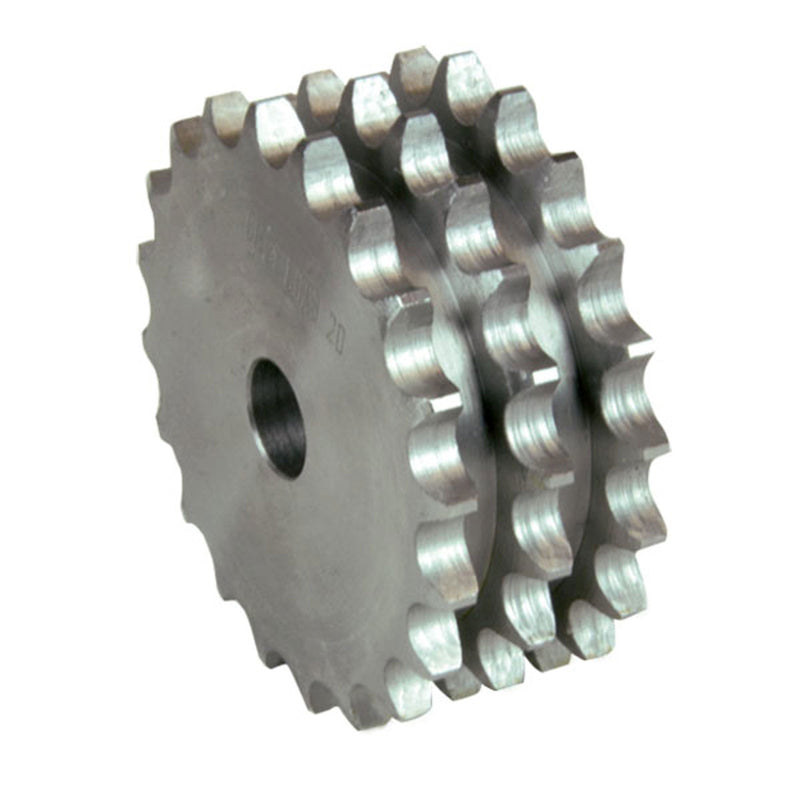

Name: Chiaravalli Platewheel ASA 50 Triplex
Brand: Chiaravalli

Triplex platewheel for ANSI 50-3 (ASA 50) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21305025`	`25`	`20` mm	`134` mm	`126.66` mm	`3.7` kg
`21305030`	`30`	`20` mm	`158.8` mm	`151.87` mm	`5.0` kg
`21305032`	`32`	`20` mm	`168.9` mm	`161.95` mm	`6.1` kg
`21305038`	`38`	`25` mm	`199.2` mm	`192.24` mm	`8.9` kg
`21305041`	`41`	`25` mm	`214.8` mm	`207.39` mm	`10.67` kg
`21305042`	`42`	`25` mm	`219.9` mm	`212.44` mm	`12.0` kg
`21305044`	`44`	`25` mm	`230` mm	`222.53` mm	`13.0` kg
`21305045`	`45`	`25` mm	`235` mm	`227.58` mm	`15.0` kg
`21305050`	`50`	`25` mm	`260.3` mm	`252.82` mm	`16.03` kg
`21305057`	`57`	`25` mm	`296` mm	`288.18` mm	`20.95` kg
`21305076`	`76`	`30` mm	`392.1` mm	`384.16` mm	`25.0` kg
