Chiaravalli

Platewheel ASA 60 Duplex

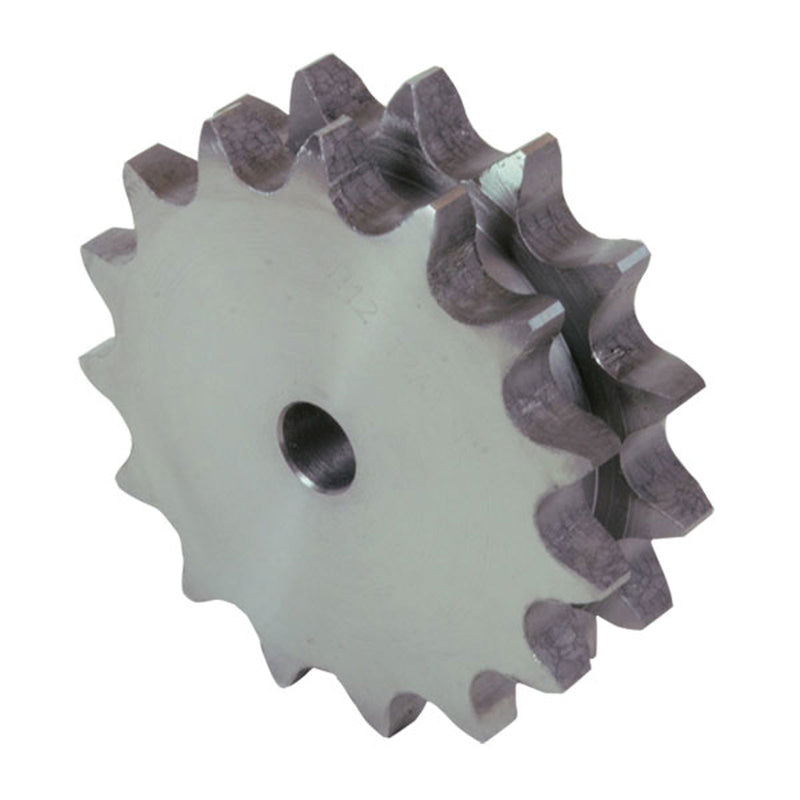

Name: Chiaravalli Platewheel ASA 60 Duplex
Brand: Chiaravalli

Duplex platewheel for ANSI 60-2 (ASA 60) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21206010`	`10`	`16` mm	`71.54` mm	`61.65` mm	`0.5` kg
`21206015`	`15`	`16` mm	`101.52` mm	`91.12` mm	`1.31` kg
`21206021`	`21`	`20` mm	`137.11` mm	`127.46` mm	`2.84` kg
`21206028`	`28`	`20` mm	`180.03` mm	`170.1` mm	`4.0` kg
`21206038`	`38`	`25` mm	`240.6` mm	`230.69` mm	`10.6` kg
`21206040`	`40`	`25` mm	`252.7` mm	`242.8` mm	`11.2` kg
`21206045`	`45`	`25` mm	`282.98` mm	`273.09` mm	`14.2` kg
`21206057`	`57`	`25` mm	`355.7` mm	`345.81` mm	`23.65` kg
`21206076`	`76`	`30` mm	`470.87` mm	`460.98` mm	`45.0` kg
`21206095`	`95`	`30` mm	`586.06` mm	`576.17` mm	`66.9` kg
