Chiaravalli

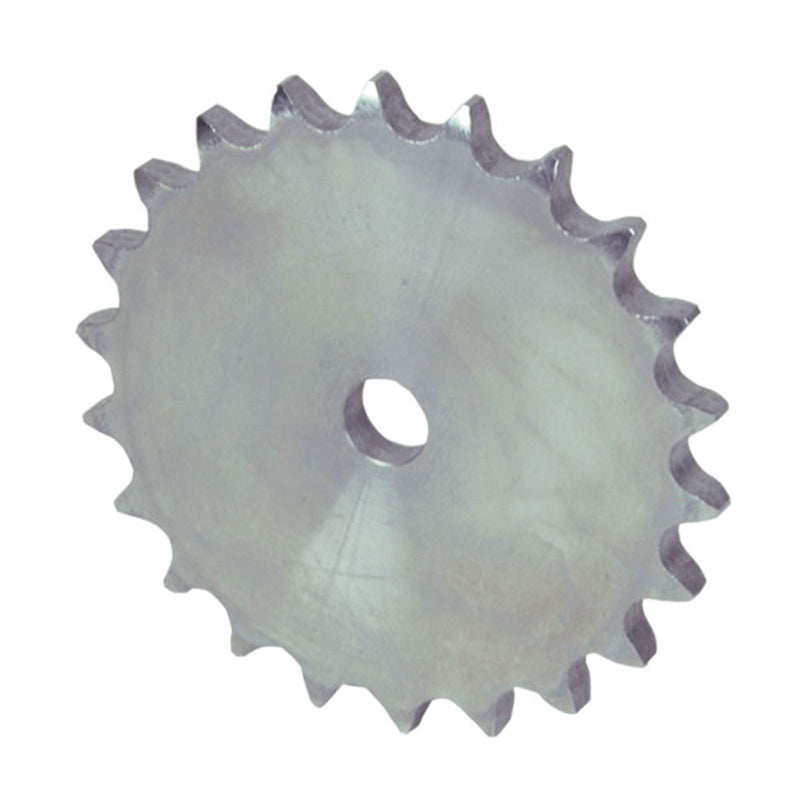

Platewheel ASA 60 Simplex

Name: Chiaravalli Platewheel ASA 60 Simplex
Brand: Chiaravalli

Simplex platewheel for ANSI 60-1 (ASA 60) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21106009`	`9`	`10` mm	`64` mm	`55` mm	`0.167` kg
`21106010`	`10`	`12` mm	`71.54` mm	`61.65` mm	`0.21` kg
`21106012`	`12`	`12` mm	`83.5` mm	`73.6` mm	`0.314` kg
`21106013`	`13`	`14` mm	`89.6` mm	`79.6` mm	`0.375` kg
`21106014`	`14`	`14` mm	`95.5` mm	`85.7` mm	`0.44` kg
`21106017`	`17`	`16` mm	`113.6` mm	`103.7` mm	`0.67` kg
`21106031`	`31`	`20` mm	`196.7` mm	`188.3` mm	`2.35` kg
`21106033`	`33`	`20` mm	`208.9` mm	`200.5` mm	`2.6` kg
`21106034`	`34`	`20` mm	`214.7` mm	`206.7` mm	`2.84` kg
`21106038`	`38`	`20` mm	`240.6` mm	`230.69` mm	`3.2` kg
`21106040`	`40`	`20` mm	`252.7` mm	`242.8` mm	`3.95` kg
`21106042`	`42`	`25` mm	`265` mm	`255` mm	`4.35` kg
`21106044`	`44`	`25` mm	`277.2` mm	`267.3` mm	`4.8` kg
`21106046`	`46`	`25` mm	`289.4` mm	`279.3` mm	`5.24` kg
`21106048`	`48`	`25` mm	`301.2` mm	`291.27` mm	`5.77` kg
`21106057`	`57`	`25` mm	`355.7` mm	`345.81` mm	`8.01` kg
`21106072`	`72`	`30` mm	`447` mm	`437` mm	`13.09` kg
`21106076`	`76`	`30` mm	`470.87` mm	`460.98` mm	`14.62` kg
