Chiaravalli

Platewheel ASA 60 Triplex

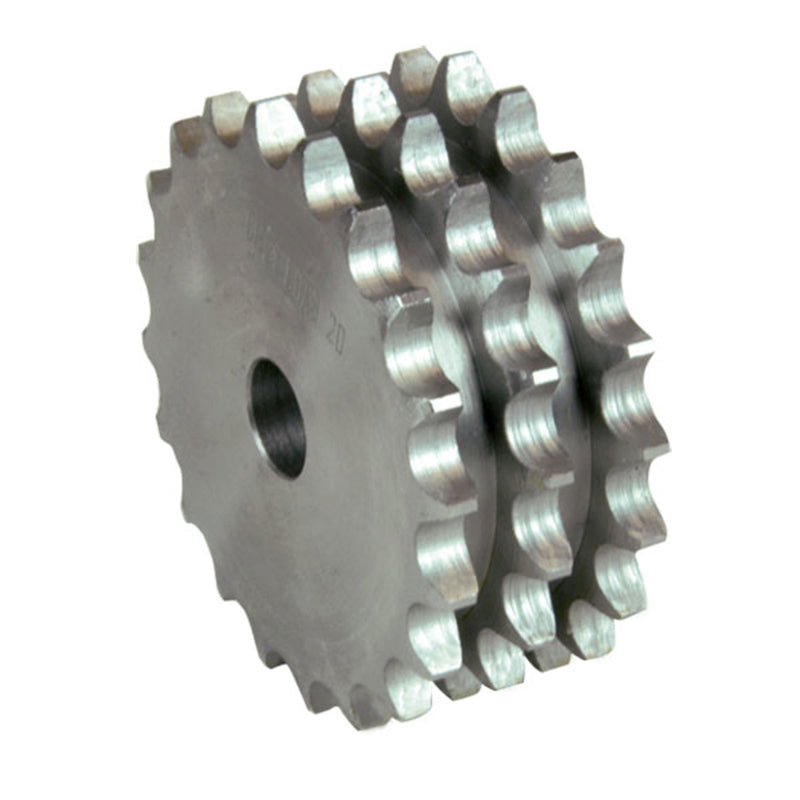

Name: Chiaravalli Platewheel ASA 60 Triplex
Brand: Chiaravalli

Triplex platewheel for ANSI 60-3 (ASA 60) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21306013`	`13`	`16` mm	`89.6` mm	`79.6` mm	`1.0` kg
`21306014`	`14`	`16` mm	`95.5` mm	`85.7` mm	`1.91` kg
`21306018`	`18`	`20` mm	`119.6` mm	`109.71` mm	`3.31` kg
`21306020`	`20`	`20` mm	`131.67` mm	`121.78` mm	`4.0` kg
`21306021`	`21`	`20` mm	`137.11` mm	`127.46` mm	`5.0` kg
`21306022`	`22`	`20` mm	`142.21` mm	`133.86` mm	`6.0` kg
`21306030`	`30`	`20` mm	`192.14` mm	`182.25` mm	`10.0` kg
`21306038`	`38`	`25` mm	`240.6` mm	`230.69` mm	`13.0` kg
`21306045`	`45`	`25` mm	`282.98` mm	`273.09` mm	`24.0` kg
`21306048`	`48`	`25` mm	`301.2` mm	`291.27` mm	`26.0` kg
`21306057`	`57`	`30` mm	`355.7` mm	`345.81` mm	`37.57` kg
`21306076`	`76`	`30` mm	`470.87` mm	`460.98` mm	`70.32` kg
