Chiaravalli

Platewheel ASA 80 Duplex

Name: Chiaravalli Platewheel ASA 80 Duplex
Brand: Chiaravalli

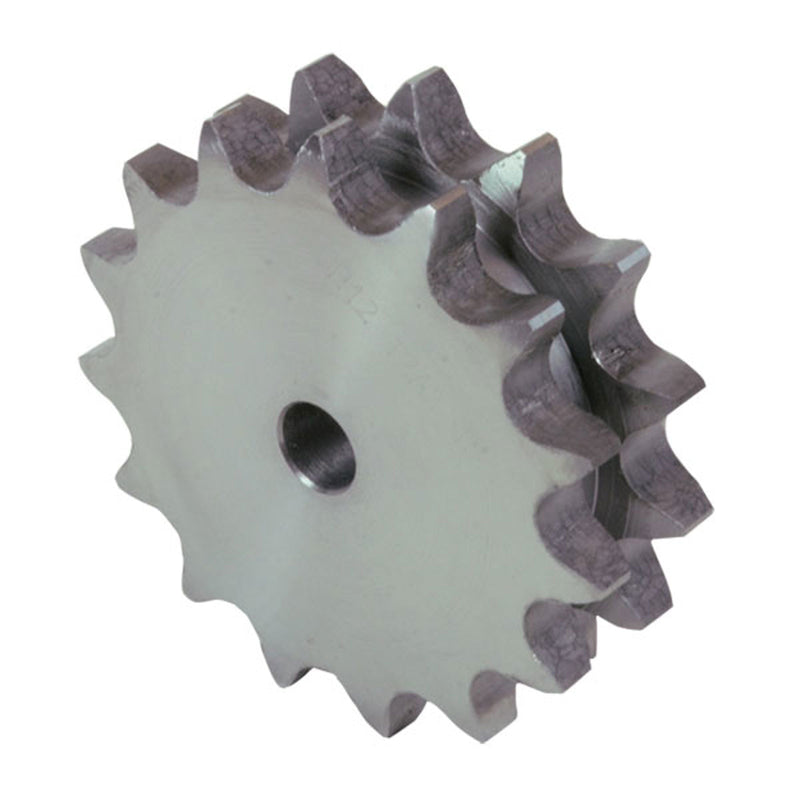

Duplex platewheel for ANSI 80-2 (ASA 80) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight	CAD
`21208013`	`13`	`20` mm	`119.26` mm	`106.12` mm	`2.0` kg
`21208014`	`14`	`20` mm	`127.27` mm	`114.15` mm	`2.59` kg
`21208015`	`15`	`20` mm	`135.29` mm	`122.17` mm	`3.5` kg
`21208025`	`25`	`25` mm	`215.78` mm	`202.66` mm	`9.2` kg
`21208030`	`30`	`25` mm	`256.12` mm	`243` mm	`13.85` kg
`21208032`	`32`	`25` mm	`272.26` mm	`259.13` mm	`15.8` kg
`21208034`	`34`	`25` mm	`286.9` mm	`275.28` mm	`17.0` kg
`21208038`	`38`	`25` mm	`320.7` mm	`307.59` mm	`22.77` kg
`21208045`	`45`	`25` mm	`377.24` mm	`364.12` mm	`32.5` kg
`21208048`	`48`	`25` mm	`402.1` mm	`388.36` mm	`38.0` kg
`21208057`	`57`	`25` mm	`474.2` mm	`461.08` mm	`52.75` kg
`21208076`	`76`	`25` mm	`627.8` mm	`614.64` mm	`90.0` kg
`21208090`	`90`	`30` mm	`741.6` mm	`727.81` mm	`135.0` kg	—
