Chiaravalli

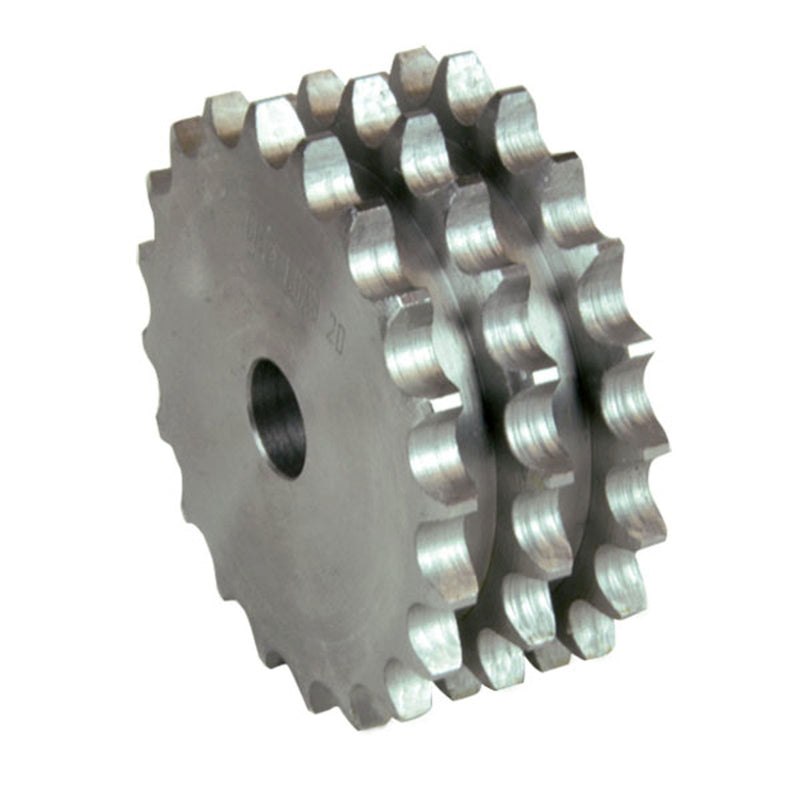

Platewheel ASA 80 Triplex

Name: Chiaravalli Platewheel ASA 80 Triplex
Brand: Chiaravalli

Triplex platewheel for ANSI 80-3 (ASA 80) roller chain.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`21308015`	`15`	`25` mm	`135.3` mm	`122.17` mm	`4.9` kg
`21308025`	`25`	`30` mm	`215.8` mm	`202.66` mm	`15.2` kg
`21308026`	`26`	`30` mm	`223.8` mm	`210.72` mm	`16.0` kg
`21308027`	`27`	`30` mm	`231.9` mm	`218.79` mm	`18.0` kg
`21308030`	`30`	`30` mm	`256.1` mm	`243` mm	`27.63` kg
`21308038`	`38`	`30` mm	`320.7` mm	`307.59` mm	`37.7` kg
`21308040`	`40`	`30` mm	`335.3` mm	`323.73` mm	`41.8` kg
`21308045`	`45`	`30` mm	`377.24` mm	`364.12` mm	`53.63` kg
`21308057`	`57`	`40` mm	`474.2` mm	`461.08` mm	`80.0` kg
`21308076`	`76`	`40` mm	`627.8` mm	`614.64` mm	`160.0` kg
