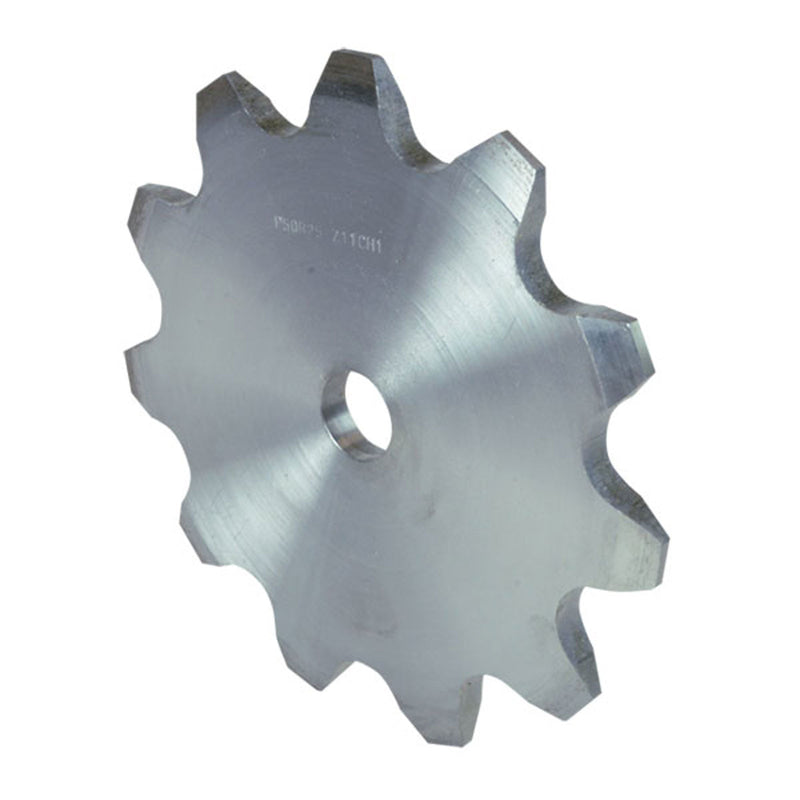

Platewheel for Conveyor and Elevator Chains P100 — Roller 31

Name: Chiaravalli Platewheel for Conveyor and Elevator Chains P100 — Roller 31
Brand: Chiaravalli

Simplex platewheel for P100 conveyor and elevator chain with Ø 31 mm rollers.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight	CAD
`24993108`	`8`	`30` mm	`282.9` mm	`261.31` mm	`4.92` kg
`24993109`	`9`	`30` mm	`314.1` mm	`292.4` mm	`6.03` kg
`24993110`	`10`	`30` mm	`345.4` mm	`323.61` mm	`8.0` kg
`24993111`	`11`	`30` mm	`376.7` mm	`354.95` mm	`9.04` kg
`24993112`	`12`	`30` mm	`408.1` mm	`386.4` mm	`10.75` kg
`24993113`	`13`	`30` mm	`439.6` mm	`417.9` mm	`16.0` kg
`24993114`	`14`	`30` mm	`471.1` mm	`449.4` mm	`17.0` kg
`24993115`	`15`	`30` mm	`502.6` mm	`480.9` mm	`19.0` kg
`24993116`	`16`	`30` mm	`534.3` mm	`512.6` mm	`21.8` kg
`24993117`	`17`	`30` mm	`565.8` mm	`544.1` mm	`24.77` kg
`24993118`	`18`	`30` mm	`597.6` mm	`575.9` mm	`26.43` kg	—
