Chiaravalli

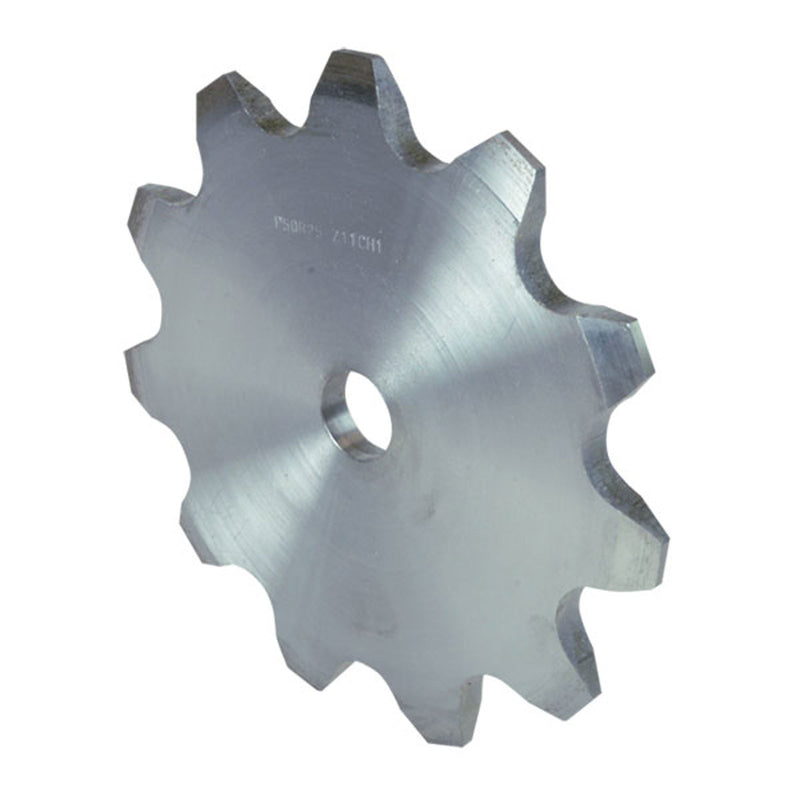

Platewheel for Conveyor and Elevator Chains P100 — Roller 40

Name: Chiaravalli Platewheel for Conveyor and Elevator Chains P100 — Roller 40
Brand: Chiaravalli

Simplex platewheel for P100 conveyor and elevator chain with Ø 40 mm rollers.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight
`24994008`	`8`	`30` mm	`282.9` mm	`261.31` mm	`7.14` kg
`24994009`	`9`	`30` mm	`314.1` mm	`292.4` mm	`10.03` kg
`24994010`	`10`	`30` mm	`345.4` mm	`323.61` mm	`11.95` kg
`24994011`	`11`	`30` mm	`376.7` mm	`354.95` mm	`15.02` kg
`24994012`	`12`	`30` mm	`408.1` mm	`386.4` mm	`17.27` kg
`24994014`	`14`	`30` mm	`471.1` mm	`449.4` mm	`24.6` kg
`24994016`	`16`	`30` mm	`534.3` mm	`512.6` mm	`27.99` kg
`24994020`	`20`	`30` mm	`663` mm	`639.2` mm	`42.62` kg
