Chiaravalli

Platewheel for Conveyor and Elevator Chains P50 — Roller 25

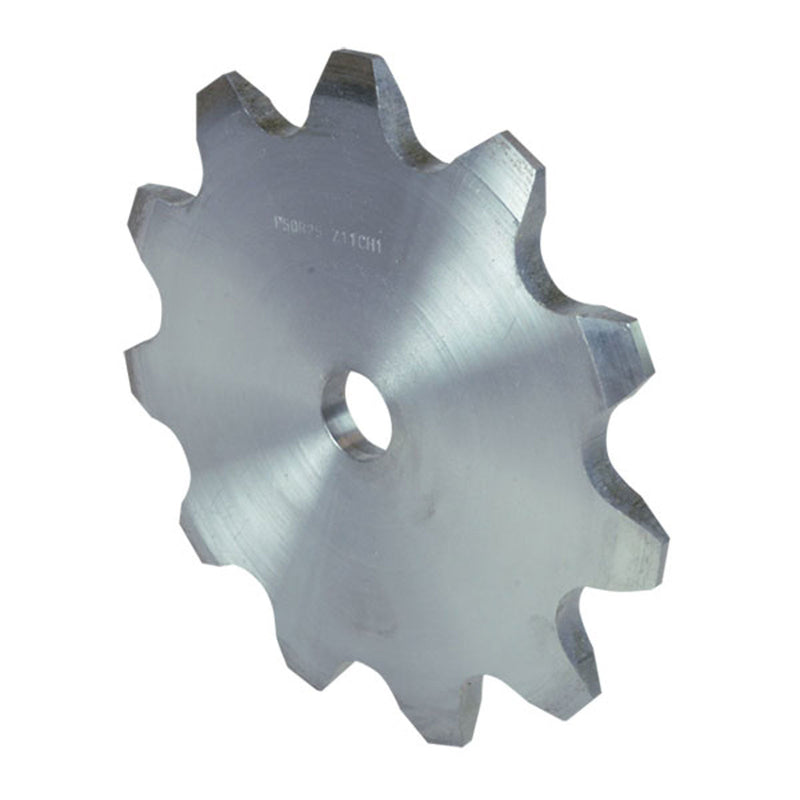

Name: Chiaravalli Platewheel for Conveyor and Elevator Chains P50 — Roller 25
Brand: Chiaravalli

Simplex platewheel for P50 conveyor and elevator chain with Ø 25 mm rollers.

Select a row to add it to your quote

Teeth

Code	Z	D1	de	dp	Weight	CAD
`24502506`	`6`	`20` mm	`115` mm	`100` mm	`0.55` kg
`24502507`	`7`	`20` mm	`132.7` mm	`115.24` mm	`0.76` kg
`24502508`	`8`	`20` mm	`148.1` mm	`130.6` mm	`0.92` kg
`24502509`	`9`	`20` mm	`163.7` mm	`146.2` mm	`1.3` kg
`24502510`	`10`	`25` mm	`179.3` mm	`161.85` mm	`1.45` kg
`24502511`	`11`	`25` mm	`195` mm	`177.5` mm	`1.94` kg
`24502512`	`12`	`25` mm	`211` mm	`193.2` mm	`2.01` kg
`24502513`	`13`	`30` mm	`226.4` mm	`208.95` mm	`2.33` kg
`24502514`	`14`	`30` mm	`242.2` mm	`224.7` mm	`3.06` kg	—
`24502515`	`15`	`30` mm	`257.9` mm	`240.45` mm	`3.8` kg
`24502516`	`16`	`30` mm	`273.8` mm	`256.3` mm	`4.0` kg
`24502517`	`17`	`30` mm	`289.5` mm	`272.05` mm	`4.2` kg
`24502518`	`18`	`30` mm	`305.4` mm	`287.95` mm	`5.1` kg
`24502519`	`19`	`30` mm	`321.3` mm	`303.8` mm	`6.0` kg
`24502520`	`20`	`30` mm	`337.1` mm	`319.6` mm	`6.45` kg
`24502521`	`21`	`30` mm	`352.9` mm	`335.45` mm	`6.89` kg
`24502524`	`24`	`30` mm	`400` mm	`383.05` mm	`9.07` kg
`24502525`	`25`	`30` mm	`416.4` mm	`398.95` mm	`9.97` kg
`24502526`	`26`	`30` mm	`432.3` mm	`414.8` mm	`12.06` kg
`24502527`	`27`	`30` mm	`448.2` mm	`430.7` mm	`12.88` kg
`24502528`	`28`	`30` mm	`464` mm	`446.55` mm	`13.83` kg
`24502530`	`30`	`30` mm	`495.8` mm	`478.35` mm	`14.32` kg
`24502538`	`38`	`30` mm	`622.9` mm	`605.45` mm	`21.5` kg
